Description
Product Features
Streamlined And Durable
With a sleek and lightweight design, the R11L stands at a mere 20mm (0.79″) thickness and weighs just 1.2kg (2.65lb), positioning itself as the most compact tablet in the fully-rugged class worldwide. The tablet’s smooth and streamlined exterior not only enhances its rugged image but also adds an extra touch of appeal.
Outstanding Capabilities
The R11L showcases remarkable performance driven by the Intel® Pentium® Gold Processor 8505 paired with Intel® UHD graphics. This ensures top-notch performance and visual excellence for professionals working in the field. Moreover, the R11L guarantees consistently seamless processing through the rapid data transmission capabilities of Thunderbolt™ 4, Intel® Wi-Fi 6E, and Bluetooth® V5.3.
A Dazzling Touch Presence
Crafted for resilience in diverse conditions, the R11L thrives in challenging environments such as rain, cold, and sunlight. The tablet’s 11.6” FHD (1920 x 1080) LCD, powered by Durabook’s DynaVue® technology, delivers exceptional screen clarity in daylight. The R11L also incorporates a 10-point capacitive multi-touch panel with four advanced touch modes, accommodating stylus and glove usage in any working conditions.
Flexible Data Acquisition
Featuring a range of integrated data-capture modules, the R11L ensures versatile ways to collect and send information during mobile operations. Additional enhancements, such as a barcode reader, RFID reader, smart card reader, serial port, and RJ-45 port, can be optionally integrated.
Standard features on this adaptable tablet include a 2MP front camera, 8MP rear camera, Wi-Fi 6E, and Bluetooth® V5.3.
Designed for Prolonged Durability
Designed for toughness, the R11L tablet empowers field operatives to carry out their tasks with confidence, even in the toughest environments and temperatures.
Drop-tested at 4 feet and certified to meet MIL-STD-810H and MIL-STD-461F standards, the R11L also offers optional ANSI C1D2 certification and an IP66 rating, providing robust protection against dust, dirt, and water ingress, making it a trusted performer.
Enduring Battery Performance
Continuous battery performance is crucial to maintain productivity for professional operatives in the field. The R11L addresses this need by offering an optional high-capacity battery that can deliver up to 15 hours of usage without the need for a recharge.
Streamlined And Durable
With a sleek and lightweight design, the R11L stands at a mere 20mm (0.79″) thickness and weighs just 1.2kg (2.65lb), positioning itself as the most compact tablet in the fully-rugged class worldwide. The tablet’s smooth and streamlined exterior not only enhances its rugged image but also adds an extra touch of appeal.
Outstanding Capabilities
The R11L showcases remarkable performance driven by the Intel® Pentium® Gold Processor 8505 paired with Intel® UHD graphics. This ensures top-notch performance and visual excellence for professionals working in the field. Moreover, the R11L guarantees consistently seamless processing through the rapid data transmission capabilities of Thunderbolt™ 4, Intel® Wi-Fi 6E, and Bluetooth® V5.3.
A Dazzling Touch Presence
Crafted for resilience in diverse conditions, the R11L thrives in challenging environments such as rain, cold, and sunlight. The tablet’s 11.6” FHD (1920 x 1080) LCD, powered by Durabook’s DynaVue® technology, delivers exceptional screen clarity in daylight. The R11L also incorporates a 10-point capacitive multi-touch panel with four advanced touch modes, accommodating stylus and glove usage in any working conditions.
Flexible Data Acquisition
Featuring a range of integrated data-capture modules, the R11L ensures versatile ways to collect and send information during mobile operations. Additional enhancements, such as a barcode reader, RFID reader, smart card reader, serial port, and RJ-45 port, can be optionally integrated.
Standard features on this adaptable tablet include a 2MP front camera, 8MP rear camera, Wi-Fi 6E, and Bluetooth® V5.3.
Designed for Prolonged Durability
Designed for toughness, the R11L tablet empowers field operatives to carry out their tasks with confidence, even in the toughest environments and temperatures.
Drop-tested at 4 feet and certified to meet MIL-STD-810H and MIL-STD-461F standards, the R11L also offers optional ANSI C1D2 certification and an IP66 rating, providing robust protection against dust, dirt, and water ingress, making it a trusted performer.
Enduring Battery Performance
Continuous battery performance is crucial to maintain productivity for professional operatives in the field. The R11L addresses this need by offering an optional high-capacity battery that can deliver up to 15 hours of usage without the need for a recharge.
Tech Specifications
Rugged Specs
MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)
MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
Optional ANSI/UL 121201, Class I, Division 2
4′ drop 26 faces
IP 66 certified
Aluminum-magnesium alloy chassis
Port covers
Optional sunlight readable display
Tech Specs
Display
11.6” FHD (1920 x 1080)
Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Operating System
- Windows® 11 Pro 64-bit
Processor
- Intel® Pentium® Gold Processor 8505 (12MB Cache, up to 4.4 GHz, 1P+4E cores)
Memory
- 1 slot 8GB (4800MHz DDR5)
Storage
- 128GB NVMe PCIe SSD
Graphics
- Intel® UHD Graphics

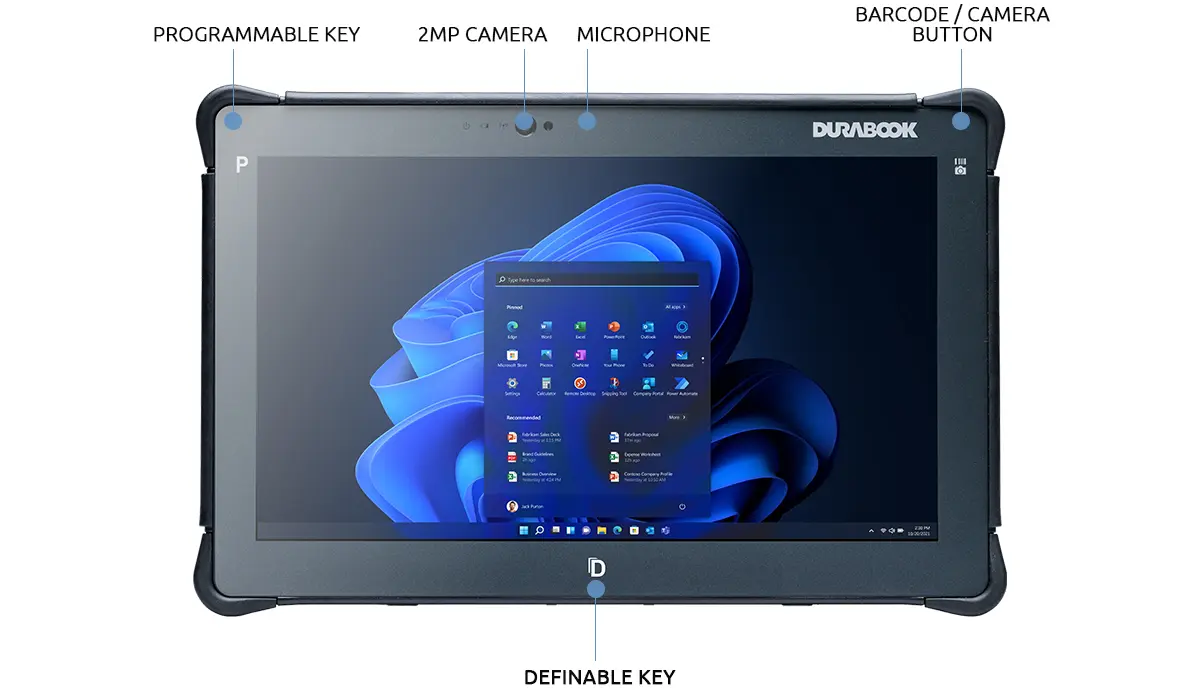

Camera
Integrated 2.0 MP front-facing camera

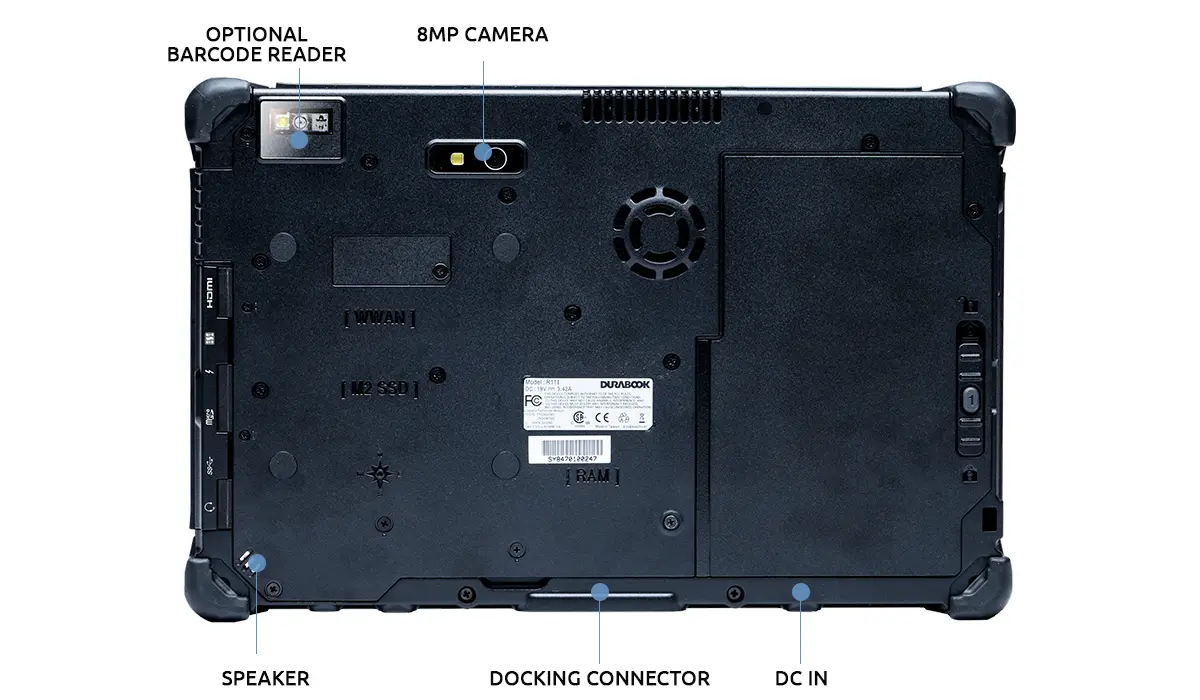

Optional 8.0 MP auto-focus rear camera with flash
Keyboard & Input
- 6 buttons (2 user-definable keys)
Audio
Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 1

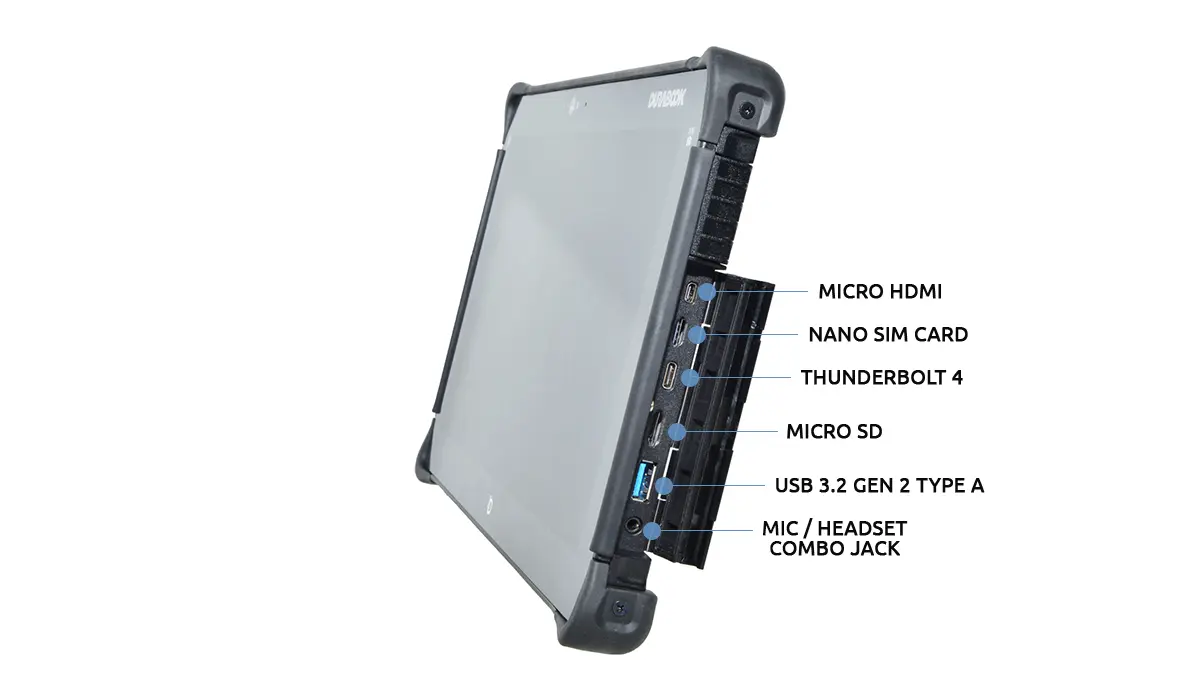

I/O Ports
Thunderbolt 4 x 1
USB 3.2 Gen2 (type A) x 1
Micro HDMI x 1
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
Docking connector (35-pin Pogo) x 1
Nano SIM card x 1
DC-In jack x 1
Optional 10/100/1000 Ethernet (RJ45) x 12
Optional smart card reader x 12
Optional 1D/2D barcode reader x 12
Optional RF antenna pass-through for GPS, WWAN and WLAN1
Expansion Slots
- Optional RJ-45 x 1 or HF-RFID (NFC) or smart card reader or MSR+smart card reader or RJ-45/RS-232/smart card reader2
Wireless & Communications
Intel® Wi-Fi 6E AX211 (802.11 ax)
Bluetooth® V5.3
Optional dedicated GPS module (UBLOX-NEO-M8N)1
Optional GPS and 4G LTE multi-carrier mobile broadband1
Optional RF antenna pass-through for GPS and WWAN1
Security
TPM 2.0
NIST BIOS compliant
Stealth mode

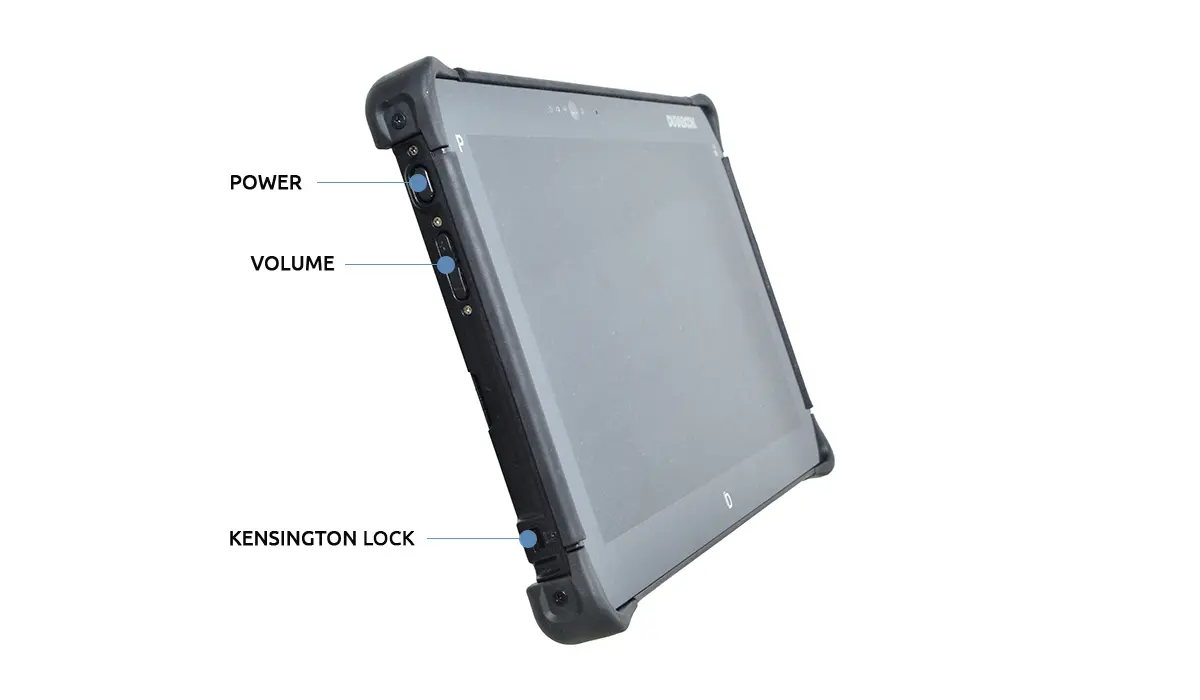

Kensington lock
Optional night vision mode4
Optional smart card reader2
Optional HF-RFID (NFC) reader2
Power
AC adapter : 100-240V, 50Hz-60Hz, 65W
Main battery Li-Ion, 11.1V, 3950mAh, 8.5 hours3
Optional long life battery Li-Ion 11.1V, 6900mAh, 15 hours3
Dimension & Weight
299 mm (L) x 192 mm (W) x 20 mm (H)
1.2 kg
Warranty
- 3-year limited warranty standard
- GPS/WWAN and dedicated GPS are mutually exclusive.
- Mutually exclusive options.
- Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
- Night vision mode is available only for sunlight readable display.
Rugged Specs
MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)
MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
Optional ANSI/UL 121201, Class I, Division 2
4′ drop 26 faces
IP 66 certified
Aluminum-magnesium alloy chassis
Port covers
Optional sunlight readable display
Tech Specs
Display
11.6” FHD (1920 x 1080)
Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Operating System
- Windows® 11 Pro 64-bit
Processor
- Intel® Pentium® Gold Processor 8505 (12MB Cache, up to 4.4 GHz, 1P+4E cores)
Memory
- 1 slot 8GB (4800MHz DDR5)
Storage
- 128GB NVMe PCIe SSD
Graphics
- Intel® UHD Graphics
Camera
Integrated 2.0 MP front-facing camera
Optional 8.0 MP auto-focus rear camera with flash
Audio
Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 1
I/O Ports
Thunderbolt 4 x 1
USB 3.2 Gen2 (type A) x 1
Micro HDMI x 1
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
Docking connector (35-pin Pogo) x 1
Nano SIM card x 1
DC-In jack x 1
Optional 10/100/1000 Ethernet (RJ45) x 12
Optional smart card reader x 12
Optional 1D/2D barcode reader x 12
Optional RF antenna pass-through for GPS, WWAN and WLAN1
Expansion Slots
- Optional RJ-45 x 1 or HF-RFID (NFC) or smart card reader or MSR+smart card reader or RJ-45/RS-232/smart card reader2
Keyboard & Input
- 6 buttons (2 user-definable keys)
Wireless & Communications
Intel® Wi-Fi 6E AX211 (802.11 ax)
Bluetooth® V5.3
Optional dedicated GPS module (UBLOX-NEO-M8N)1
Optional GPS and 4G LTE multi-carrier mobile broadband1
Optional RF antenna pass-through for GPS and WWAN1
Security
TPM 2.0
NIST BIOS compliant
Stealth mode
Kensington lock
Optional night vision mode4
Optional smart card reader2
Optional HF-RFID (NFC) reader2
Power
AC adapter : 100-240V, 50Hz-60Hz, 65W
Main battery Li-Ion, 11.1V, 3950mAh, 8.5 hours3
Optional long life battery Li-Ion 11.1V, 6900mAh, 15 hours3
Dimension & Weight
299 mm (L) x 192 mm (W) x 20 mm (H)
1.2 kg
Warranty
3-year limited warranty standard
- GPS/WWAN and dedicated GPS are mutually exclusive.
- Mutually exclusive options.
- Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
- Night vision mode is available only for sunlight readable display.
What's In the box?
Delivery Includes
- R11L Rugged Windows Tablet
- Li-Ion Battery (SC: 3950 mAh / HC: 6900 mAh)
- AC Adapter
- EU/UK Power Cord
- Stylus and Tether
- Hand Strap
- Documentation
Delivery Includes
- R11 Rugged Windows Tablet
- Li-Ion Battery (SC: 3950 mAh / HC: 6900 mAh)
- AC Adapter
- EU/UK Power Cord
- Stylus and Tether
- Hand Strap
- Documentation
