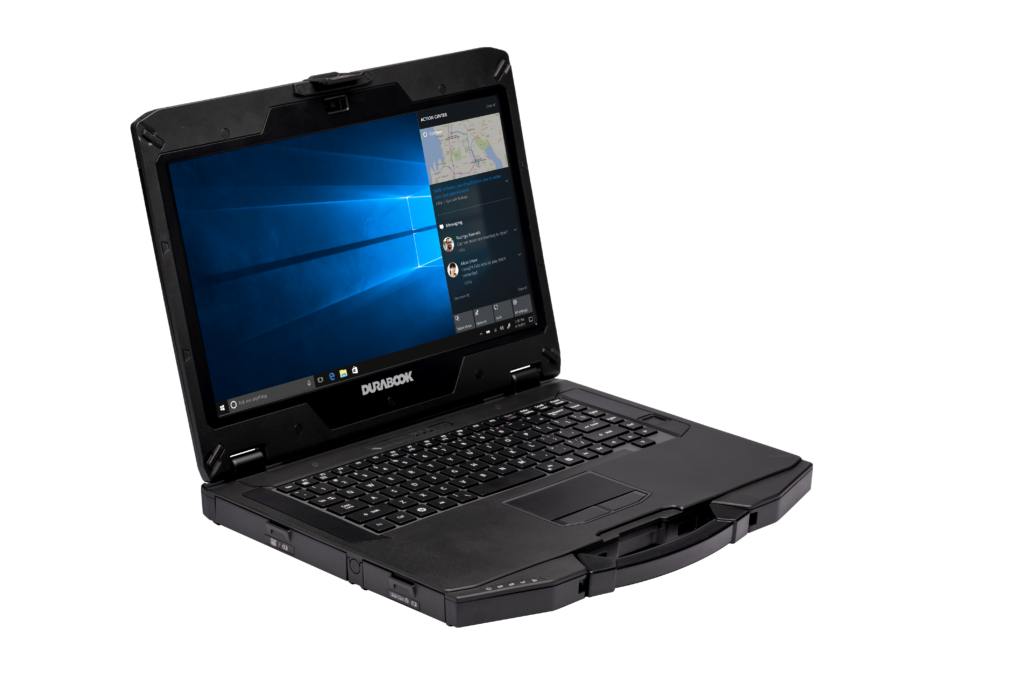

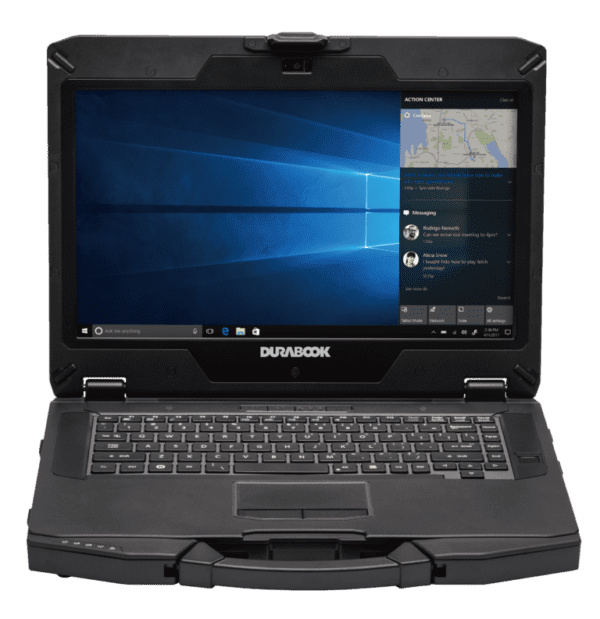

Durabook S14I
Introducing the Durabook S14I, a game-changer in the realm of semi-rugged devices. It redefines the standards of semi-rugged laptops with its advanced 11th Generation Intel® CPUs, a leading 4-foot drop specification along with an IP53 rating. If you’re looking for military-grade resilience, the S14I is crafted to offer excellent functionality needed by field workers, delivering exceptional computing power and extended battery life for continuous use. It’s the ideal choice for environments where exposure to rain or dust is common, ensuring unparalleled reliability and performance in challenging work settings.
Key Features:

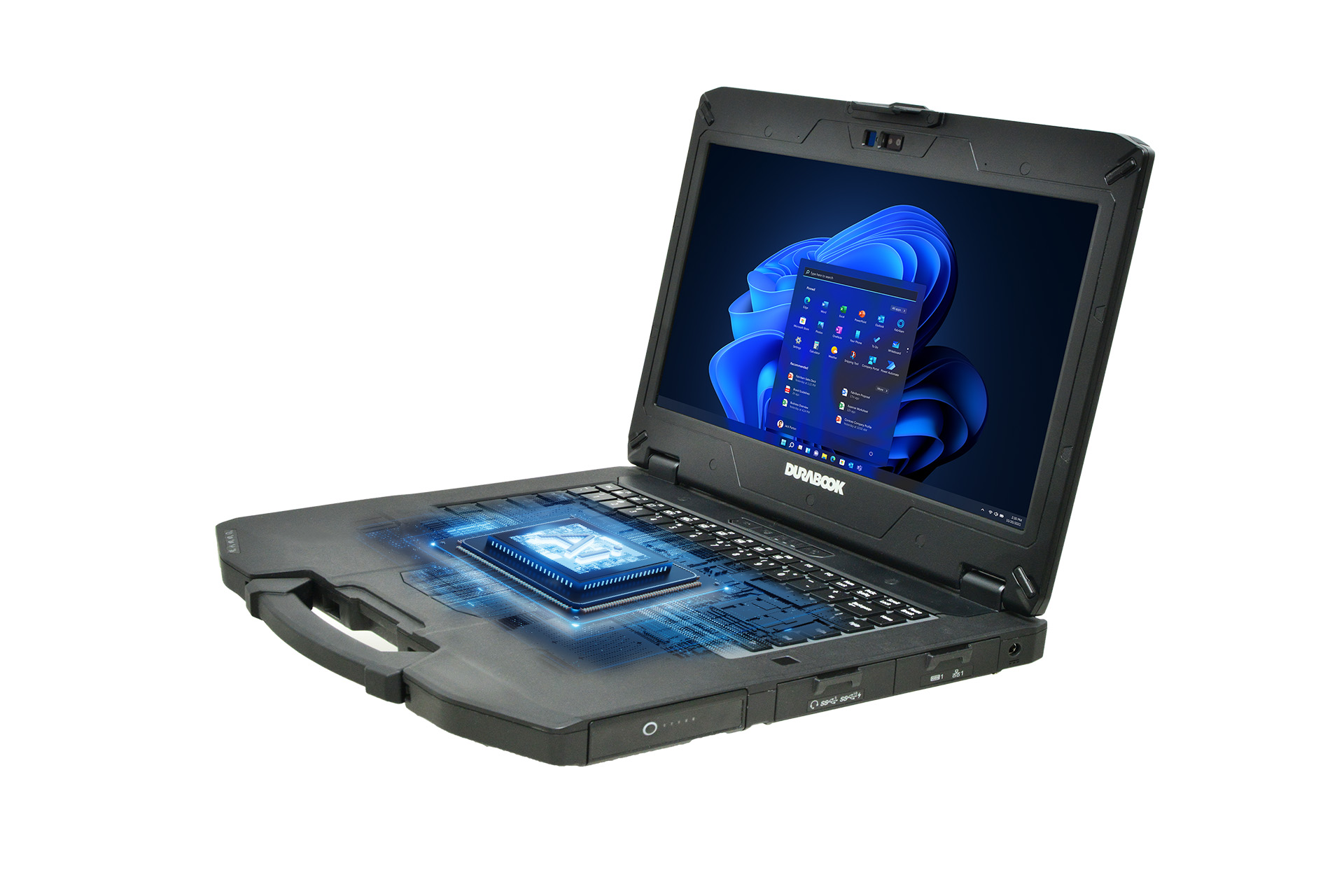

The S14I features a significant CPU upgrade with Intel® Tiger Lake 11th generation platform, using Intel’s 10nm processor technology. This device comes with integrated Intel® Iris Xe graphics, and for professionals who use intensive graphic computing, it can be upgraded to an optional standalone NVIDIA GeForce® GTX1050.
With the ultra-high-speed data transmission capability of Intel® Wi-Fi 6 AX201 with max. speed of 2.4Gbps and Bluetooth® V5.2, all information is instantly synced and fed back to the data control center.

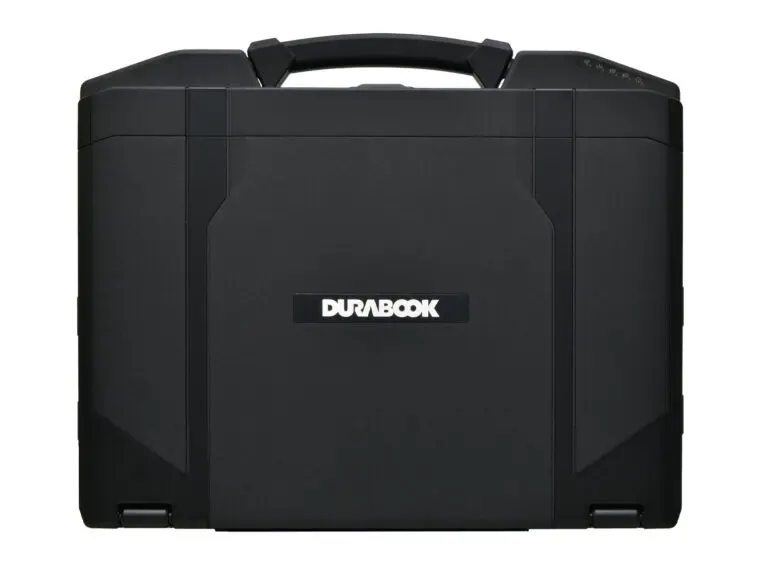

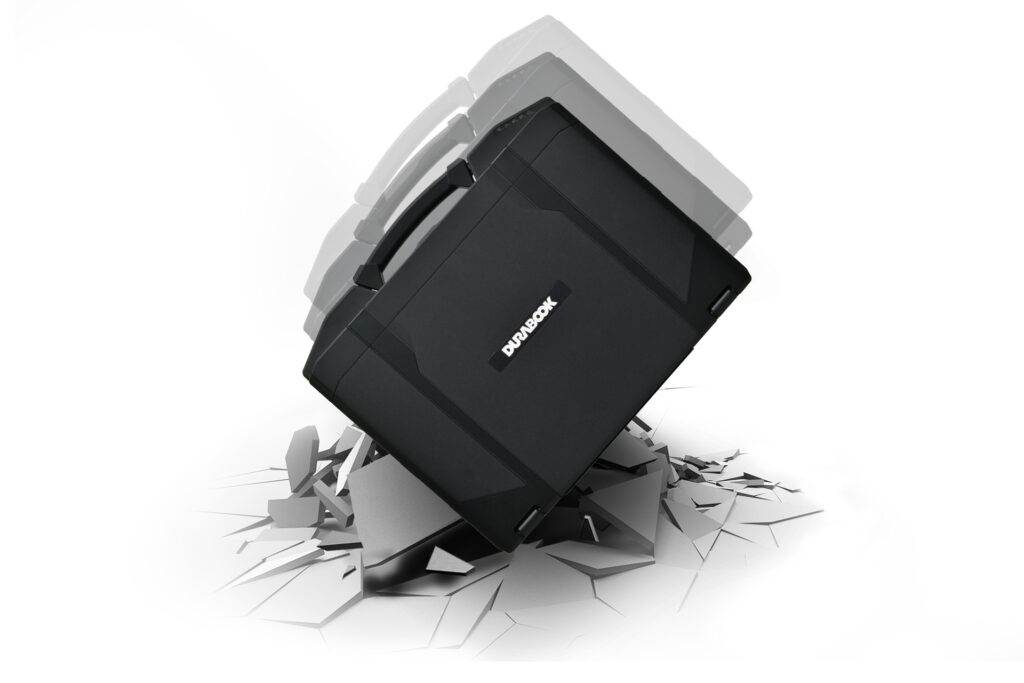

The S14I is built with a robust mechanical design and rigorously tested components. It meets the standards of MIL-STD-810H; withstands up to a 4-foot drop; and boasts an IP53 rating. This tough yet elegant rugged laptop breaches the boundary between semi-rugged and fully-rugged devices.
It now includes Windows Hello encrypted biometrics, a more secure, user-friendly and faster way of accessing the Window® 10 OS.
S14I is equipped with the latest NVMe PCIe SSD technology, providing up to 1TB of storage, while its PCIe offers speeds 4x faster than SATA III.
Furthermore, S14I can accommodate two more internal SSD SATA III drives to maximize the onboard storage.

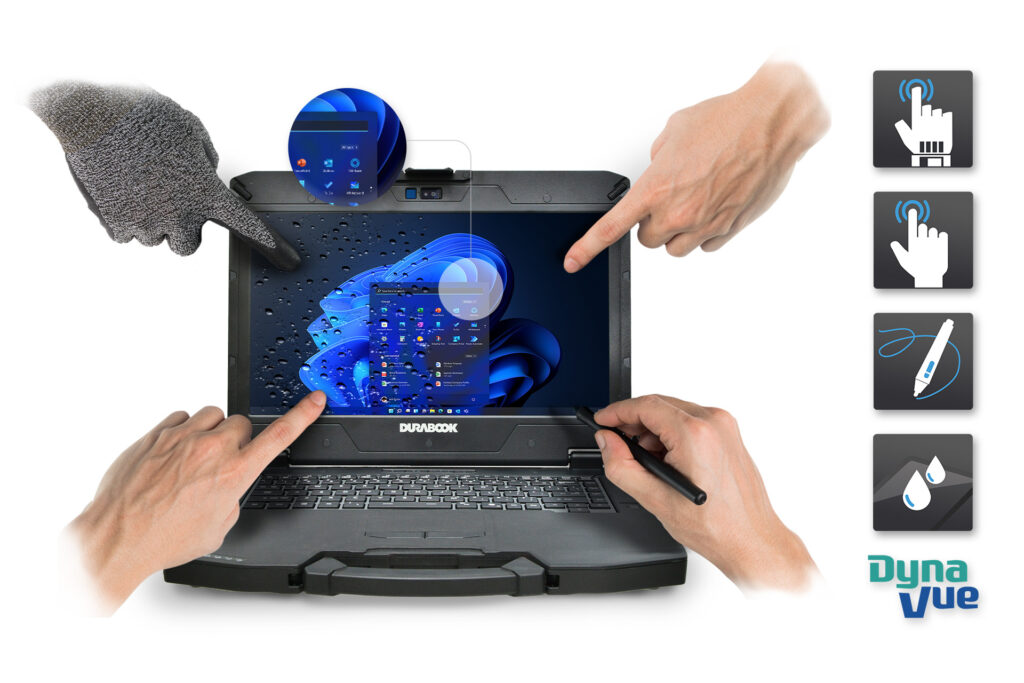

The S14I sports a Full HD 1080p display and proprietary DynaVue® technology. With brightness enhanced up to 1,000 nits and light-filtering technology providing a high contrast ratio (CR) to eliminate reflection, every detail of imagery is delivered with the utmost clarity. The 10-point capacitive multi-touch panel has four Touch Modes (Glove, Stylus, Water, Finger), optimizing use of the device for both indoor and outdoor applications.
In the field, portability equals productivity. The S14I weighs only 2.3kg and is 33% slimmer than the previous generation.
Adding ultra-long battery life of 10 hours and battery swap capability to its mobile form factor, the S14I enables non-stop operation outside of the office.
A smart device knows how to communicate in every way, and the S14I says it all: It’s compatible with a full range of interfaces, and the media bay offers all the customized expansion you may need.
The unit leads the market with two digital and one analog video outputs; HDMI + VGA + USB Type-C DP; Smart card/CAC reader; optional PCMCIA or Express Card; and a RFID reader. Further customization options abound with up to two RS-232 serial ports, up to two RJ-45 LAN ports, and an optional Fischer connector.
The optional dedicated NVIDIA® GEFORCE® GTX1050 transforms the S14I into an ultimate solution for specific tasks such as graphics rendering, architectural illustrations and CAD applications. Only a discrete graphics card can give you the performance and reliability you need to fulfill the demanding job.
The S14I in-vehicle laptop is the computing solution that public safety professionals on the front lines can rely on – engineered to improve efficiency in the field with paperless documentation, real-time reporting, applications, communications, mapping, and more. The S14I delivers the features today’s professionals need, along with instant access to the department’s network, databases, and the real-time intelligence needed to keep communities safe.
SafeCom Mobile stands out as your trusted guide, dedicated to helping you navigate through your options to find the most suitable hardware and accessories tailored to your specific needs. Our focus on the Durabook S14I exemplifies our commitment to providing top-notch rugged computing solutions.
The Durabook S14I, with its blend of durability, performance, and advanced features, is a testament to our commitment to quality and innovation in rugged technology. It delivers unparalleled security and performance abilities, ultra-high-speed connectivity, and excellent user-friendliness. Trust our capability in delivering your ideal rugged computing solutions.
High Performance Without Sacrifice
The S14I features a significant CPU upgrade with Intel® Tiger Lake 11th generation platform, using Intel’s 10nm processor technology. This device comes with integrated Intel® Iris Xe graphics, and for professionals who use intensive graphic computing, it can be upgraded to an optional standalone NVIDIA GeForce® GTX1050.
With the ultra-high-speed data transmission capability of Intel® Wi-Fi 6 AX201 with max. speed of 2.4Gbps and Bluetooth® V5.2, all information is instantly synced and fed back to the data control center.
Exceptional Durability & Security
The S14I is built with a robust mechanical design and rigorously tested components. It meets the standards of MIL-STD-810H; withstands up to a 4-foot drop; and boasts an IP53 rating. This tough yet elegant rugged laptop breaches the boundary between semi-rugged and fully-rugged devices.
It now includes Windows Hello encrypted biometrics, a more secure, user-friendly and faster way of accessing the Window® 10 OS.
Storage Revolution
S14I is equipped with the latest NVMe PCIe SSD technology, providing up to 1TB of storage, while its PCIe offers speeds 4x faster than SATA III.
Furthermore, S14I can accommodate two more internal SSD SATA III drives to maximize the onboard storage.
View Every Detail
The S14I sports a Full HD 1080p display and proprietary DynaVue® technology. With brightness enhanced up to 1,000 nits and light-filtering technology providing a high contrast ratio (CR) to eliminate reflection, every detail of imagery is delivered with the utmost clarity. The 10-point capacitive multi-touch panel has four Touch Modes (Glove, Stylus, Water, Finger), optimizing use of the device for both indoor and outdoor applications.
Continuous Operation On The Go
In the field, portability equals productivity. The S14I weighs only 2.3kg and is 33% slimmer than the previous generation.

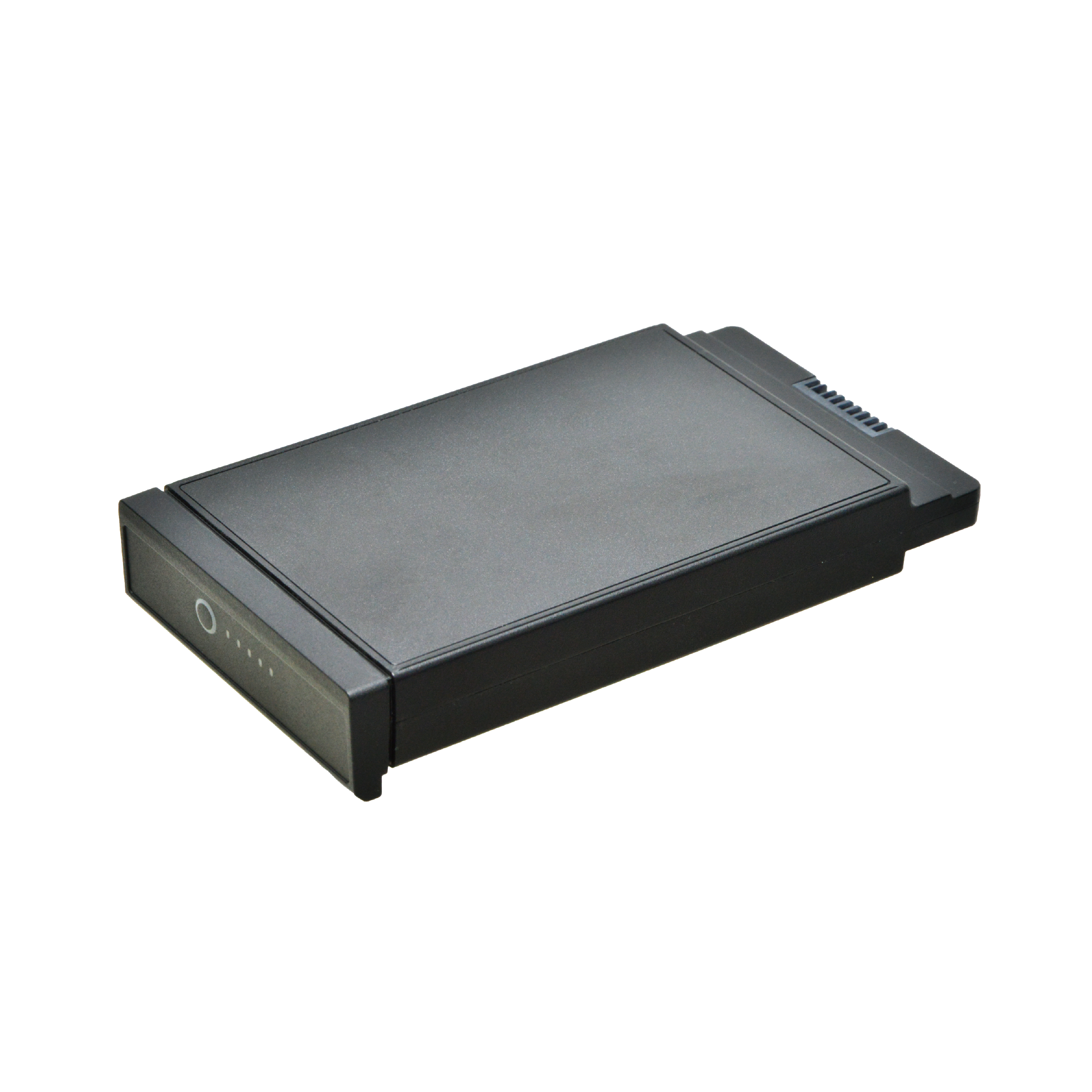

Adding ultra-long battery life of 10 hours and battery swap capability to its mobile form factor, the S14I enables non-stop operation outside of the office.
Best-In-Class Connectivity
A smart device knows how to communicate in every way, and the S14I says it all: It’s compatible with a full range of interfaces, and the media bay offers all the customized expansion you may need.
The unit leads the market with two digital and one analog video outputs; HDMI + VGA + USB Type-C DP; Smart card/CAC reader; optional PCMCIA or Express Card; and a RFID reader. Further customization options abound with up to two RS-232 serial ports, up to two RJ-45 LAN ports, and an optional Fischer connector.

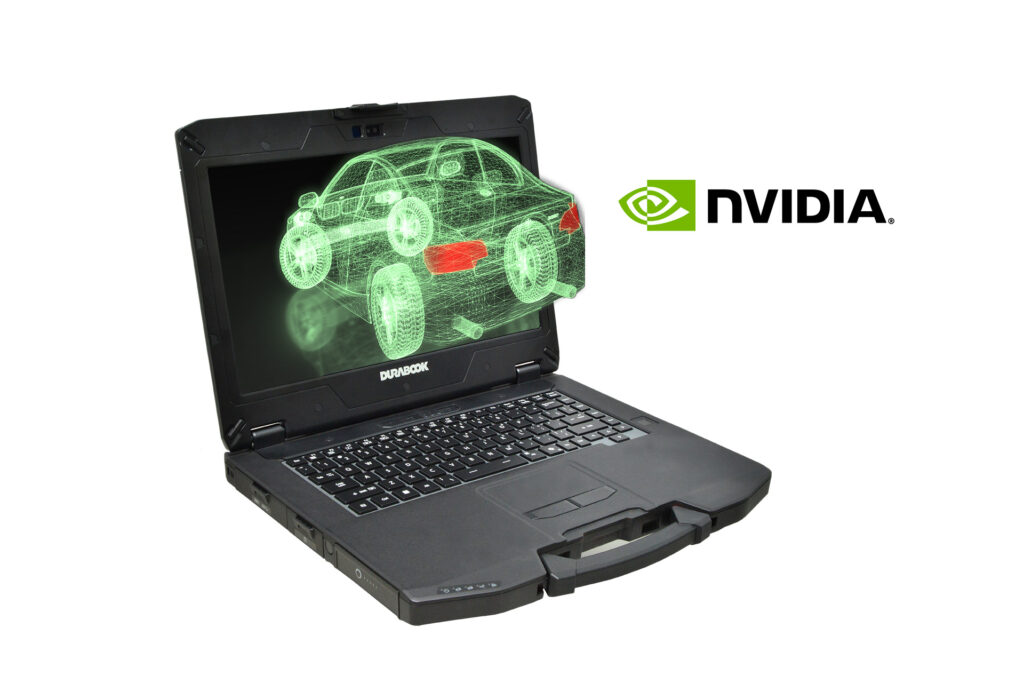

Dedicated Graphics
The optional dedicated NVIDIA® GEFORCE® GTX1050 transforms the S14I into an ultimate solution for specific tasks such as graphics rendering, architectural illustrations and CAD applications. Only a discrete graphics card can give you the performance and reliability you need to fulfill the demanding job.

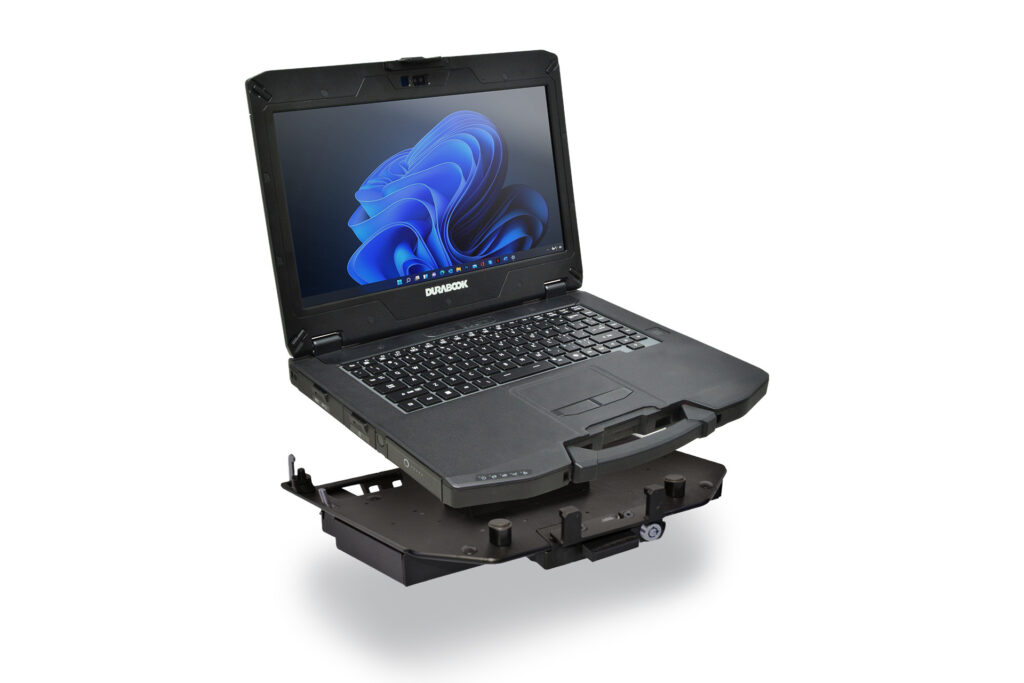

Value-Driven In-Vehicle Solution
The S14I in-vehicle laptop is the computing solution that public safety professionals on the front lines can rely on – engineered to improve efficiency in the field with paperless documentation, real-time reporting, applications, communications, mapping, and more. The S14I delivers the features today’s professionals need, along with instant access to the department’s network, databases, and the real-time intelligence needed to keep communities safe.
Why Opt for SafeCom Mobile’s Durabook S14I?
SafeCom Mobile stands out as your trusted guide, dedicated to helping you navigate through these options to find the most suitable hardware and accessories tailored to your specific needs. Our focus on the Durabook S14I exemplifies our commitment to providing top-notch rugged computing solutions.
The Durabook S14I, with its blend of durability, performance, and advanced features, is a testament to our commitment to quality and innovation in rugged
Rugged Specs
MIL-STD-810H certified (Drop, Shock, Vibration, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)
Water and Dust Resistant 4′ drop 26 faces
IP 53 certified
Tech Specs
Display
14.0” FHD (1920 x 1080)
Optional 1000 nits DynaVue® sunlight readable display without touch screen
Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen

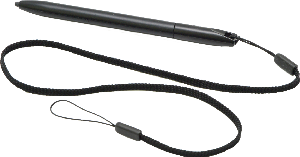

User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Operating System
Processor
Intel® Core™ i7-1185G7 vPro™ (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.8GHz, 12MB cache
Intel® Core™ i7-1165G7 (11th Gen) 2.8GHz processor with Turbo Boost Technology up to 4.7GHz, 12MB cache
Intel® Core™ i5-1145G7 vPro™ (11th Gen) 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cache
Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache
Intel® Core™ i3-1115G4 (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.1GHz, 6MB cache
Memory
2 slots 8GB up to 64GB (2400-3200MHz DDR4)
Storage
256GB NVMe PCIe SSD
Optional 512GB/1TB/2TB PCIe SSD
Optional OPAL 2.0 SSD
Graphics
i7/i5: Intel® Iris® Xe Graphics
i3: Intel® UHD Graphics
Optional NVIDIA® GEFORCE GTX 10501,8
Camera
Optional integrated 2.0 MP web-cam with shutter design
Optional IR camera for Windows Hello2
Audio
Optional integrated microphone3
Intel® High Definition Audio Compliant
Integrated speaker x 2
Expansion Slots
Optional DVD super multi
Optional 2nd battery
Optional media bay storage SSD2
Optional ExpressCard 54 x 1 or PCMCIA Type II x 11,2
Optional 2nd RJ-45 & 2nd serial port (RS232)1,2

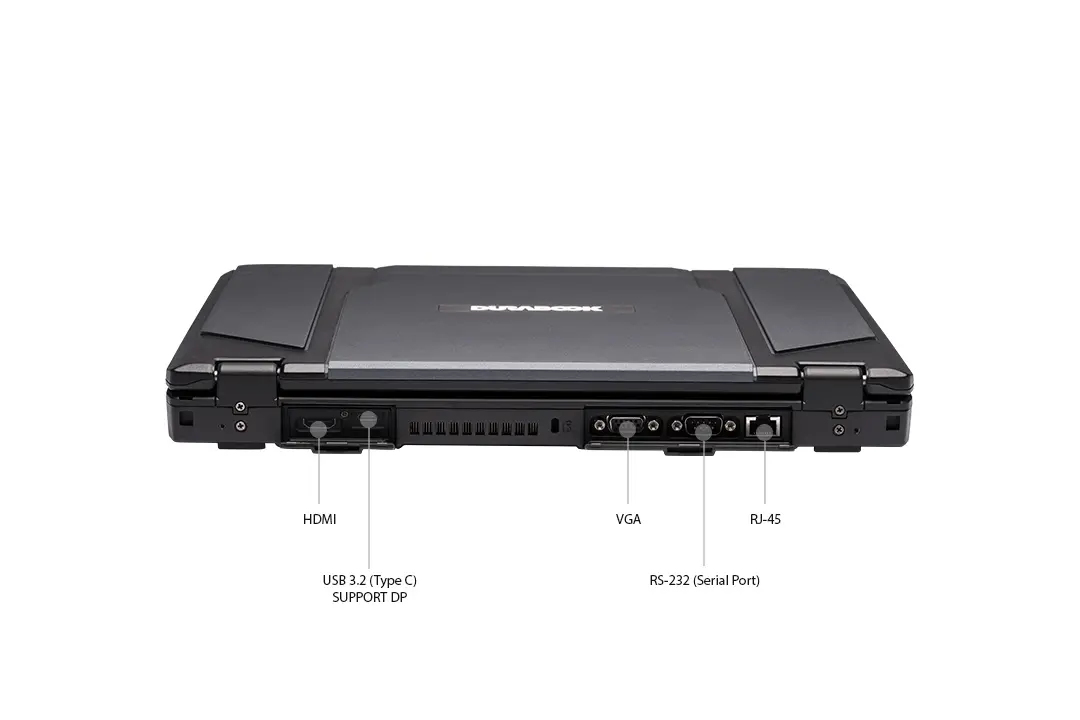

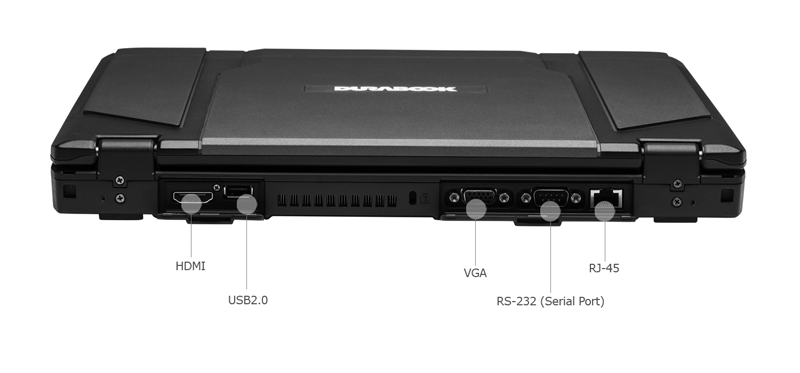

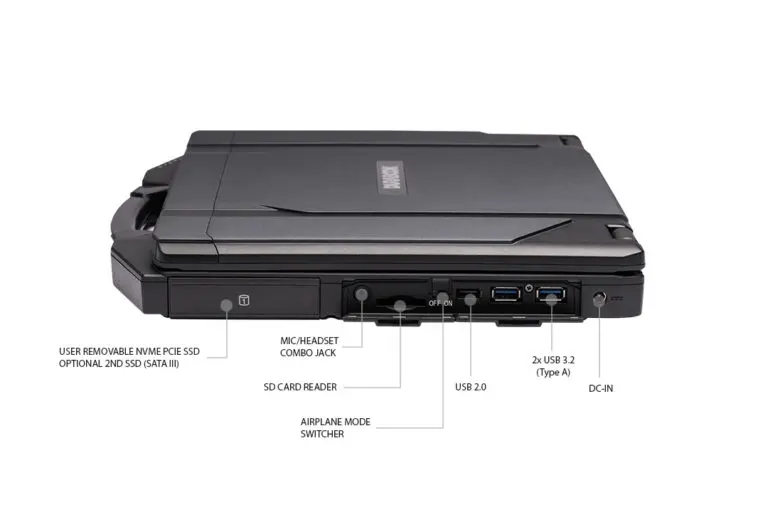

I/O Ports
USB 3.2 Gen2 (type A) x 2
USB 3.2 Gen2 (type C) x 1 (support DP)
USB 2.0 (type A) x 1
Audio in/out (combo jack) x 1
SD card (SDXC) x 1
10/100/1000 Ethernet (RJ-45) x 1
VGA port (D-sub,15-pin) x 1
HDMI port (type A) x 1
Serial port (RS232/RS422/RS485 : D-sub,9-pin) x 1
SIM card x 1
DC-In jack x 1
Optional smart card reader x 14
Optional docking connector (41-pin Pogo) x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Keyboard & Input
2 user-definable keys (P1/P2)
RF Signal slide-switch
Standard membrane keyboard with optional LED backlight
Wireless & Communications
Integrated 10/100/1000 Ethernet
Intel® Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax)
Bluetooth® V5.2
Optional dedicated GPS module (UBLOX-NEO-M8N)
Optional 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Security
Intel® vPro™ Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Stealth mode
Kensington lock
Optional smart card reader4
Optional Windows Hello2
Optional night vision mode5
Optional fingerprint scanner
Optional HF-RFID (NFC) reader2,4
Power
AC adapter: 100-240V, 50Hz-60Hz, 90W
Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
Main battery Li-Ion, 10.8V, 4700mAh, 10 hours6
Optional 2nd battery Li-Ion 10.8V, 4700mAh, 10 hours6
Dimension & Weight
350 mm (L) x 282 mm (W) x 38 mm (H)
2.3 kg
Warranty
3-year limited warranty standard
Rugged Specs
MIL-STD-810H certified (Drop, Shock, Vibration, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)
Water and Dust Resistant 4′ drop 26 faces
IP 53 certified
Tech Specs
Display
14.0” FHD (1920 x 1080)
Optional 1000 nits DynaVue® sunlight readable display without touch screen
Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Operating System
Processor
Intel® Core™ i7-1185G7 vPro™ (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.8GHz, 12MB cache
Intel® Core™ i7-1165G7 (11th Gen) 2.8GHz processor with Turbo Boost Technology up to 4.7GHz, 12MB cache
Intel® Core™ i5-1145G7 vPro™ (11th Gen) 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cache
Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache
Intel® Core™ i3-1115G4 (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.1GHz, 6MB cache
Memory
2 slots 8GB up to 64GB (2400-3200MHz DDR4)
Storage
256GB NVMe PCIe SSD
Optional 512GB/1TB/2TB PCIe SSD
Optional OPAL 2.0 SSD
Graphics
i7/i5: Intel® Iris® Xe Graphics
i3: Intel® UHD Graphics
Optional NVIDIA® GEFORCE GTX 10501,8
Camera
Optional integrated 2.0 MP web-cam with shutter design
Optional IR camera for Windows Hello2
Audio
Optional integrated microphone3
Intel® High Definition Audio Compliant
Integrated speaker x 2
I/O Ports
USB 3.2 Gen2 (type A) x 2
USB 3.2 Gen2 (type C) x 1 (support DP)
USB 2.0 (type A) x 1
Audio in/out (combo jack) x 1
SD card (SDXC) x 1
10/100/1000 Ethernet (RJ-45) x 1
VGA port (D-sub,15-pin) x 1
HDMI port (type A) x 1
Serial port (RS232/RS422/RS485 : D-sub,9-pin) x 1
SIM card x 1
DC-In jack x 1
Optional smart card reader x 14
Optional docking connector (41-pin Pogo) x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Expansion Slots
Optional DVD super multi
Optional 2nd battery
Optional media bay storage SSD2
Optional ExpressCard 54 x 1 or PCMCIA Type II x 11,2
Optional 2nd RJ-45 & 2nd serial port (RS232)1,2
Keyboard & Input
2 user-definable keys (P1/P2)
RF Signal slide-switch
Standard membrane keyboard with optional LED backlight
Wireless & Communications
Integrated 10/100/1000 Ethernet
Intel® Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax)
Bluetooth® V5.2
Optional dedicated GPS module (UBLOX-NEO-M8N)
Optional 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Security
Intel® vPro™ Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Stealth mode
Kensington lock
Optional smart card reader4
Optional Windows Hello2
Optional night vision mode5
Optional fingerprint scanner
Optional HF-RFID (NFC) reader2,4
Power
AC adapter: 100-240V, 50Hz-60Hz, 90W
Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
Main battery Li-Ion, 10.8V, 4700mAh, 10 hours6
Optional 2nd battery Li-Ion 10.8V, 4700mAh, 10 hours6
Dimension & Weight
350 mm (L) x 282 mm (W) x 38 mm (H)
2.3 kg
Warranty
3-year limited warranty standard
Media Bay
(One Option Only)
Optional DVD super multi
Optional 2nd battery
Optional SATA SSD
Technical
Specifications
Rugged Specs
MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation, Salt Fog, Fungus Resistance)
MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
Optional ANSI/UL 121201, Class I, Division 2
6′ drop 26 faces
IP 65 certified
Aluminum-magnesium alloy chassis
Port covers
Removable quick-release battery and storage drive
Sunlight readable display
Optional swappable battery technology
