Description
Product Features
Robust Durability
The Durabook Z14I is granted an IP65 rating for dust and water resistance, as well as an endurance to six-foot drops. Trust it for reliability and durability in any situation.

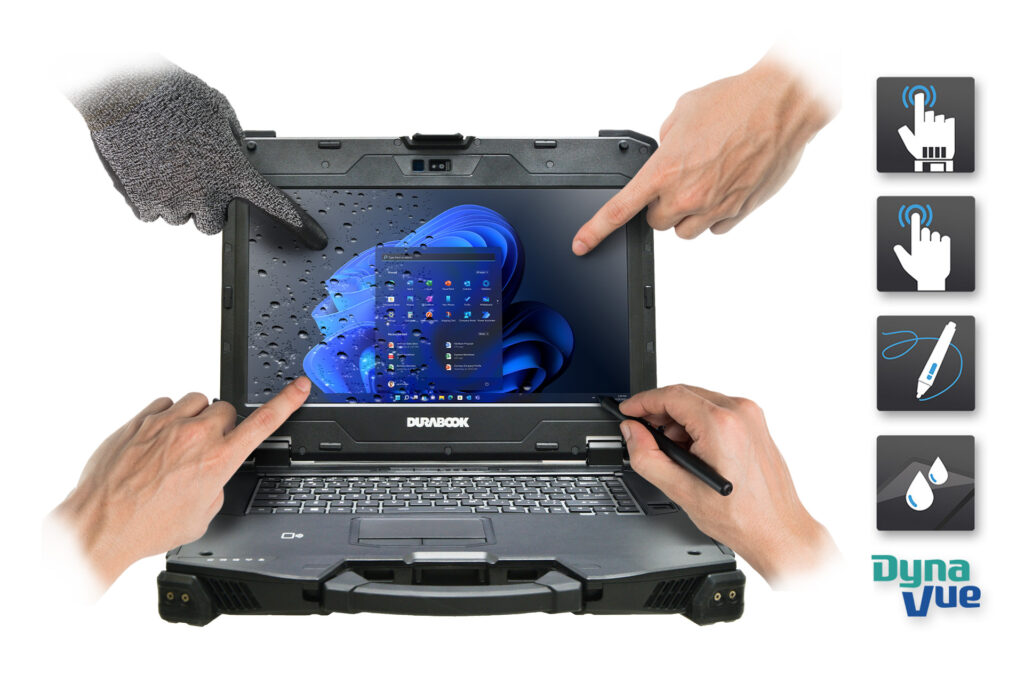

Multi-touch Functionality
Featuring 1000 nits DynaVue® technology, the sunlight-readable screen of Durabook Z14I offers capacitive multi-touch functionality with customisable touch modes for Finger/Water, Glove, or Stylus use.

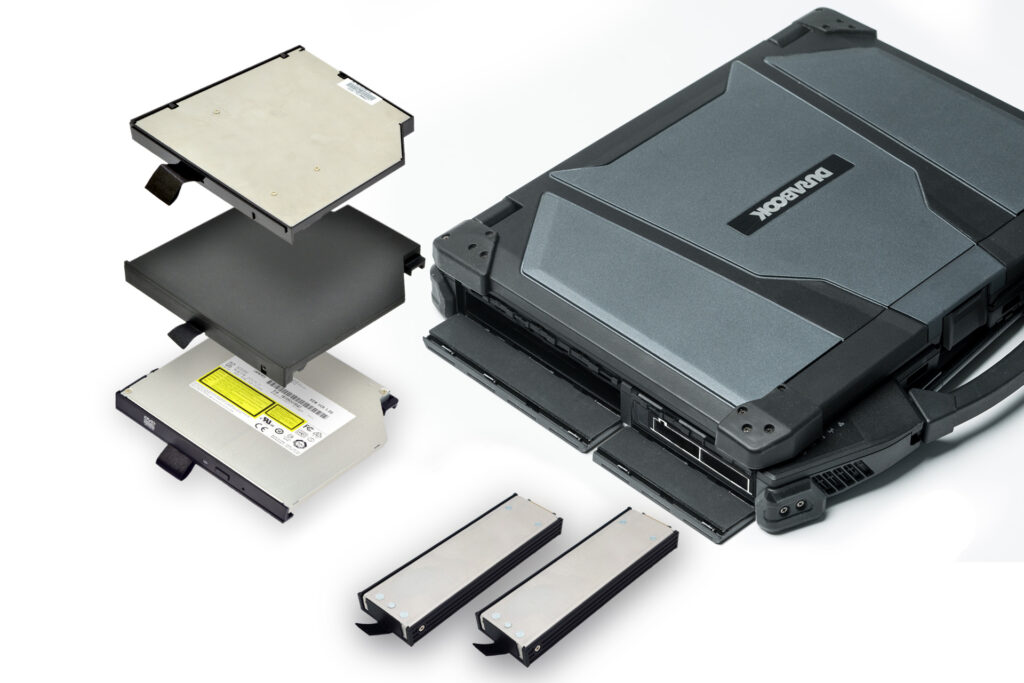

Versatile Storage
The latest NVMe PCIe SSD technology of Durabook Z14I offers up to 2TB of storage. There are additional SATA III SSD drives, a media bay for optical disk drives, extra batteries and storage provided to fulfil your industrial needs.

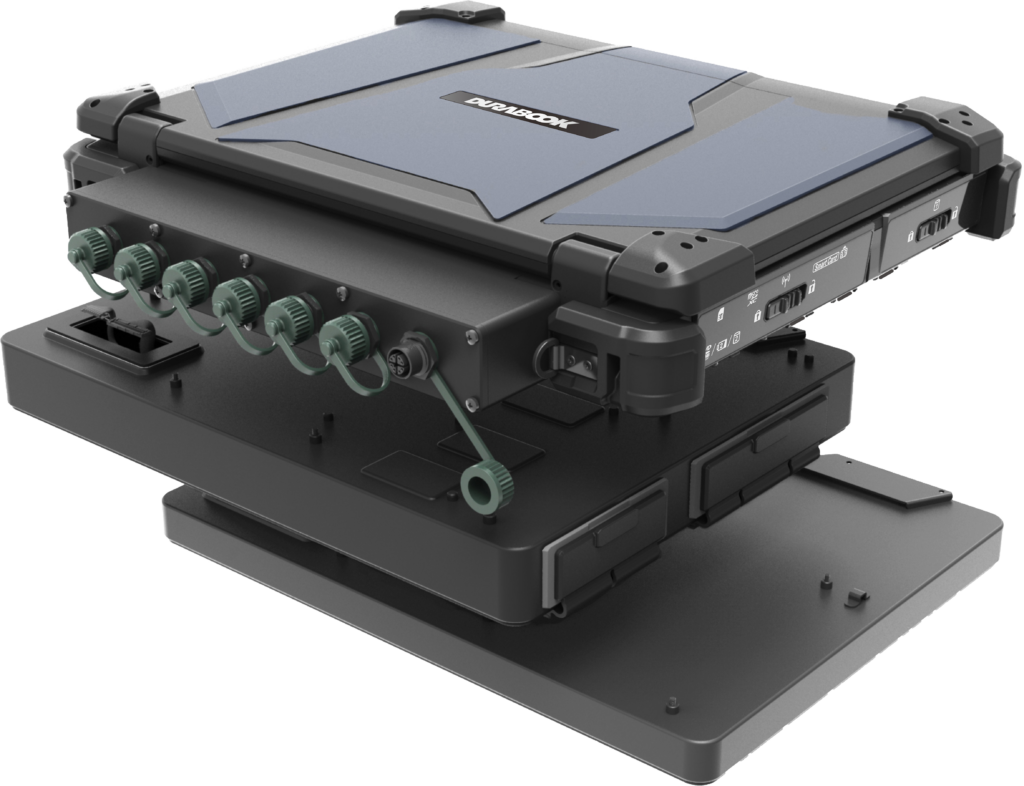

Customisable Expansion
The Durabook Z14I features a powerful expansion box that’s easy to install. It comes with two PCIe slots, dedicated graphics card support, military-grade connectors, and RAID configurations for storage security. With endless configuration possibilities, the equipment provides you the power, flexibility, functionality, and data security you need for applications.
Durable and Silent Operation
The U11I is built to endure extreme conditions, which is evident in its MIL-STD-810H certification, 6-foot drop resistance, and an IP66 rating. Its fanless Coolfinity design ensures silent operation, making it suitable for sensitive and hazardous environments.
Superior Visual Clarity
Enjoy crystal-clear visuals on the Durabook Z14I’s 14.0” FHD (1920 x 1080) display. The advanced light-filtering technology enhances contrast ratio and viewing clarity, even at different angles.
Certified Endurance
Tested against extreme conditions including explosive atmospheres and solar radiation, the Durabook Z14I sets a new standard for rugged devices. It boasts an array of certifications including MIL-STD 810H and MIL-STD-461G.
Robust Durability
The Durabook Z14I is granted an IP65 rating for dust and water resistance, as well as an endurance to six-foot drops. Trust it for reliability and durability in any situation.
Multi-touch Functionality
Featuring 1000 nits DynaVue® technology, the sunlight-readable screen of Durabook Z14I offers capacitive multi-touch functionality with customisable touch modes for Finger/Water, Glove, or Stylus use.
Versatile Storage
The latest NVMe PCIe SSD technology of Durabook Z14I offers up to 2TB of storage. There are additional SATA III SSD drives, a media bay for optical disk drives, extra batteries and storage provided to fulfil your industrial needs.
Customisable Expansion
The Durabook Z14I features a powerful expansion box that’s easy to install. It comes with two PCIe slots, dedicated graphics card support, military-grade connectors, and RAID configurations for storage security. With endless configuration possibilities, the equipment provides you the power, flexibility, functionality, and data security you need for applications.
Superior Visual Clarity
Enjoy crystal-clear visuals on the Durabook Z14I’s 14.0” FHD (1920 x 1080) display. The advanced light-filtering technology enhances contrast ratio and viewing clarity, even at different angles.
Certified Endurance
Tested against extreme conditions including explosive atmospheres and solar radiation, the Durabook Z14I sets a new standard for rugged devices. It boasts an array of certifications including MIL-STD 810H and MIL-STD-461G.
Product Features
- 14″ FHD Sunlight readable display with night vision mode
- WLAN & WWAN³
- Optional 4G LTE multi-carrier mobile broadband³
- Optional NVIDIA GEFORCE GTX 1050¹
- Optional Dedicated GPS module, fingerprint scanner, DVD super multi* and 2nd battery
- Optional 2nd/3rd storage (SATA SSD)¹*
- PCI-Express 2.0 (2 slots)¹²
- Optional ExpressCard 54 or PCMCIA Type II
- RFID reader (125 kHz / 13.56 Mhz)¹
- IP 65, MIL-STD 810H and MIL-STD 461G certified
- Option for 2nd battery* and bridge battery for hot-swap feature
- Optional AC adapter (100-240V, 50-60Hz, 120W) with NIVDIA® VGA
¹ Contact Sales for availability.
² PCI-Express 2.0 and Discrete VGA are mutually exclusive options.
³ Depending on carrier and regional availability.
* Either choice for DVD super multi, 2nd battery or 3rd storage
Why Opt for SafeCom Mobile’s Durabook Z14I?
Easily navigate the rugged tech landscape with SafeCom Mobile. Our focused approach simplifies your search for the ideal rugged computing solutions. Leveraging our deep industry experience and technical expertise, we’ll guide you to the perfect match for your needs, including the advanced Durabook Z14I. Make an informed, confident choice in rugged technology with our hands-on demos and tailored support today.
Product Features
- 14″ FHD Sunlight readable display with night vision mode
- WLAN & WWAN³
- Optional 4G LTE multi-carrier mobile broadband³
- Optional NVIDIA GEFORCE GTX 1050¹
- Optional Dedicated GPS module, fingerprint scanner, DVD super multi* and 2nd battery
- Optional 2nd/3rd storage (SATA SSD)¹*
- PCI-Express 2.0 (2 slots)¹²
- Optional ExpressCard 54 or PCMCIA Type II
- RFID reader (125 kHz / 13.56 Mhz)¹
- IP 65, MIL-STD 810H and MIL-STD 461G certified
- Option for 2nd battery* and bridge battery for hot-swap feature
- Optional AC adapter (100-240V, 50-60Hz, 120W) with NIVDIA® VGA
¹ Contact Sales for availability.
² PCI-Express 2.0 and Discrete VGA are mutually exclusive options.
³ Depending on carrier and regional availability.
* Either choice for DVD super multi, 2nd battery or 3rd storage
Why Opt for SafeCom Mobile’s Durabook Z14I?
Easily navigate the rugged tech landscape with SafeCom Mobile. Our focused approach simplifies your search for the ideal rugged computing solutions. Leveraging our deep industry experience and technical expertise, we’ll guide you to the perfect match for your needs, including the advanced Durabook Z14I. From hands-on demos to tailored support, we’ll help you make an informed, confident choice in rugged technology.
Tech Specifications
Technical
Specifications
- Windows® 11 Pro 64-bit
- Intel® Core™ i7-1165G7 / i5-1135G7 processor
- Intel® Iris® Xe Graphics
- 14” display with capacitive multi-touch screen
- RAM: 2 slots 8 GB up to 64 GB (3200 MHz DDR4)
- Storage: 256 GB NVMe PCIe SSD, up to 1 TB PCIe SSD, Optional 2nd/3rd SATA SSD or Optional OPAL 2.0 SSD
- Bluetooth® v5.2
- Intel® Wi-Fi 6 AX201 (802.11 a/b/g/n/ac/ax)
- Thunderbolt 4 (Type C) x 1, USB 3.2 Gen2 (Type A) x 1, USB 3.2 Gen1 (Type A) x 1, USB 3.2 Gen2 (Type C) x 1, USB 2.0 (Type A) x 1, Audio in/out (combo jack) x 1, microSD card (microSDXC) x 1, RJ45 x 2, VGA port (D-sub,15-pin) x 1, DP port x 1, HDMI port (type A) x 1, Serial port (RS232 : D-sub, 9-pin) x 2, Docking connector (41-pin Pogo) x 1, SIM card x 1, Smart card reader x 1, DC-In jack x 1, PCMCIA Type II x1, ExpressCard 54 x1 or 2nd PCMCIA Type II x1
- Up to 16 hours battery life / 7800 mAh
- 2nd battery option: up to 9 hours battery life / 4700 mAh
Rugged Specs
MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation, Salt Fog, Fungus Resistance)
MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
Optional ANSI/UL 121201, Class I, Division 2
6′ drop 26 faces
IP 65 certified
Aluminum-magnesium alloy chassis
Port covers
Removable quick-release battery and storage drive
Sunlight readable display
Optional swappable battery technology
Tech Specs
Display
14.0” FHD (1920 x1080)
1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
- User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Operating System
- Windows® 11 Pro 64-bit
Processors
Intel® Core™ i7-1185G7 vPro™ (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.8GHz, 12MB cache
Intel® Core™ i7-1165G7 (11th Gen) 2.8GHz processor with Turbo Boost Technology up to 4.7GHz, 12MB cache
Intel® Core™ i5-1145G7 vPro™ (11th Gen) 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cache
Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache
Memory
- 2 slots 8GB up to 64GB (3200MHz DDR4)
Storage
Main: 256GB/512GB/1TB/2TB NVME PCIE SSD
Optional 256GB/512GB/1TB SATA SSD
Optional OPAL 2.0 SSD
Optional 2nd/3rd storage (SATA SSD)1
Graphics
Intel® Iris® Xe Graphics
Optional NVIDIA® GEFORCE GTX 10501
Camera
Integrated 2.0 MP web-cam with shutter design
Optional IR camera for Windows Hello1
Audio
Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 2
Keyboard volume and mute controls
Media Bay
(One Option Only)
Optional DVD super multi
Optional 2nd battery
Optional SATA SSD
Expansion Box
Optional PCI-Express 3.0 (2 slots)1,6
Optional discrete VGA1,6
Optional storage extension with RAID 0/1/5/101,6
Optional military-grade connectors1

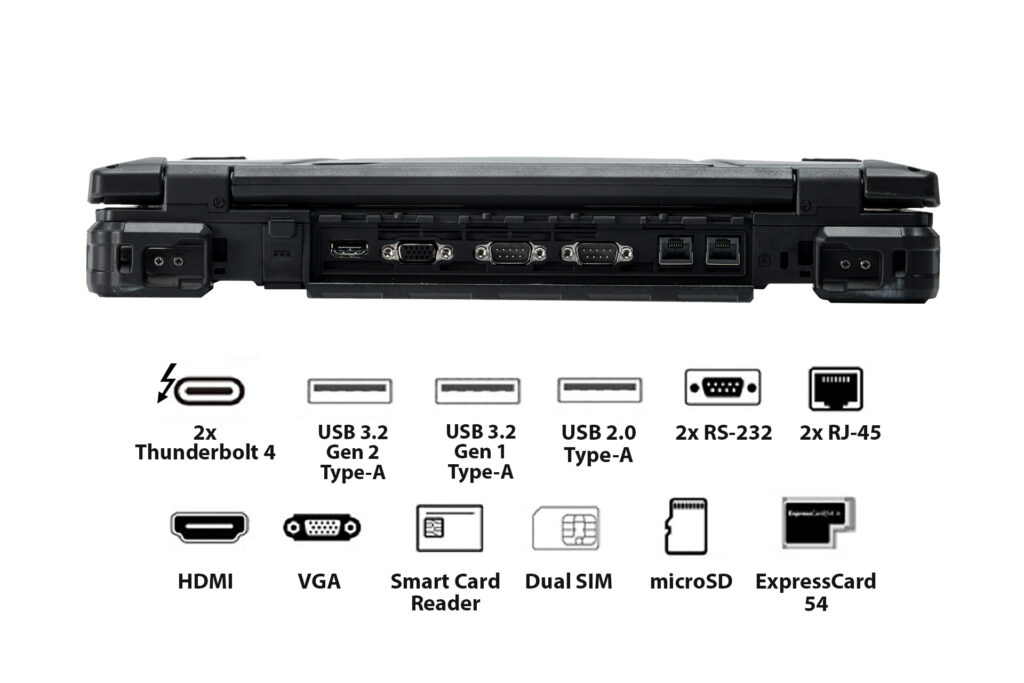

I/O Ports
Thunderbolt 4 (type C) x 1
USB 3.2 Gen2 (type C) x 1 (support DP)
USB 3.2 Gen2 (type A) x 1
USB 3.2 Gen1 (type A) x 1
USB 2.0 (type A) x 1
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
10/100/1000 Ethernet (RJ45) x 2
VGA port (D-sub,15-pin) x 1
HDMI port (type A) x 1
Serial port (RS232 : D-sub,9-pin) x 25
Docking connector (41-pin Pogo) x 1
SIM card x 1
Smart card reader x 1
DC-In jack x 1
ExpressCard 54 x 1 (default) or PCMCIA Type II x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Keyboard & Input
2 user-definable keys (P1/P2)
Standard membrane keyboard with numeric keypad and optional LED backlight
Wireless & Communications
Integrated 10/100/1000 Ethernet
Intel® Wi-Fi 6E AX211 (802.11 ax)
Bluetooth® V5.3
Optional GPS and 4G LTE multi-carrier mobile broadband3
Optional 5G1
Optional RF antenna pass-through for GPS, WWAN and WLAN
Security
Intel® vPro™ Technology (per CPU options)
Secured-core PC1
TPM 2.0
NIST BIOS compliant
Stealth mode
Kensington lock
Optional smart card reader
Optional Windows Hello1
Optional fingerprint scanner
Optional night vision mode2
Optional LF/HF-RFID (NFC) reader
Power
AC adapter : 100-240V, 50Hz-60Hz, 90W
Main battery Li-Ion, 7.4V, 7600mAh, 12 hours4
Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
Optional bridge battery: 5 minutes swap time5
Dimension & Weight
375 mm (L) x 273 mm (W) x 29.5 mm (H)
2.6 kg
Warranty
- 3-year limited warranty standard
- Contact your sales representative for feature availability.
- Night vision mode is available only for sunlight readable display.
- ExpressCard 54 and expansion module (RJ45 & RS232) are mutually exclusive.
- Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
- The system will stay operating (within 300 seconds in standby mode) when user swaps the battery.
Technical
Specifications
- Windows® 11 Pro 64-bit
- Intel® Core™ i7-1165G7 / i5-1135G7 processor
- Intel® Iris® Xe Graphics
- 14” display with capacitive multi-touch screen
- RAM: 2 slots 8 GB up to 64 GB (3200 MHz DDR4)
- Storage: 256 GB NVMe PCIe SSD, up to 1 TB PCIe SSD, Optional 2nd/3rd SATA SSD or Optional OPAL 2.0 SSD
- Bluetooth® v5.2
- Intel® Wi-Fi 6 AX201 (802.11 a/b/g/n/ac/ax)
- Thunderbolt 4 (Type C) x 1, USB 3.2 Gen2 (Type A) x 1, USB 3.2 Gen1 (Type A) x 1, USB 3.2 Gen2 (Type C) x 1, USB 2.0 (Type A) x 1, Audio in/out (combo jack) x 1, microSD card (microSDXC) x 1, RJ45 x 2, VGA port (D-sub,15-pin) x 1, DP port x 1, HDMI port (type A) x 1, Serial port (RS232 : D-sub, 9-pin) x 2, Docking connector (41-pin Pogo) x 1, SIM card x 1, Smart card reader x 1, DC-In jack x 1, PCMCIA Type II x1, ExpressCard 54 x1 or 2nd PCMCIA Type II x1
- Up to 16 hours battery life / 7800 mAh
- 2nd battery option: up to 9 hours battery life / 4700 mAh
Rugged Specs
MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation, Salt Fog, Fungus Resistance)
MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
Optional ANSI/UL 121201, Class I, Division 2
6′ drop 26 faces
IP 65 certified
Aluminum-magnesium alloy chassis
Port covers
Removable quick-release battery and storage drive
Sunlight readable display
Optional swappable battery technology
Tech Specs
Display
14.0” FHD (1920 x1080)
1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
- User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Operating System
- Windows® 11 Pro 64-bit
Processor
Intel® Core™ i7-1185G7 vPro™ (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.8GHz, 12MB cache
Intel® Core™ i7-1165G7 (11th Gen) 2.8GHz processor with Turbo Boost Technology up to 4.7GHz, 12MB cache
Intel® Core™ i5-1145G7 vPro™ (11th Gen) 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cache
Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache
Memory
- 2 slots 8GB up to 64GB (3200MHz DDR4)
Storage
Main: 256GB/512GB/1TB/2TB NVME PCIE SSD
Optional 256GB/512GB/1TB SATA SSD
Optional OPAL 2.0 SSD
Optional 2nd/3rd storage (SATA SSD)1
Graphics
Intel® Iris® Xe Graphics
Optional NVIDIA® GEFORCE GTX 10501
Camera
Integrated 2.0 MP web-cam with shutter design
Optional IR camera for Windows Hello1
Audio
Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 2
Keyboard volume and mute controls
I/O Ports
Thunderbolt 4 (type C) x 1
USB 3.2 Gen2 (type C) x 1 (support DP)
USB 3.2 Gen2 (type A) x 1
USB 3.2 Gen1 (type A) x 1
USB 2.0 (type A) x 1
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
10/100/1000 Ethernet (RJ45) x 2
VGA port (D-sub,15-pin) x 1
HDMI port (type A) x 1
Serial port (RS232 : D-sub,9-pin) x 25
Docking connector (41-pin Pogo) x 1
SIM card x 1
Smart card reader x 1
DC-In jack x 1
ExpressCard 54 x 1 (default) or PCMCIA Type II x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Expansion Box
Optional PCI-Express 3.0 (2 slots)1,6
Optional discrete VGA1,6
Optional storage extension with RAID 0/1/5/101,6
Optional military-grade connectors1
Keyboard & Input
2 user-definable keys (P1/P2)
Standard membrane keyboard with numeric keypad and optional LED backlight
Wireless & Communications
Integrated 10/100/1000 Ethernet
Intel® Wi-Fi 6E AX211 (802.11 ax)
Bluetooth® V5.3
Optional GPS and 4G LTE multi-carrier mobile broadband3
Optional 5G1
Optional RF antenna pass-through for GPS, WWAN and WLAN
Security
Intel® vPro™ Technology (per CPU options)
Secured-core PC1
TPM 2.0
NIST BIOS compliant
Stealth mode
Kensington lock
Optional smart card reader
Optional Windows Hello1
Optional fingerprint scanner
Optional night vision mode2
Optional LF/HF-RFID (NFC) reader
Power
AC adapter : 100-240V, 50Hz-60Hz, 90W
Main battery Li-Ion, 7.4V, 7600mAh, 12 hours4
Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
Optional bridge battery: 5 minutes swap time5
Dimension & Weight
375 mm (L) x 273 mm (W) x 29.5 mm (H)
2.6 kg
Warranty
3-year limited warranty standard
Media Bay
(One Option Only)
Optional DVD super multi
Optional 2nd battery
Optional SATA SSD
- Contact your sales representative for feature availability.
- Night vision mode is available only for sunlight readable display.
- ExpressCard 54 and expansion module (RJ45 & RS232) are mutually exclusive.
- Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
- The system will stay operating (within 300 seconds in standby mode) when user swaps the battery.
MORE RUGGED LAPTOPS OPTIONS
