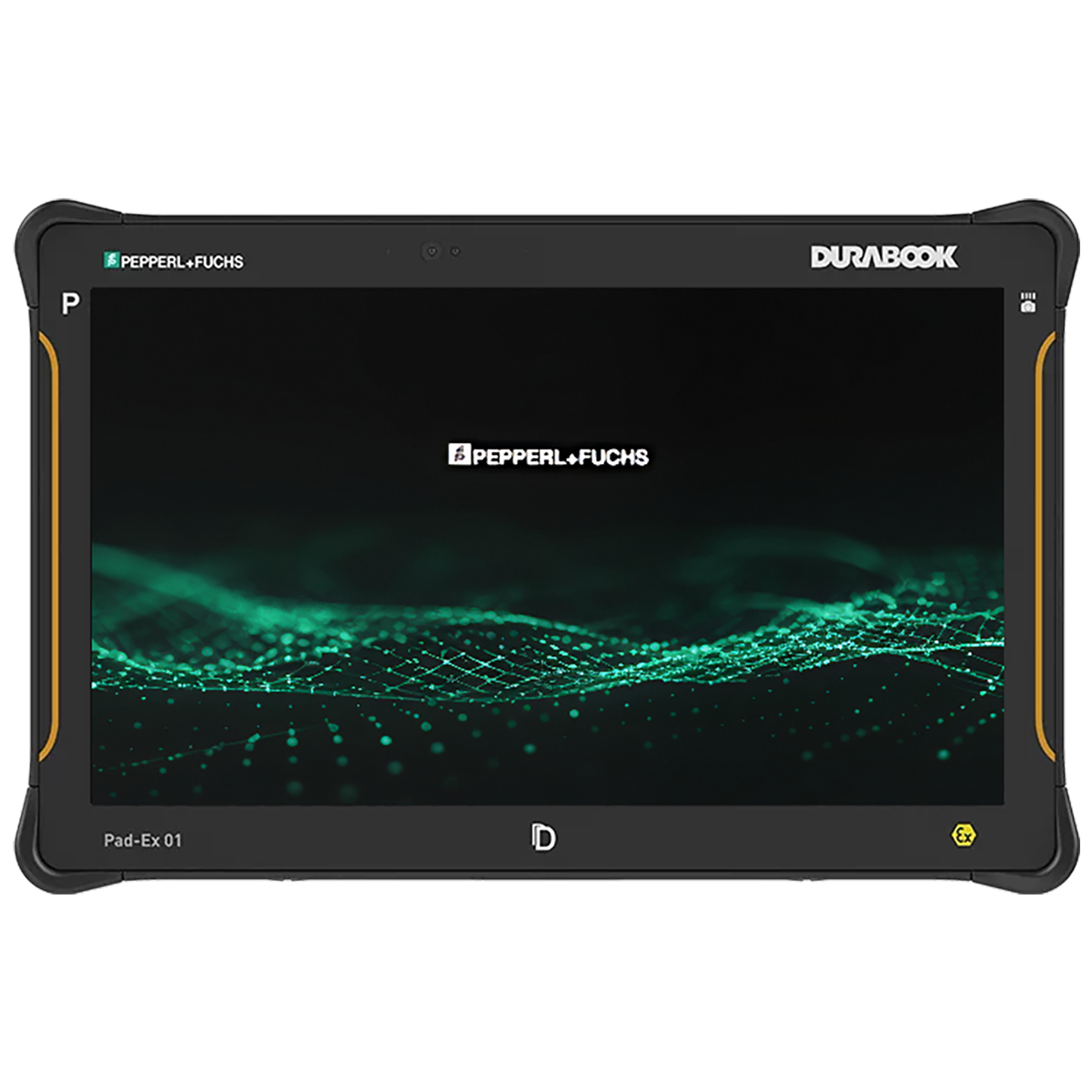

Pad-Ex 01 P12 Zone 2 / Div 2

Pad-Ex 01 P12 Zone 2 / Div 2

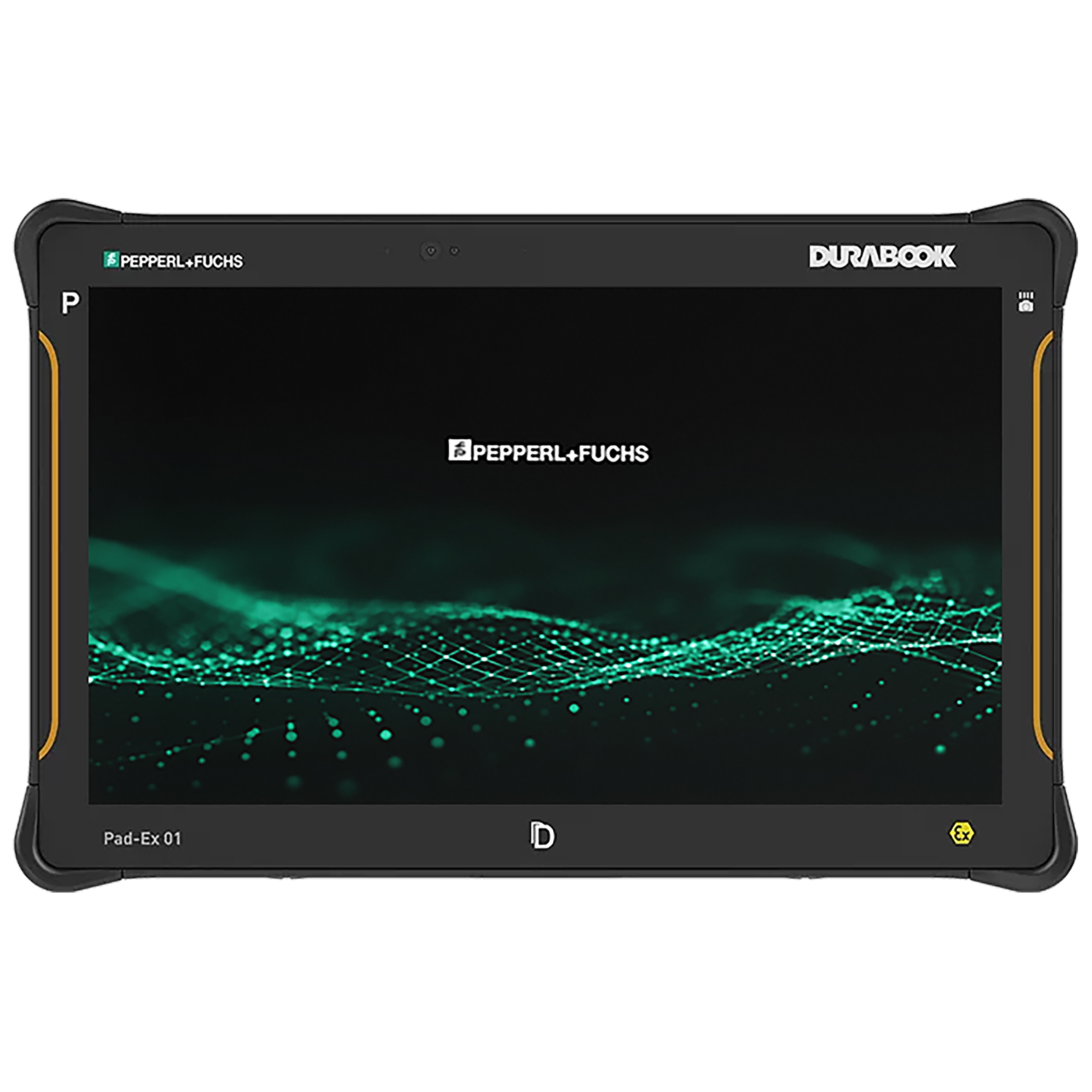

Pad-Ex® 01 P12 DZ2 redefines what a mobile Full Win tablet PC shall be:

While being given its level of ruggedness, Pad-Ex® 01 P12 DZ2 meets all the environmental requirements and supports the 8th generation Intel® Core™ i5 processor. It also provides battery life up to 7 hours and Windows® 10 Pro support.

Combining robust features and a large screen size, superior performance is ideal for field operatives of all sectors to complement or even substitute Desktop PC, laptop or wall mounted display.

Description

Rugged Revolution
Thin, Light and Strong

Supporting such an ultra compact form factor, Pad-Ex® 01 P12 manages to fully meet IP64, drop-tested from 4 feet, MIL-STD-810H and MIL-STD-461F certified  for maximum protection against dust, dirt, and water ingress. With its additional display protection it offers complete protection against the harsh environment field workers face and minimizes burden on their bodies during long hours of work

Connectivity
Fast and Flexible

As private 4G / LTE wireless connectivity is increasingly adopted within hazardous areas, Pad-Ex® 01 P12 ensures access is fast and seamless – enabling users to quickly access the information needed to perform the task at hand. For sites without WiFi or 4G access in the field, Pad-Ex® 01 P12 provides up to 256GB of SSD memory to meet your on-board data storage needs, backed by an i5 to ensure your applications run as smoothly and efficiently as possible.

Central to ecom’s Mobile Worker concept, the latest Bluetooth standards are also supported by Pad-Ex® 01 P12, allowing realtime connectivity to both Bluetooth SmartReady Low Energy 5.3 (BLE) devices as well as older legacy Bluetooth devices. This allows the mobile worker to benefit from expanded Pad-Ex® 01 P12 capabilities such as data collection and measuring/monitoring devices, headsets, AutoID, and Bluetooth Beacons for localization.

Once your work in the field is done, Pad-Ex® 01 P12 transforms into your PC via the optional desktop docking interface, allowing seamless integration into your office and corporate networks.

Technical
Specifications

  • Intel® Core™ i5-1235U (12th Gen) Processor with vPro™
  • Optional i7-1255U (12th Gen) – for DZ2 only
  • Support 4G LTE / Intel® Wi-Fi 6E AX211 (802.11 ax)
  • Support GPS / Augmented Reality
  • Bluetooth® V5.3
  • Thunderbolt™ 4 x 1
  • Micro HDMI x 1
  • USB 3.2 Gen2 (type A) x 1

Rugged Specs

IP64 according to EN/IEC 60079-0 (ATEX/IECEx)

IP65 according to EN/IEC 60529 (industrial standard)

MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)

MIL-STD-461F certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)

Device is dropped on 26 faces from 4′ (1,2 m)

Aluminum-magnesium alloy chassis

Port covers

Tech Specs

CPU

  • Intel® Core™ i5-1235U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores)

  • DZ2 only: Optional: Intel® Core™ i7-1255U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores)

MEMORY

  • 16GB (4800Mhz, DDR5) (32GB optional)

STORAGE

  • 256GB NVMe PCIe SSD (512GB optional)

DISPLAY

  • 11.6″ FHD (1920 x 1080) LCD Panel
  • Capacitive Multi-Touch

  • Optical Bonding Sunlight Readable LCD

  • Ambient Light Sensor

  • Brightness 1000 cd/m2 (nit)

SENSOR

  • Built-in G sensor, Gyroscope, and E-Compass

AUDIO

  • Integrated speaker x 1

  • Integrated microphone

  • Intel® High Definition Audio Compliant

CAMERA

  • 2.0 MP Front Facing Camera
  • 8.0 MP Rear Camera with auto focus and LED flashlight

COMMUNICATION

  • 4G LTE (Optional)

  • GPS (Optional)

  • Intel® Wi-Fi 6E AX211 (802.11 ax)

  • Bluetooth® V5.3

DATA COLLECTION

  • 1D / 2D Barcode Scanner (Optional)

I/O PORTS

  • 1 x Micro HDMI

  • 1 x USB 3.2 Gen2 (type A)

  • 1 x Audio in/out (combo jack)

  • 1 x microSD card (microSDXC)

  • 1 x Docking connector (35-pin Pogo)

  • 1 x Nano SIM card

  • 1 x DC-In jack

  • 1 x Thunderbolt™ 4

  • 1 x Docking Connector (35-pin Pogo)

  • 2 x RF pass-through connectors for WWAN & GPS (optional)

BUTTON

  • Power

  • Volume

  • Windows Touch button

  • Barcode / Camera Touch Button

  • Programmable Touch Button

BATTERY

  • Main battery: Li-Ion, 11.1V, 3900mAh, 8.5 hours*

  • Optional: Long-Life battery Li-Ion 10.8V, 6900mAh, 15 hours*

AC ADAPTOR

  • 19 V; 3,42 A; 65 W

DIMENSIONS

  • 298 mm x 192 mm x 20 mm (11.75″ x 7.55″ x 0.78″)

WEIGHT

  • 1.2 Kg (~42.32 oz)

Ex Certificates

ATEX Logo

ATEX (Europe)

  • II 3G Ex ic op is IIC T4 Gc IP64

  • II 3D Ex ic op is IIIB T135°C Dc

  • Ta = -10 °C to +55 °C

IECEx (International)

  • Ex ic op is IIC T4 Gc IP64

  • Ex ic op is IIIB T135°C Dc IP64

  • Ta = -10 °C to +55 °C

SGS Logo

SGS (NEC/CEC)



Certificates and Manuals

EU Declaration of Conformity

UN38.3 Confirmation [BP P01 P12 HC]

UN38.3 Confirmation [BP P01 P12 SC]

Quick Start Guide

Instruction manual

Safety manual

Delivery Includes

  • Pad-Ex01® P12
  • Power supply
  • Power cable
  • Dock Connector with Pass-Through
  • Hand Strap
  • Documentation
  • Stylus pen with tether

Accessories

  • CA P01 A01
  • HA P01 A01
  • LC P01 A01
  • BP P01 P12 HC (R11AH7-H)
  • BP P01 P12 SC (R11AH7-M)
  • DC P01 HC
  • ST P01 P12 Stylus with Tether
