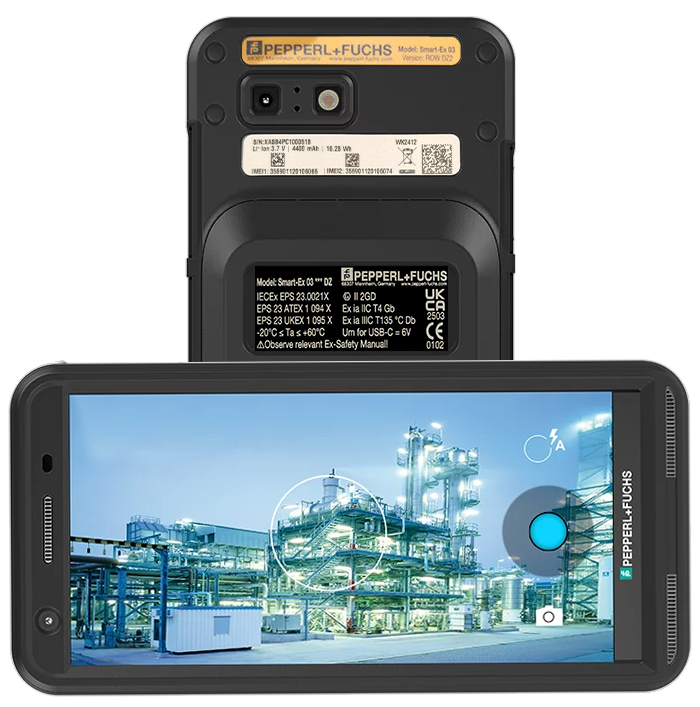

Smart‑Ex® 03 DZ2 Camera Only – Successor to the World’s First Intrinsically Safe Smart‑Ex® 02

The Smart‑Ex 03 DZ1 Camera Only builds on the legacy of the Smart‑Ex 02, delivering advanced imaging performance in hazardous environments. Featuring a large, high‑resolution display, powerful camera functions, and optimized accessories, it ensures reliable visual documentation even in the harshest conditions.

With its extended temperature range, rugged construction, and ergonomic design, the Smart‑Ex 03 DZ2 Camera Only enables users to capture critical visuals safely, quickly, and efficiently. Designed for seamless compatibility with current and future Pepperl+Fuchs products, it provides a dependable imaging solution tailored for industrial operations in Zone 2/22 environments.

Description

Product Features

  • Global Certification – Single platform
  • Android 13
  • 13 MP AF rear camera with LED flash + 5 MP front
  • USB-C connector
  • Replaceable 4400 mAh battery
  • IP68

Technical
Specifications

  • Qualcomm® Snapdragon QCM6490 and SDR753 platform
  • 6.0” capacitive multi-touchscreen
  • RAM: 8GB
  • ROM: Internal 128GB
  • Battery @ 4400 mAh
Download Datasheet

Rugged Specs

  • MIL-STD-810H certified
  • IP 68 certified
Download Datasheet
Download User Manual

Tech Specs

  • PROCESSOR

  • Qualcomm® Snapdragon QCM6490 and SDR753 platform

  • Full 3GPP Rel 15 support
  • RAM

  • 8 GByte

  • CAMERA

  • Front camera – 5 MP

  • Main camera – 13 MP with LED flash and phase detection autofocus
    optimized for ECOM scanning solutions

  • Video recording resolution – 1080p, 720p, 480p (main camera)

  • INTERNAL DATA MEMORY

  • 128 GB

  • SENSORS

  • Biometric, Accelerometer, Gyrometer, Magnetometer, Barometer, Proximity, Ambient light

  • DISPLAY

          Can be operated while wearing gloves

          Extreme shock and scratch resistant Gorilla® glass

  • Touchscreen technology – Capacitive multitouch

  • Screen diagonal – 15.24 cm / 6 inch

  • Resolution – 1080 x 2160 pixels

  • KEY

  • Programmable push-to-talk, alarm and multifunction button

  • Power button with fingerprint sensor

  • Volume up/down

  • BATTERY TYPE

  • Li-Ion battery , 4400 mAh

  • I/O PORTS

  • Charging via USB Type C + robust charging pads for charging in docking station (accessory)

  • 3.5 mm audio interface, supporting legacy and standard 3.5mm audio accessories and updated PTT accessories through new, specific audio interface

  • OPERATING SYSTEM

  • Android™ 13

  • Android™ Enterprise Recommended verified device

  • AMBIENT TEMPERATURE

  • -20 … 60 °C (-4 … 140 °F)

  • DEGREE OF PROTECTION

  • IP68 according to EN/IEC 60529 , MIL-STD-810H

  • MASS

  • 400 g

  • DIMENSIONS

  • (W) 84 mm x (H) 172 mm x (H) 18 mm / 25 mm

Ex Certificates

ATEX Logo

ATEX (Europe)

  • II 2G Ex ic IIC T4 Gb
  • II 2D Ex ic IIIC T135°C Db
Download

IECEx (International)

  • Ex ia IIC T4 Gb
  • Ex ia IIIC T135°C Db
Download

NEC / CEC [MET]

  • Class I, Division 1, Groups A,B,C,D T4
  • Class II, Division 1, Groups E,F,G T4
  • Class III, Division 1
  • Class I, Zone 1, AEx ia IIC T4 Gb
  • Zone 21, AEx ia IIIC T135°C Db
  • Ex ia IIC T4 Gb
  • Ex ia IIIC T135°C Db
Download

Certificates and Manuals

  • EU Declaration of Conformity
Download
  • UN38.3 Confirmation
Download
  • Quick Start Guide
Download
  • Instruction manual
Download
  • Safety Manual
Download

Delivery Includes

  • Smart-Ex 03 DZ2 Camera only
  • Li-Ion battery
  • Charger
  • USB cable
  • Screwdriver
  • Documentation

Optional Accessories

  • RL ID01
  • EXT-C2LCOIL
  • Mini QD Loop
  • LH-Ex S03
  • LC-Ex S03 BC
  • LC-Ex S03 SC
  • CR-Ex S03 BC
  • CR-Ex S03 SC
  • Ex-BP S03s
  • TC S03
  • PC S03
  • PC TPRO
  • DS S03
  • DS-D S03-RSM01BT
  • DS-M S03
  • DS S03 MDU PTT
  • VH-C S03
  • Table Stand
  • Standard Duty Pedestal Mount
  • Standard Duty Pedestal Mount + Suction Cup
  • Pedestal Mount Accessories
  • VESA 75 mm / AMPS M4 Mounting Plate
  • Multiport Adaptoer EE-P5400
  • CC S01-R
  • PanzerGlass® Screen Protector S03
  • ST 02
  • Stylus Tether ST01
  • Torx T8
