Description
Product Features
Product Features
- Changeable Dual-SIM (eSIM + nano-SIM)
- Global Certification – Single platform
- Android 14
- 48 MP main camera with auto-focus + 16 MP front
- USB-C connector
- GPS / Glonass / Beidou / Galileo / QZSS / NFC technologies
- Replaceable 4500 mAh battery
- IP68
Tech Specifications
Technical
Specifications
- Android 14
- Qualcomm® QCM4490 3GPP Rel 16 support
- 6.3” capacitive multi-touchscreen
- RAM: 8GB
- ROM: Internal 128GB
- 5G / LTE standards (SIM-UNLOCKED)
- Bluetooth 5.2 with Low Energy support
- 802.11 a/b/g/n/ac/ax
- Battery @ 4500 mAh
Tech Specs
- PROCESSOR
Qualcomm QCM4490
- 3GPP Rel 16 support
- RAM
8 GByte
- CAMERA
Front camera – 16 MP
Main camera – 48 MP with autofocus and LED flash.
- DATA MEMORY
Internal 128 GB
- External microSD card up to 512 GB
- SENSORS
Biometric, Accelerometer, Gyrometer, Magnetometer, Barometer, Proximity, Ambient light
- DISPLAY
Can be operated while wearing gloves
Touchscreen technology – Capacitive multitouch
- Panel Type – TFT
Screen diagonal – 16 cm / 6.3 inch
Resolution – 1080 x 2340 pixels (FHD+)
- KEY
Programmable push-to-talk, alarm and multifunction button
Power button with fingerprint sensor
Volume up/down
- BATTERY TYPE
Li-Ion battery , 4500 mAh
- I/O PORTS
USB Type C
Charging pads for charging in docking station
Additional interface for peripherals
- MOBILE STANDARD
4G – LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B66, B71 LTE-TDD: B34, B38, B39,B40,B41, B42, B43, B48
5G – NR: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n28, n29, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
- WLAN
IEEE 802.11
2.4 GHz – b/g/n
5 GHz / 6 GHz: – a/ac/ax (Wi-Fi 6e)
- BLUETOOTH
5.2 with Low Energy support
- GPS SENSOR
GPS, GLONASS, Galileo, QZSS, BeiDou
- NFC
Yes
- SIM CARD
Dual SIM (eSIM + nano-SIM)
- OPERATING SYSTEM
Android™ 14 with GMS (Google Mobile Services)
Android™ Enterprise Recommended verified device
ARCore certification
- APPLICATIONS
Google ARCore ready
- IT SECURITY
Biometrics – Fingerprint sensor (side)
- Updates – Security Patches until March 2032
- AMBIENT TEMPERATURE
-20 … 50 °C (-4 … 131 °F)
- DEGREE OF PROTECTION
IP68 according to EN/IEC 60529
MIL-STD-810H
- MASS
365 g
- DIMENSIONS
(W) 86 mm x (H) 177 mm x (H) 17 mm
What's In the box?
Delivery Includes

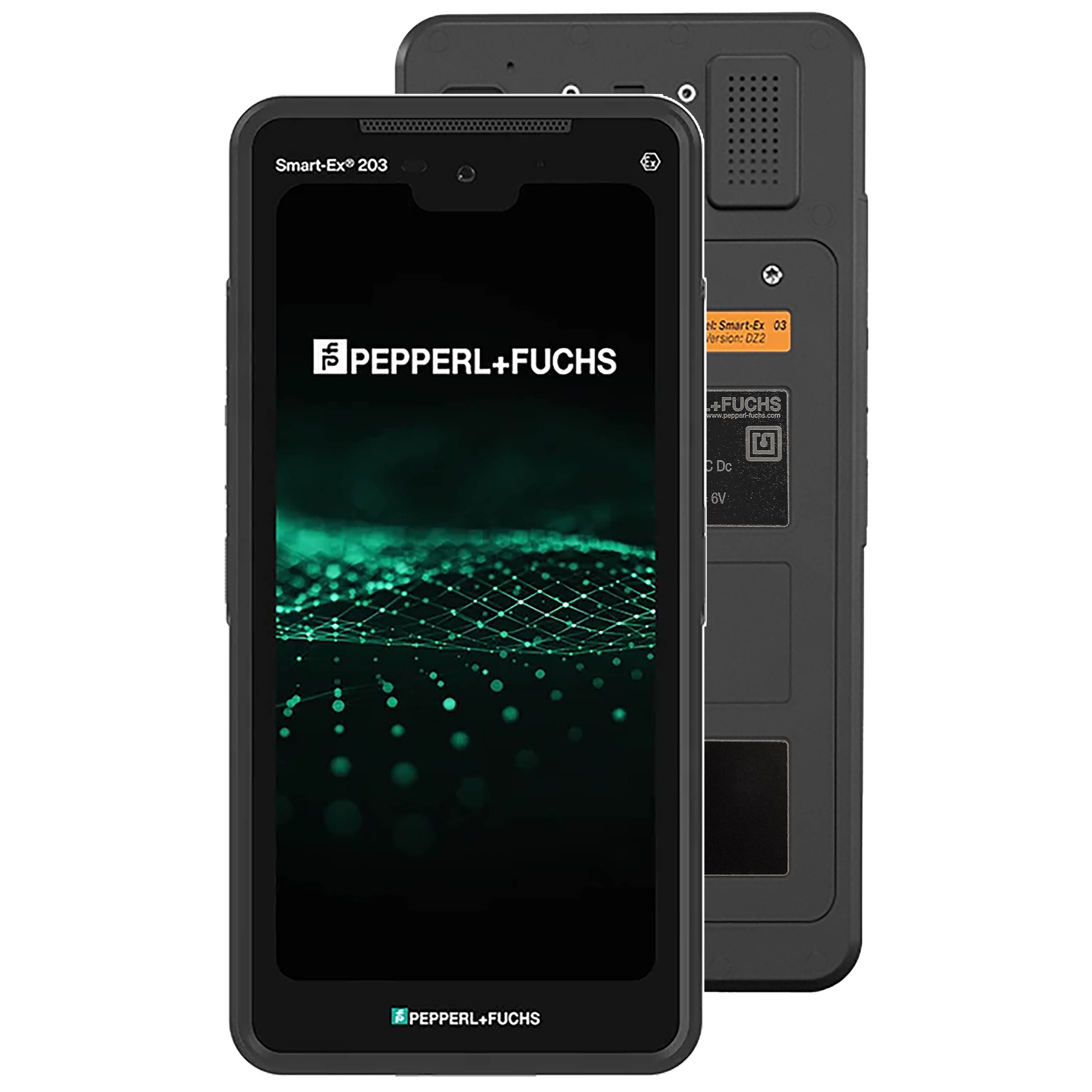

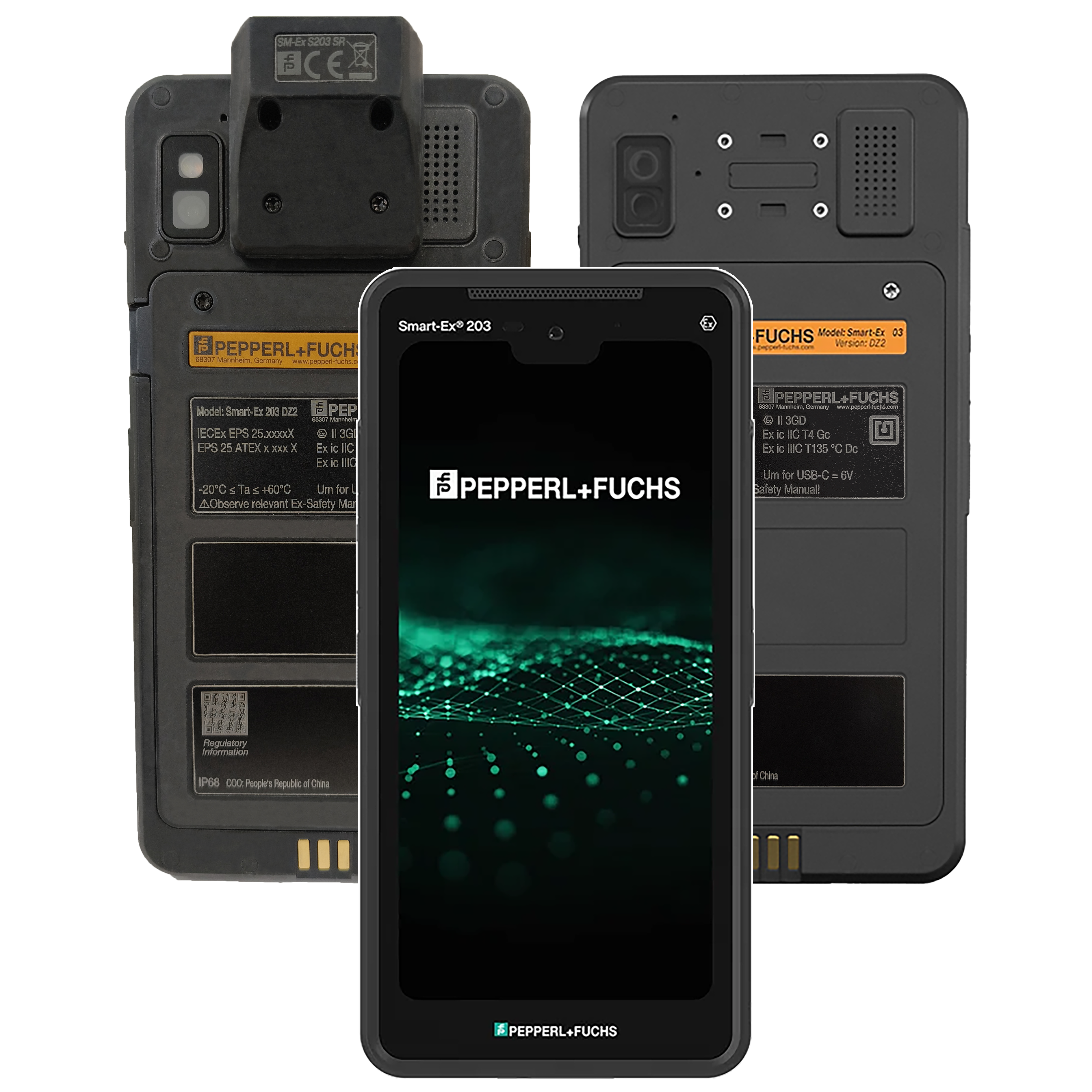

- Smart-Ex 203
- Li-Ion battery
- Charger
- USB cable
- Screwdriver
- Documentation
Optional Accessories
- RL ID01
- EXT-C2LCOIL
- Mini QD Loop
- LH-Ex S03

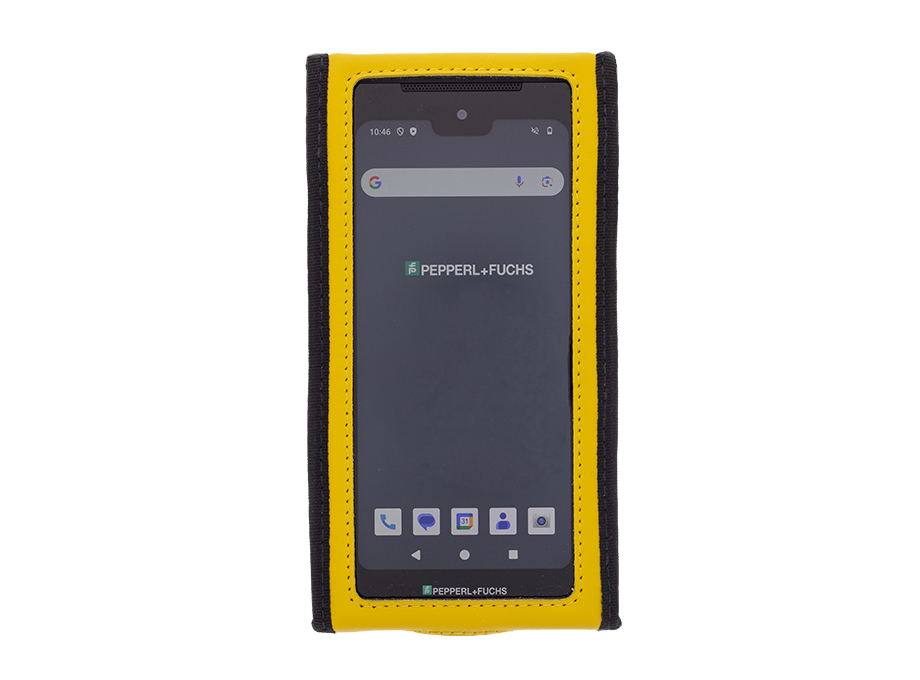

- LC-Ex S203 BC
- LC-Ex S203 SC

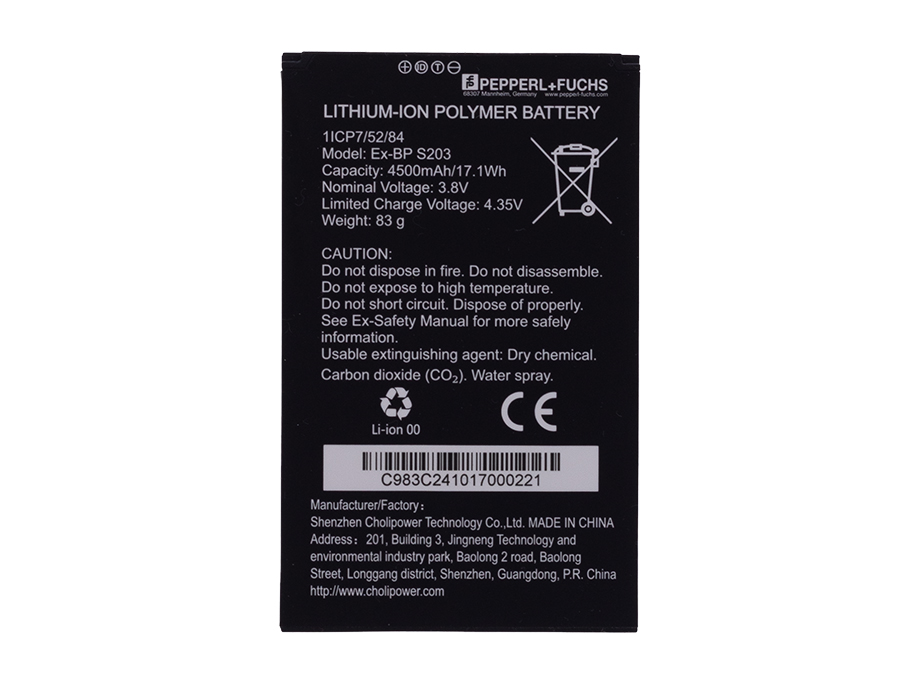

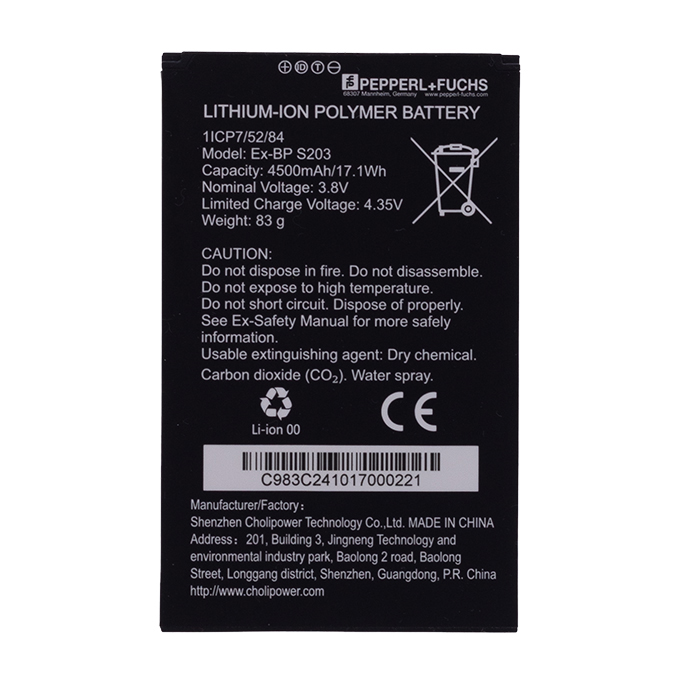

- Ex-BP S203
- TC S03
- PC S03
- PC TPRO
- DS S03
- DS-D S03-RSM01BT
- DS-M S03 / 203

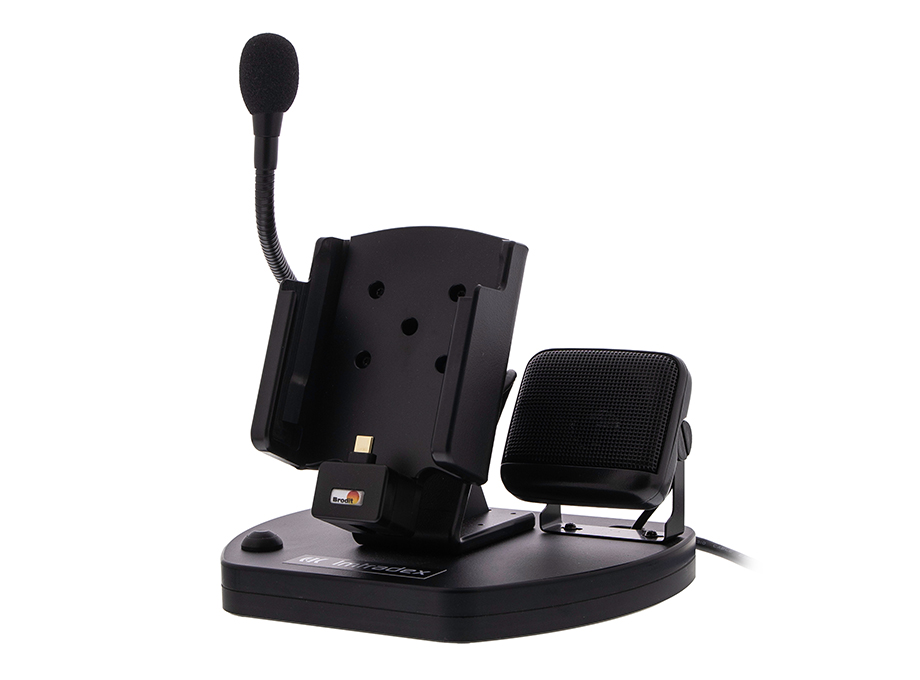

- DS S03 MDU PTT
- VH-C S03

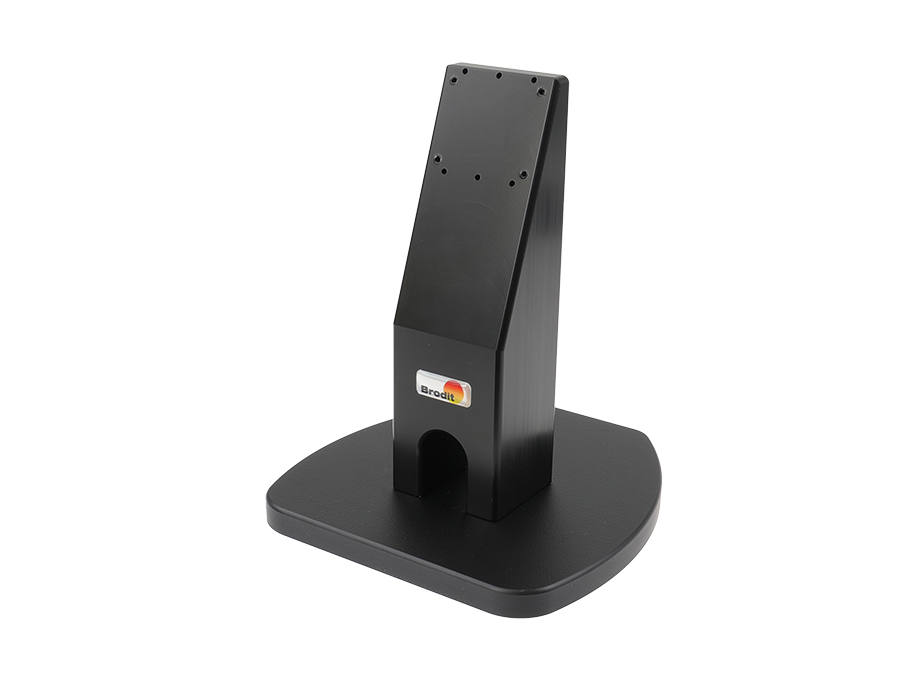

- Table Stand

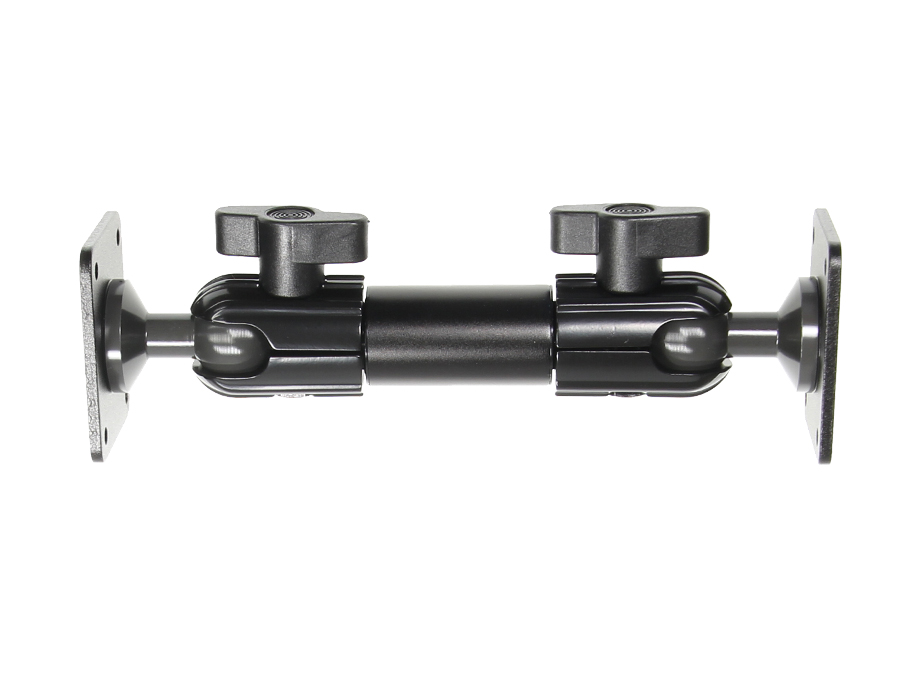

- Standard Duty Pedestal Mount

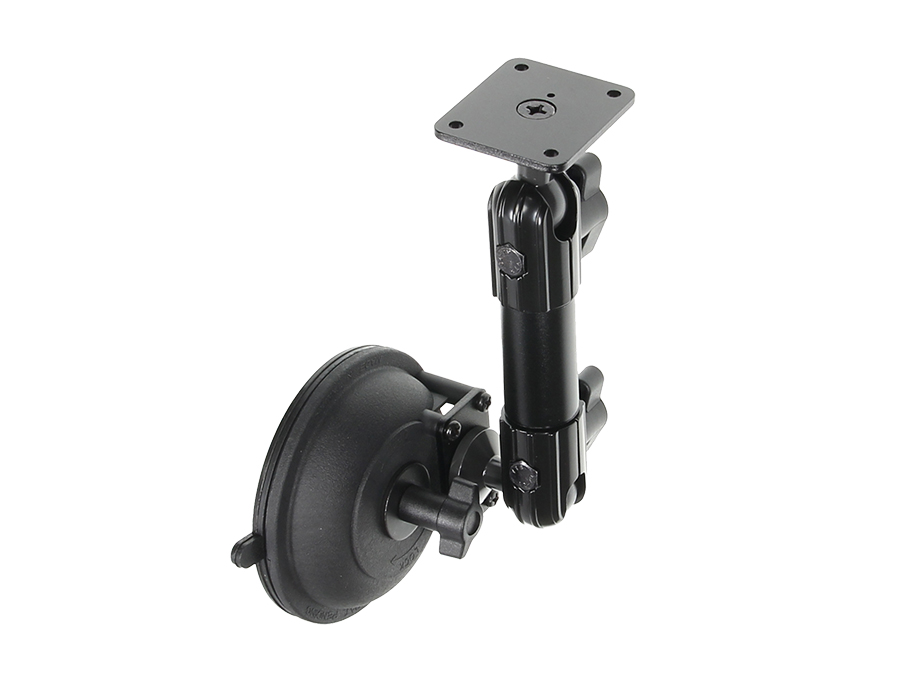

- Standard Duty Pedestal Mount + Suction Cup

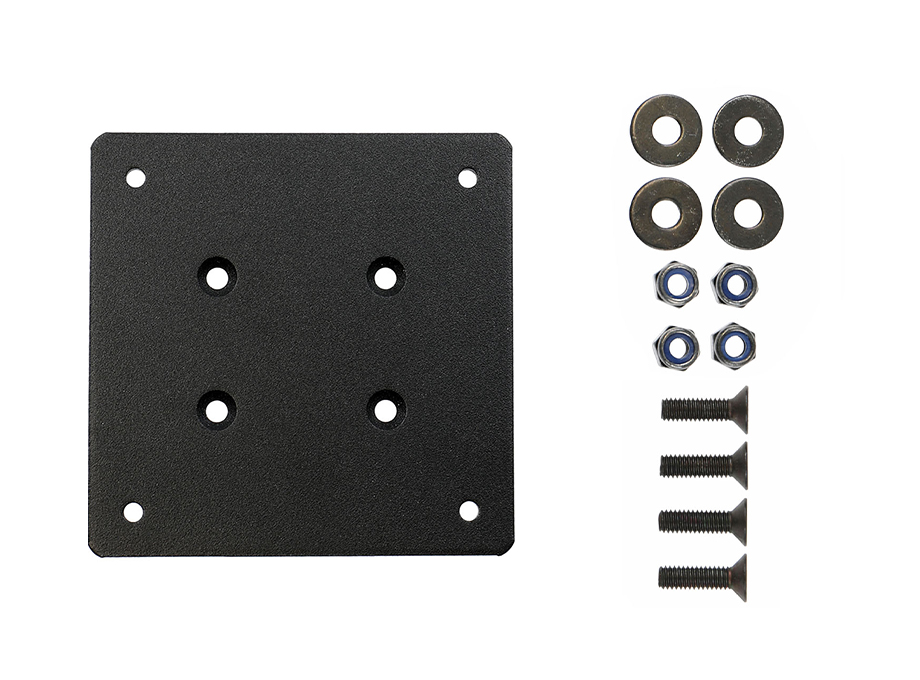

- VESA 75 mm / AMPS M4 Mounting Plate

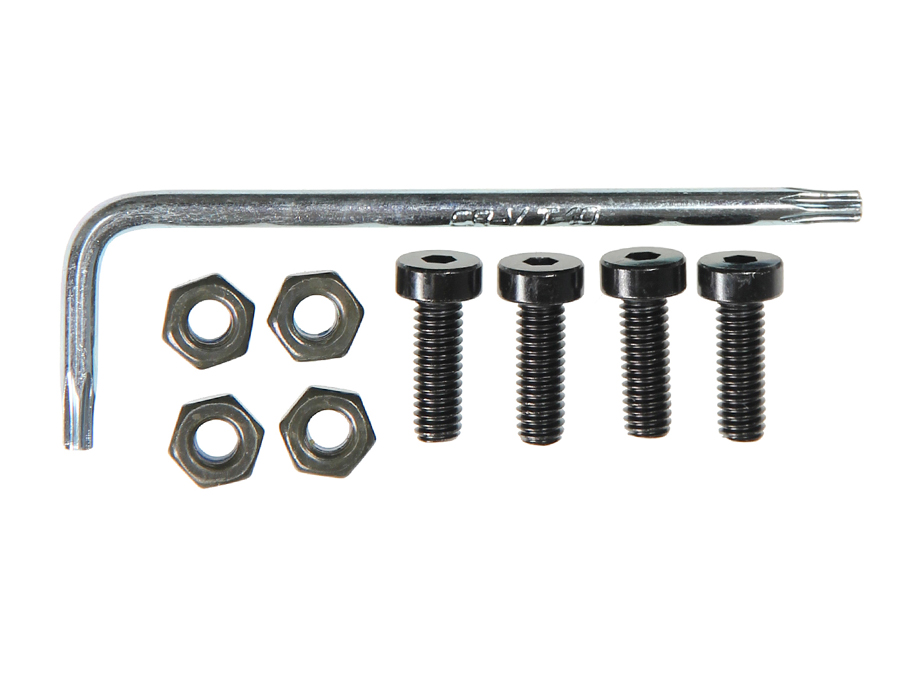

- Pedestal Mount Accessories

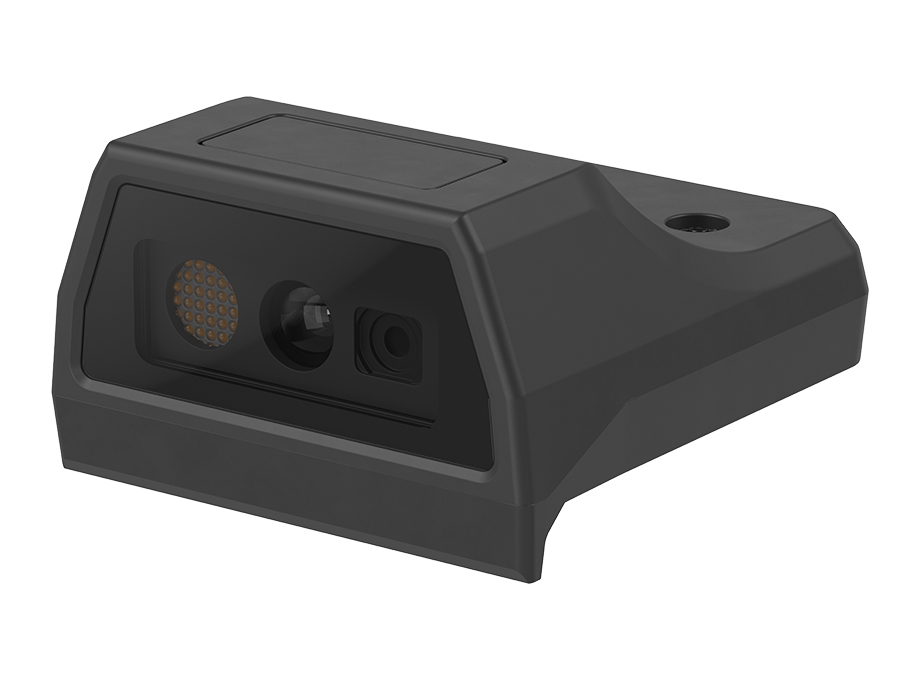

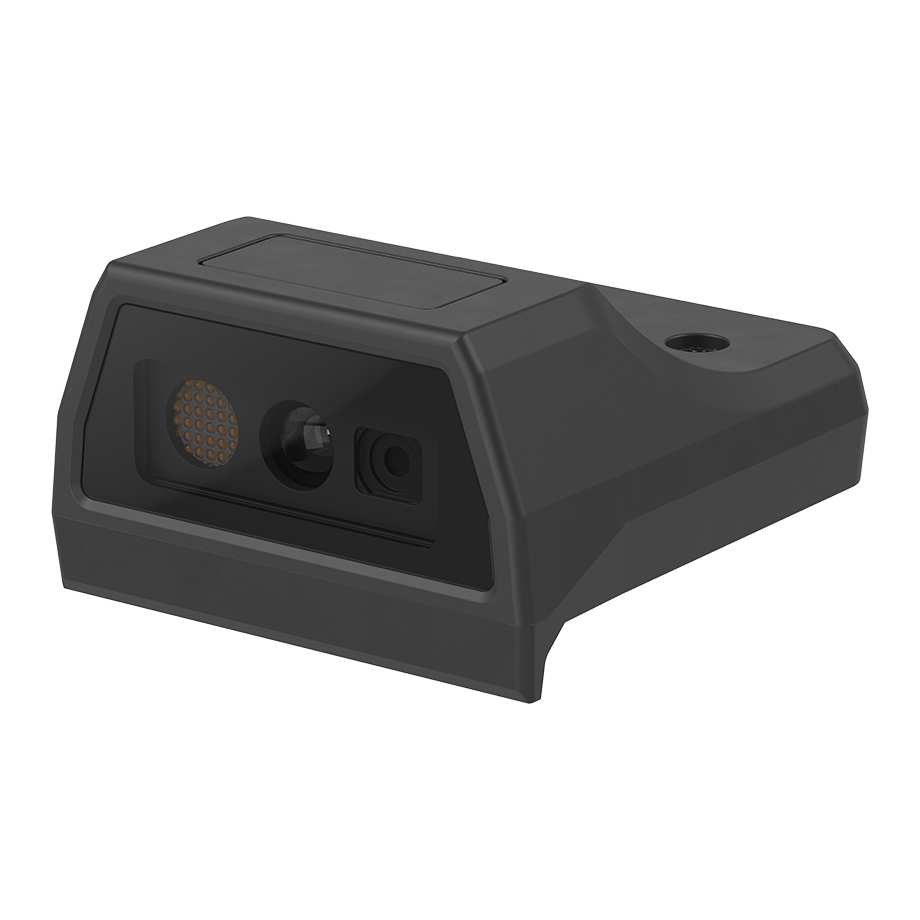

- SM-Ex S203 SR Scanner Module
- CC S01-R
- ST 02
- Stylus Tether ST01
- Torx T8
