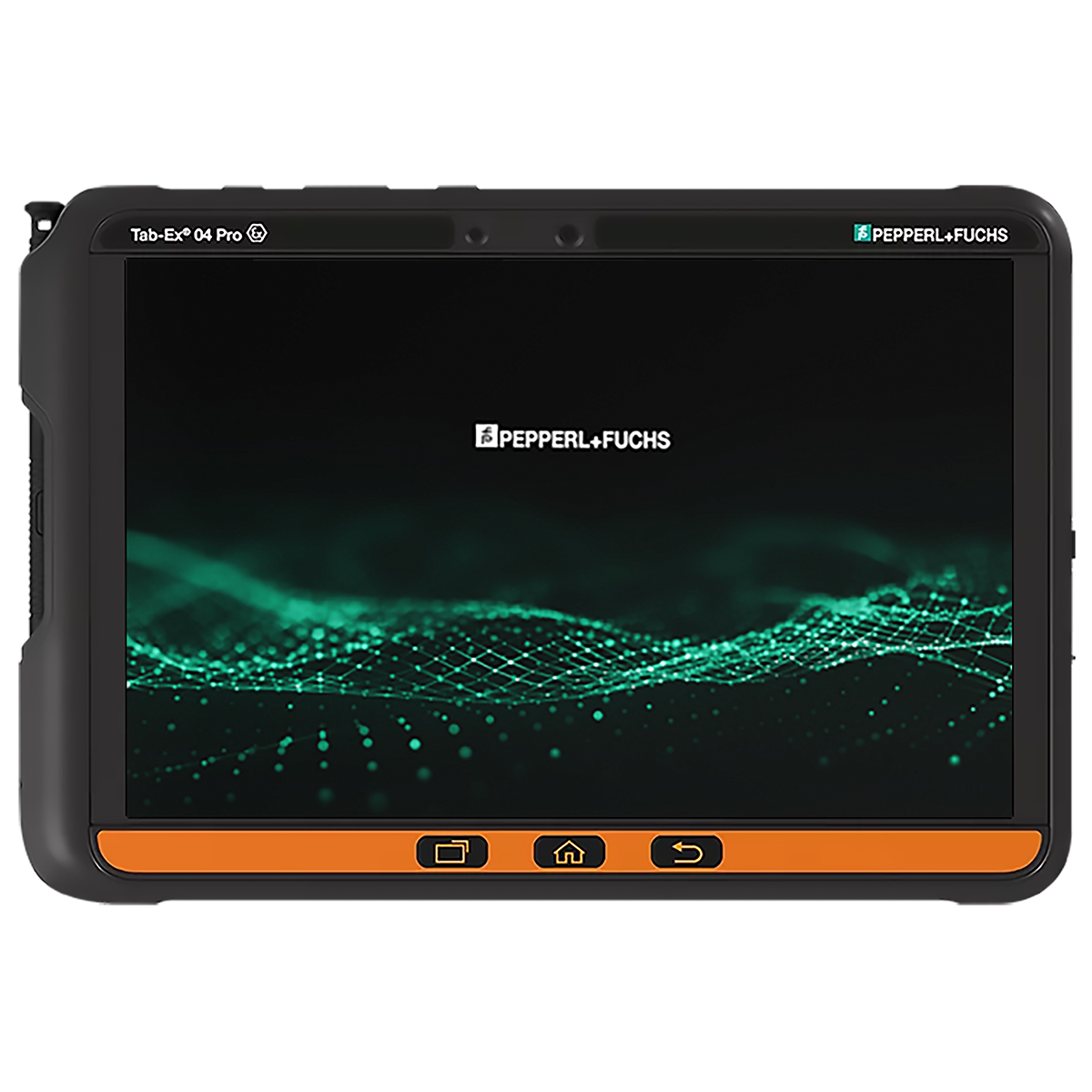

Tab-Ex® 04 Pro DZ2

Tab-Ex® 04 Pro DZ2

The Tab-Ex® 04 Pro from the Pepperl + Fuchs brand expands the Tab-Ex series Android tablet for hazardous areas.

The Tab-Ex® 04 Pro’s large display is ideal for demanding applications and for accessing web-based content. In addition, it allows employees to easily transit from working in the field to working at the office. Supported by Samsung DeX, the tablet allows a full desktop experience.

Description

Product Features

  • Rugged 10.1 ” (25.66 cm) tablet for hazardous areas
  • Fast data connection with 5G and Wi-Fi 6
  • Latest available Android™ version for this device
  • 13 MP rear camera + 8 MP front camera
  • Replaceable SIM

Designed for Industry 4.0

Pepperl & Fuchs developed the Tab-Ex® 04 Pro to keep up with Industry 4.0 and the associated demands on mobile devices. The new tablet enables customers to meet the challenges of digitalization while simplifying the way employees work in increasingly complex environments.

The tablet’s 10-inch screen is perfectly suited for displaying and interacting with interactive, web-based, and augmented reality content and apps, even in hazardous areas.



ARCore supported

With ARCore, the Tab-Ex® 04 Pro is designed for augmented reality applications and other Industry 4.0 tasks. This makes the device a useful tool today and for applications in the future. The device also supports lone worker concept, which means it can protect employees distributed across a wide geographical area.



Samsung DeX

MAX PERFORMANCE AND FLEXIBILITY

With the help of Samsung DeX mode, users can connect the tablet easily to a large screen (HDMI capable) via the Multiport DeX Adapter, wireless keyboard and wireless mouse for a complete desktop experience.

The powerful replaceable battery with a capacity of 7,400 mAh ensure smooth operation and 15 hours of runtime.

The easy-to-use Pogo pin handles charging and data transfers for the tablet. Additionally – the Tab-Ex® 04 Pro is equipped with a programmable button for e.g. fast and effective emergency calls.

High Security
Standards &
Reliability

PROTECTED FROM THE INSIDE OUT

The combination of Samsung Knox and the Google Android™ operating system guarantee high data and device security – protecting business data and processes. The multilayered Knox security measures also provide baseline protection against malware, privacy hacks and other threats.

What’s with KNOX-capable device?

Additionally, the Knox-certified device supports biometric authentication via facial recognition.

  • Based on Samsung’s state-of-the-art Galaxy Tab Active Pro: Proven quality, compatibility and long-term partnership
  • Reliable security update plan
  • Programmable key (“red button”) – e.g. for emergency calls
  • Designed for extreme temperatures from -20 … +55 °C. Suitable for a wide range of industrial applications – worldwide
  • IP68: Water and dust resistant
  • MIL-STD810H certified

Technical
Specifications

  • Android™ 13 Operating System
  • RAM: 6 GB, internal data memory: 128 GB, with external microSD up to 1 TB
  • 7400 mAh battery / Runtime of up to 15 hours
  • IP 68

Rugged Specs

MIL-STD-810H (Pending)

IP 68 certified

Tech Specs

PROCESSOR

  • Octa-Core, 4 x 2.4 GHz + 4 x 1.8 GHz

  • Qualcomm Snapdragon SM7325-2-AB

RAM

  • WWAN: 6 GB

  • Wi-Fi: 6 GB

CAMERA

  • Front camera – 8 MP

  • Main camera – 13 MP Autofocus

  • Video recording resolution – UHD 4K (3840 x 2160 Pixel) @ 30 fps

INTERNAL DATA MEMORY

  • WWAN: 128 GB, available memory 104.6 GB

  • Wi-Fi: 128 GB, available memory 104.6 GB

OPTIONAL DATA MEMORY

  • Micro SD flash card up to 1 TByte

SENSORS

  • Accelerometer, barometer, position sensor, compass, hall sensor, ambient light sensor, proximity sensor

DISPLAY



          Can be operated while wearing gloves

  • Touchscreen technology – Capacitive multitouch

  • Type – TFT, LCD

  • Screen diagonal – 10.1″ (25.66 cm)

  • Aspect ratio – 21.6:18

  • Resolution – 1920 x 1200 (WUXGA)

  • Brightness – 480 cd/m2 (nit)

  • Colors – 16 Mio.

BATTERY TYPE

  • Li-Ion battery 28.12 WH 3.8 V 7400 mAh

OPERATING DURATION

  • up to 15 hours

MOBILE STANDARD

  • 2G – GSM: GSM 850, GSM 900, DCS 1800, PCS 1900

  • 3G – UMTS: B1 (2100), B2 (1900), B4 (AWS), B5 (850), B8 (900)

  • 4G – LTE FDD: B1 (2100), B2 (1900), B3 (1800), B4 (AWS), B5 (850), B7 (2.600), B8 (900), B12 (700),
    B13 (700 ), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900), B26 (850), B28 (700), B32 (1500), B66 (AWS-3)
    LTE TDD: B38 (2600), B40 (2300), B41 (2500)
    4 x 4 MIMO: B1 (2100), B3 (1800), B4 (AWS), B7 (2600), B66 (AWS-3), B38 (2600), B41 (2500)

  • 5G – 5G Sub6 FDD: n1 (2100), n3 (1800), n5 (850), n7 (2600), n8 (900), n20 (800), n28 (700), n66 (AWS 3)
    5G Sub6 TDD: n38 (2600), n40 (2300), n41 (2500), n77 (3700), n78 (3500)
    4 x 4 MIMO: n1 (2100), n3 (1800), n7 (2600), n66 (AWS-3), n38 (2600), n41 (2500), n77 (3700), n78 (3500)

WLAN

  • 802.11 a/b/g/n/ac/ax (2,4 GHz + 5 GHz), HE80, MIMO, 1024-QAM

BLUETOOTH

  • 5.2 with Low Energy support

GPS SENSOR

  • GPS, GLONASS, Beidou, Galileo, QZSS

USB

  • USB 3.2 (Type C)

CONNECTIONS

  • Wi-Fi Direct, NFC, ANT+

SIM CARD

  • Optional: 1x Nano SIM (4FF)

OPERATING SYSTEM

  • Android™

LANGUAGES

  • Deutsch , English (default)

SAFETY

  • Samsung KNOX 3.x

AMBIENT TEMPERATURE

  • -20 … 55 °C (-4 … 131 °F)

DEGREE OF PROTECTION

  • IP68

MASS

  • 930 g

DIMENSIONS

  • 170.2 mm x 243.5 mm x 9.9 mm

Ex Certificates

ATEX Logo

ATEX (Europe)

  • II 3G Ex ic IIC T5 Gc
  • II 3D Ex ic IIIB T80°C Dc

IECEx (International)

  • Ex ic IIC T5 Gc
  • Ex ic IIIB T80°C Dc
SGS Logo

SGS (NEC/CEC)

  • Class I, Division 2, Groups A,B,C,D T5
  • Class I, Zone 2, Group IIC, T5

Certificates and Manuals

EU Declaration of Conformity

UN38.3 Confirmation

Quick Start Guide

Instruction manual

Safety manual

Safety instruction ATEX/IECEx

Safety instruction SGS (NEC/CEC)

Delivery Includes

  • Tab-Ex 04 Pro incl. battery
  • S Pen
  • Charger
  • Documentation

Accessories

  • LC TPRO X2
  • BP T04PRO X2 Li-Ion (Global)
  • DC TPRO X2
  • VH TPRO X2 (Cigarette Lighter Connector)
  • Passive Holder with tilt swivel
  • Table Stand
  • Multiport Adapter EE-P5400
  • PSPA1C1GE-R
