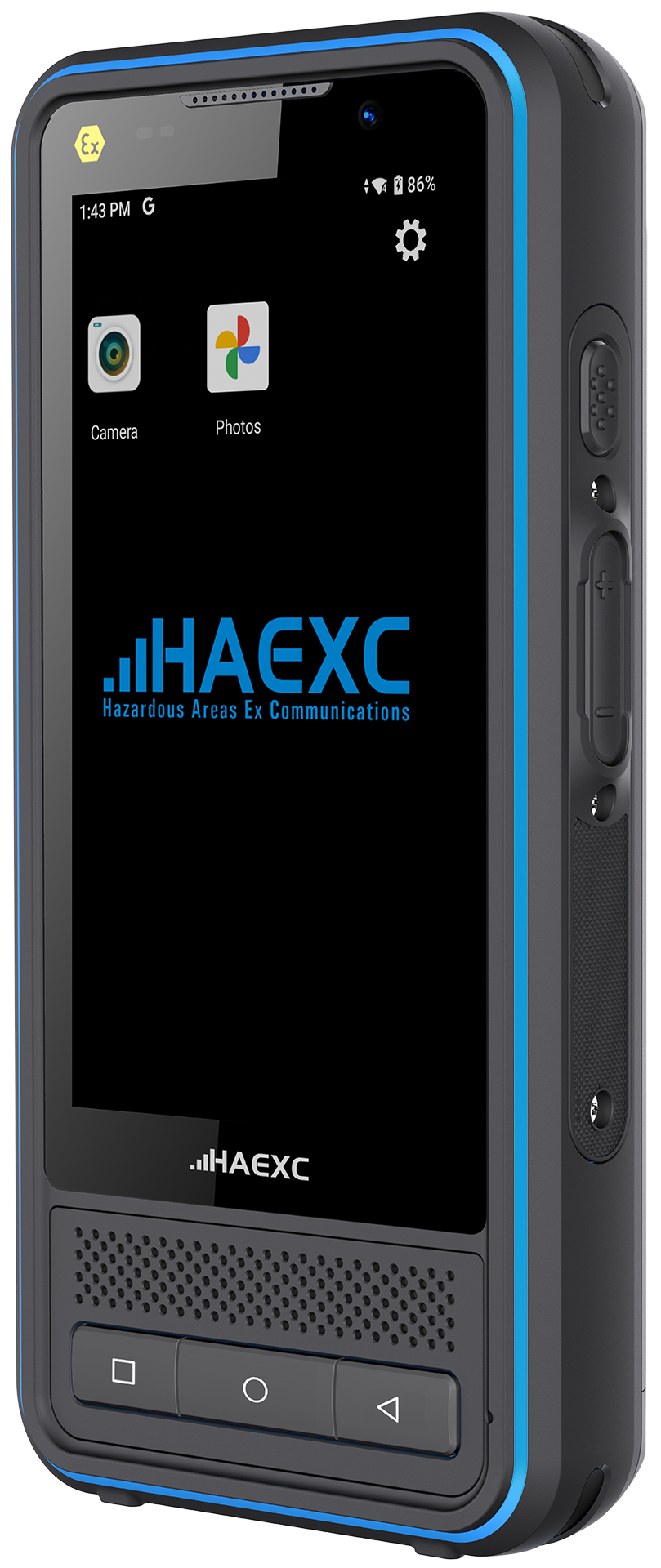

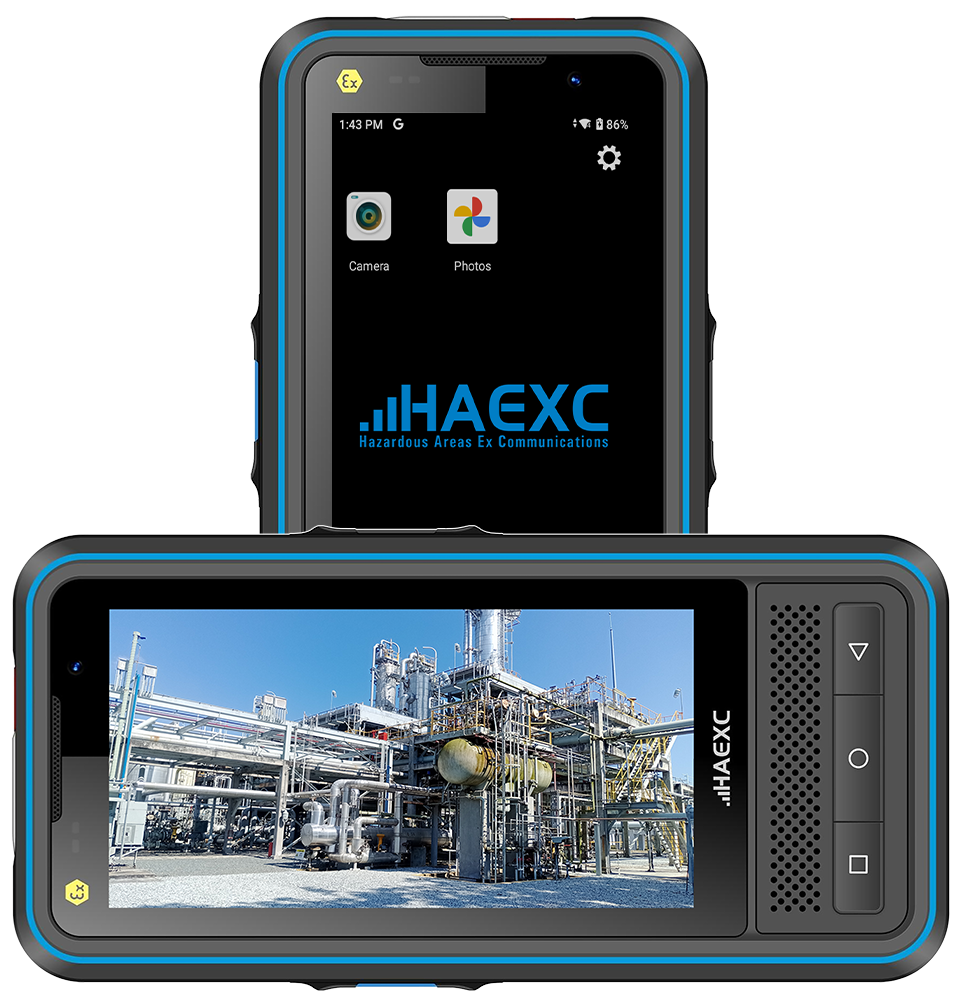

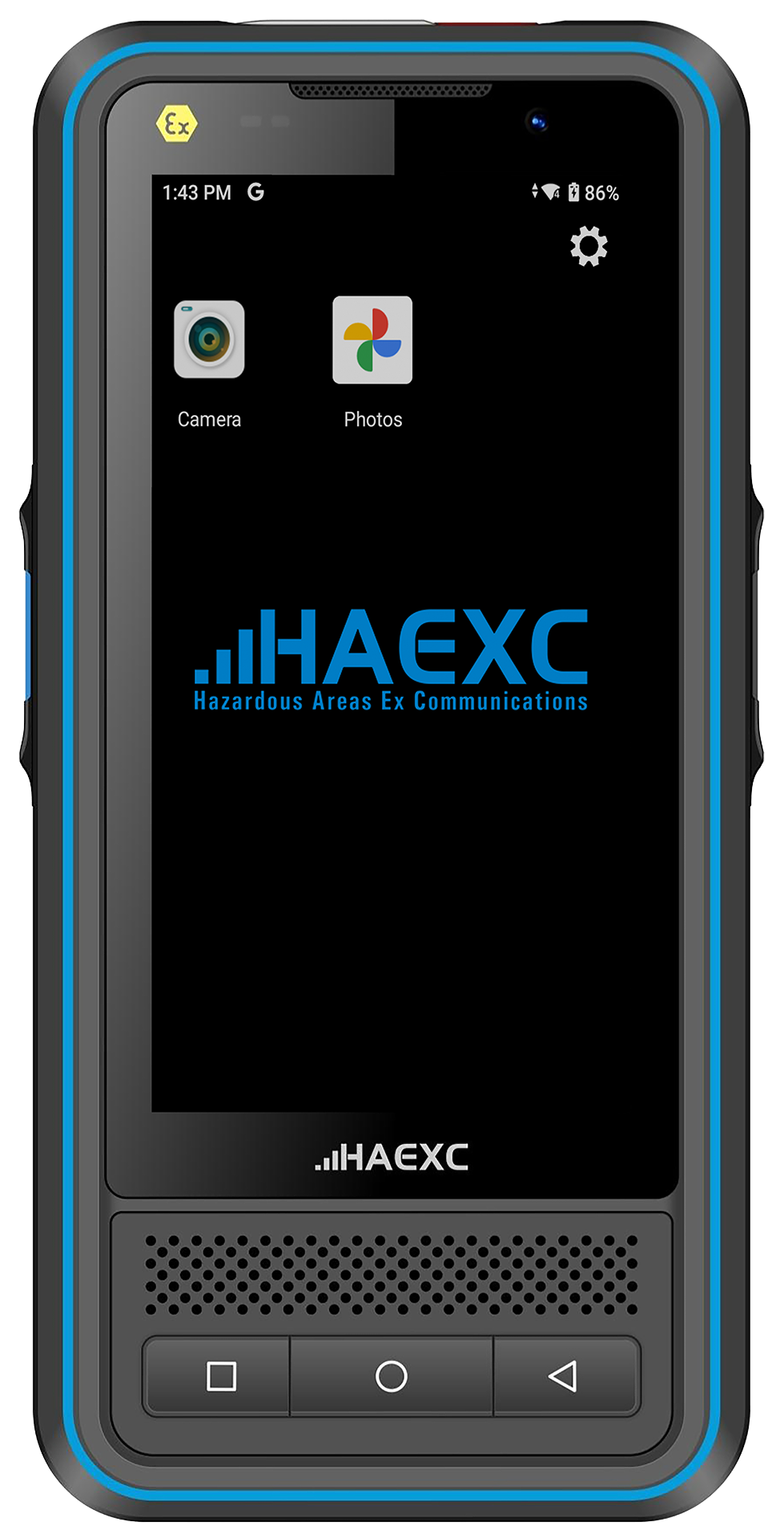

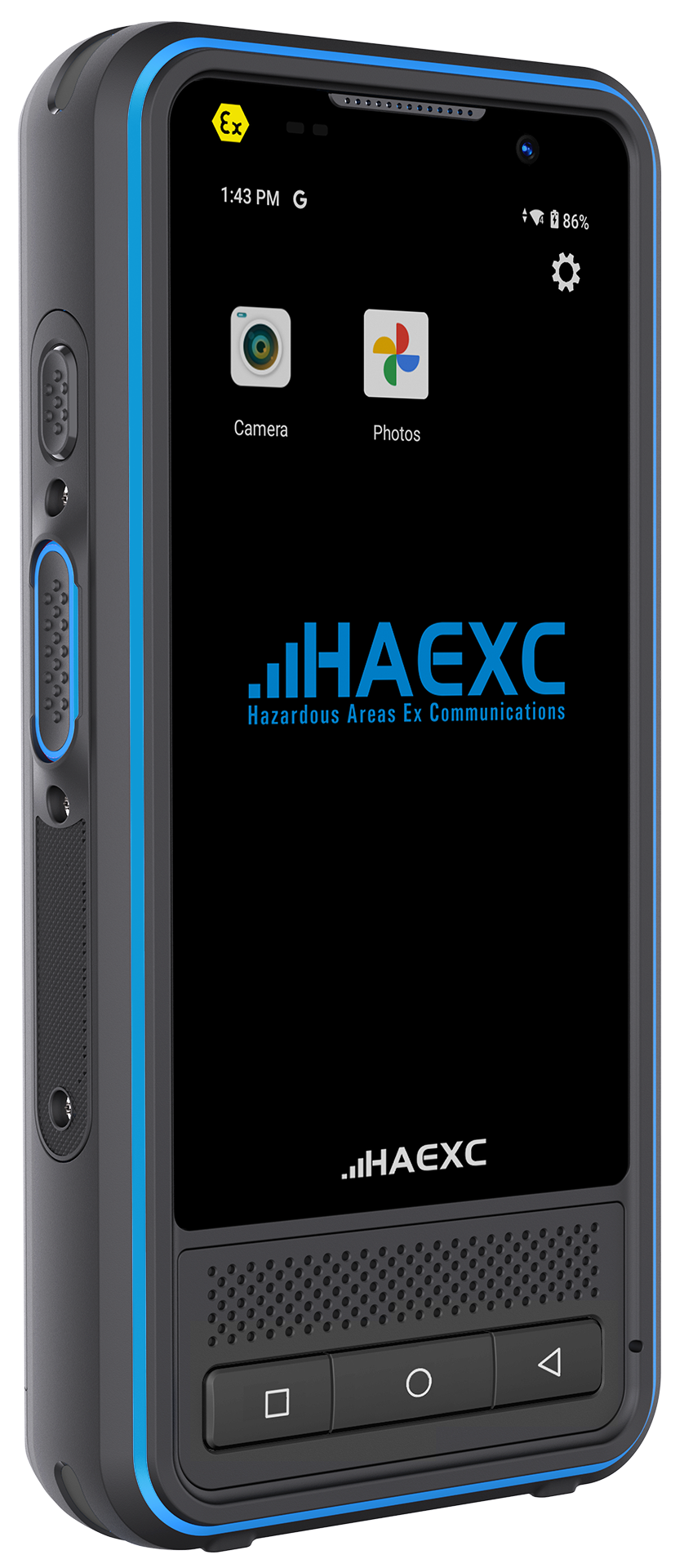

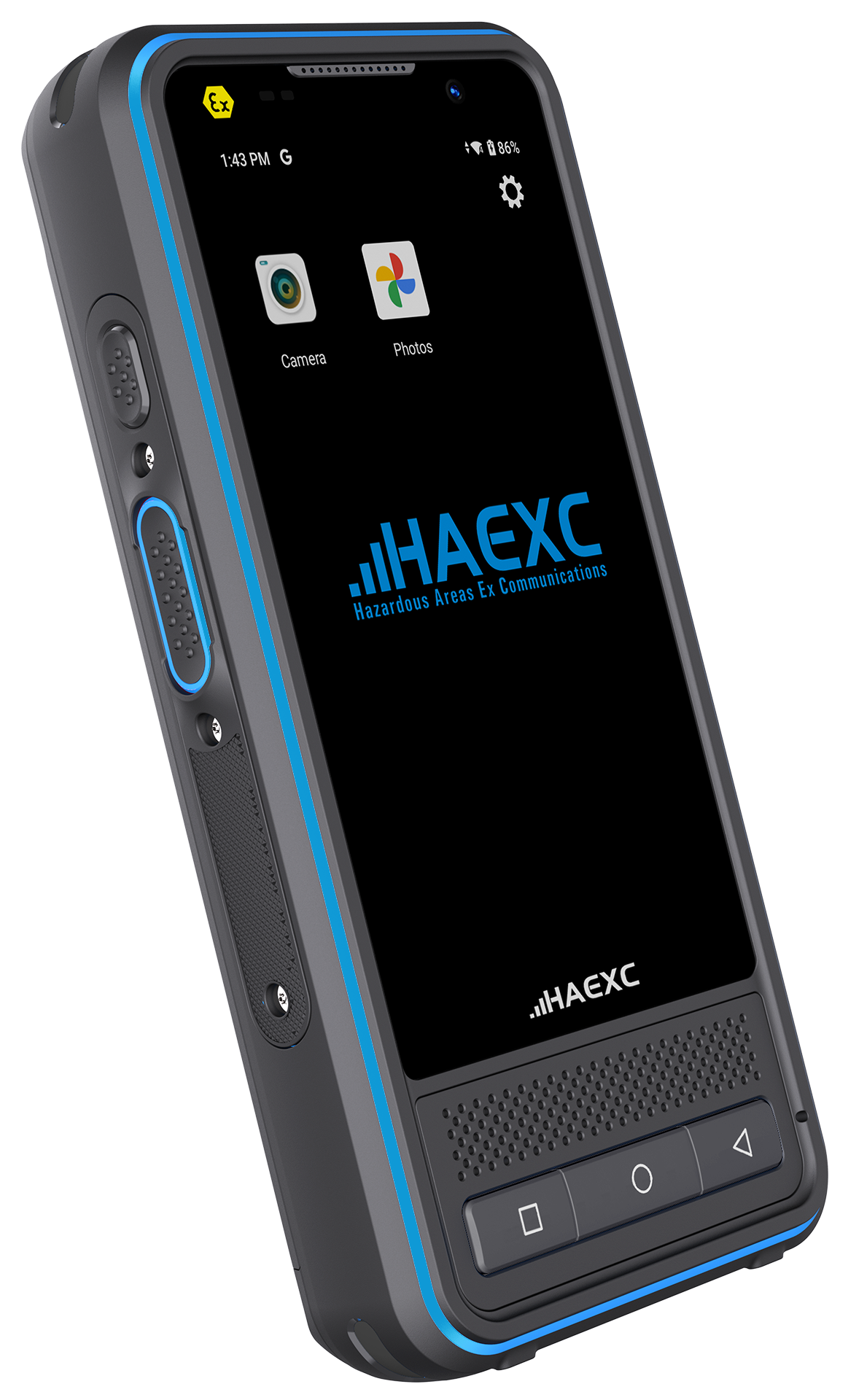

HAEXC SP104Ex (Camera Mode Only) – Designed for Hazardous Environments
Certified for Zone 1/21, the SP104Ex Camera Mode Only delivers rugged durability, intrinsic safety, and uncompromised imaging performance in a compact and robust form factor. Equipped with high‑resolution digital imaging capabilities, dedicated PTT and SOS buttons, plus IP68 protection, it ensures dependable visual documentation and monitoring for mission‑critical industrial operations.

Description

Product Features

  • Dual-SIM (nano-SIM)
  • Global Certification – Single platform
  • Android 14
  • 50 MP rear (Auto Focus) + 8 MP front
  • USB-C connector
  • Replaceable 4000 mAh battery
  • IP68

Technical
Specifications

  • Android 14
  • MediaTek 6765 Octa Core 2.2 GHz
  • 4.0” LCD, Multi-Point Capacitive
  • RAM: 6GB
  • ROM: Internal 128GB
  • Bluetooth 5.1 (BLE)
  • WiFi 802.11 ac/a/b/g/n
  • Battery Li-Ion , 4000 mAh

Rugged Specs

Tech Specs

  • MediaTek 6765 Octa Core 2.2 GHz

  • 6 GByte

  • Front camera – 8 MP

  • Main camera – 50 MP

  • 128 GB

  • Biometric, Accelerometer, Gyrometer, Magnetometer, Barometer, Proximity, Ambient light

  • 4.0” LCD

  • 540×1080 (VGA)

  • Multi-Point Capacitive

  • Gorilla Glass (Impact & Scratch Resistance)

  • Support Glove Mode

  • PTT push-to-talk

  • Power button

  • Volume up/down

  • SOS

  • Li-Ion battery , 4000 mAh , Removeable

  • Charging via USB Type C.

  • Magnetic Pogo Pin Charging Port (common to Docking Station).

  • 2G – GSM: 850 / 900 / 1800 / 1900 MHz

  • 3G – WCDMA: B1, B5, B8 (850 / 1900 / 2100 MHz)

  • 4G – LTE: B1, B2, B3, B4, B5, B7, B8, B18, B19, B20, B26, B28a&b, B29, B34, B38, B39, B40, B41

  • 802.11 ac/a/b/g/n

  • 5.1 (Bluetooth Low Energy)

  • GPS, A-GPS, BeiDou, GLONASS, Galileo

  • Yes

  • Dual SIM (nano-SIM)

  • Android™ 14

  • Yes
  • 20 °C to +55 °C
  • IP68 (Water & Dust) , Drop Test 1.2 M
  • 325 g

  • 148 mm x 70.5 mm x 25 mm

Ex Certificates

ATEX Logo

ATEX (Europe)

  • II 2G Ex ib IIC T4 Gb
  • II 2D Ex ib IIIC T130°C Db

IECEx (International)

  • Ex ib IIC T4 Gb
  • Ex ib IIIC T130°C Db

Certificates and Manuals

Delivery Includes

  • Handset

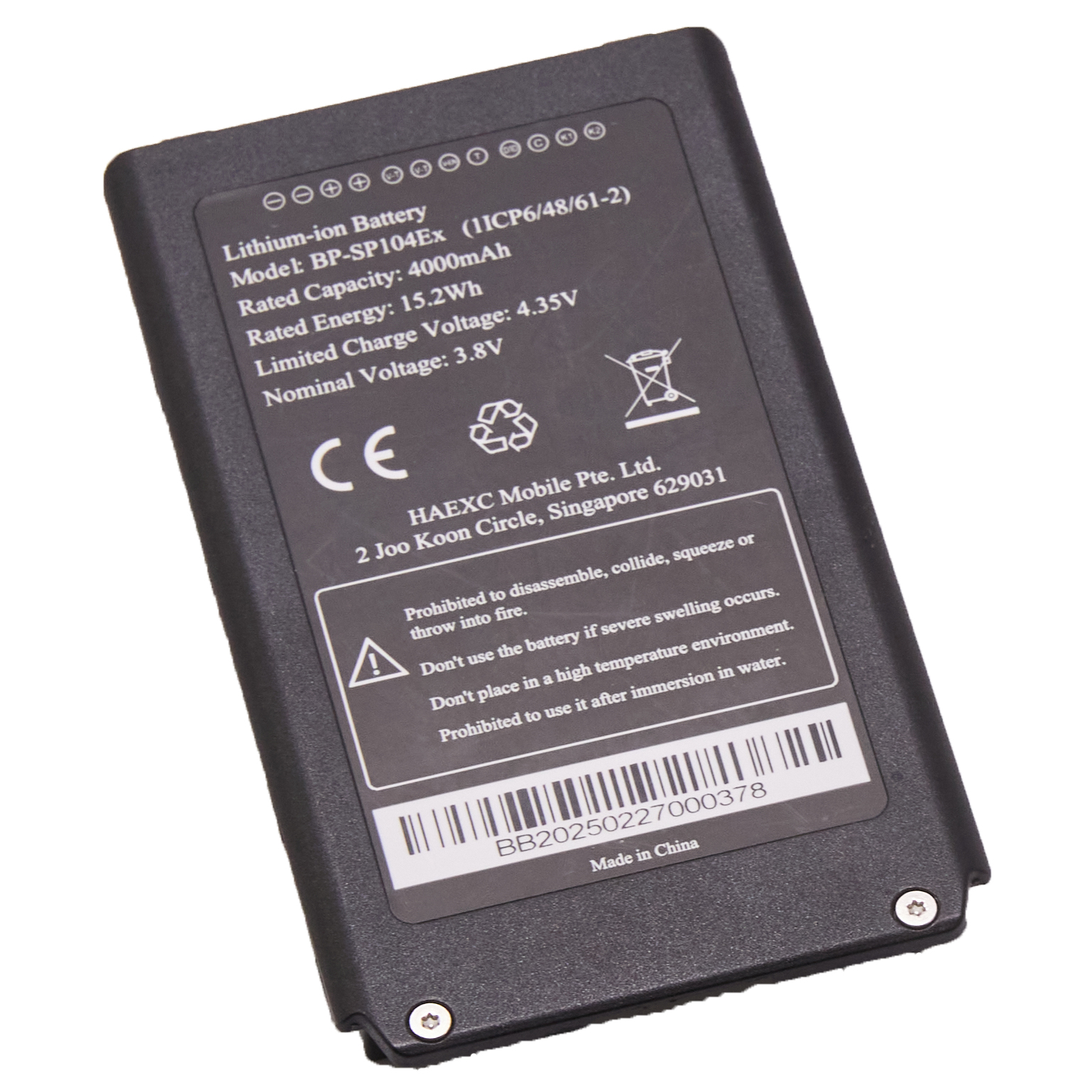

  • Battery
  • Travel Charger (With Multi-Adaptors)
  • Type-C USB Cable

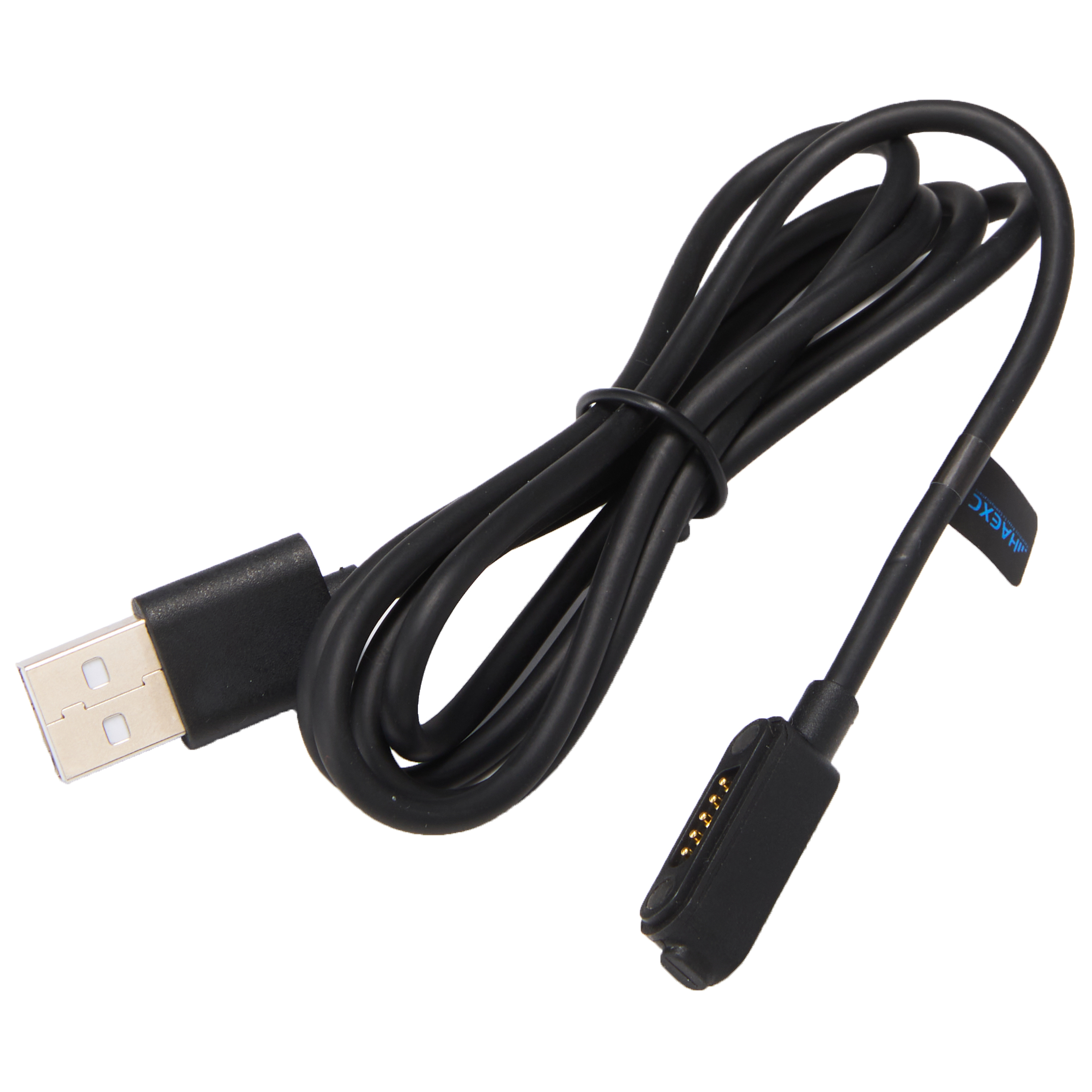

  • Magnetic USB Cable
  • Docking Station

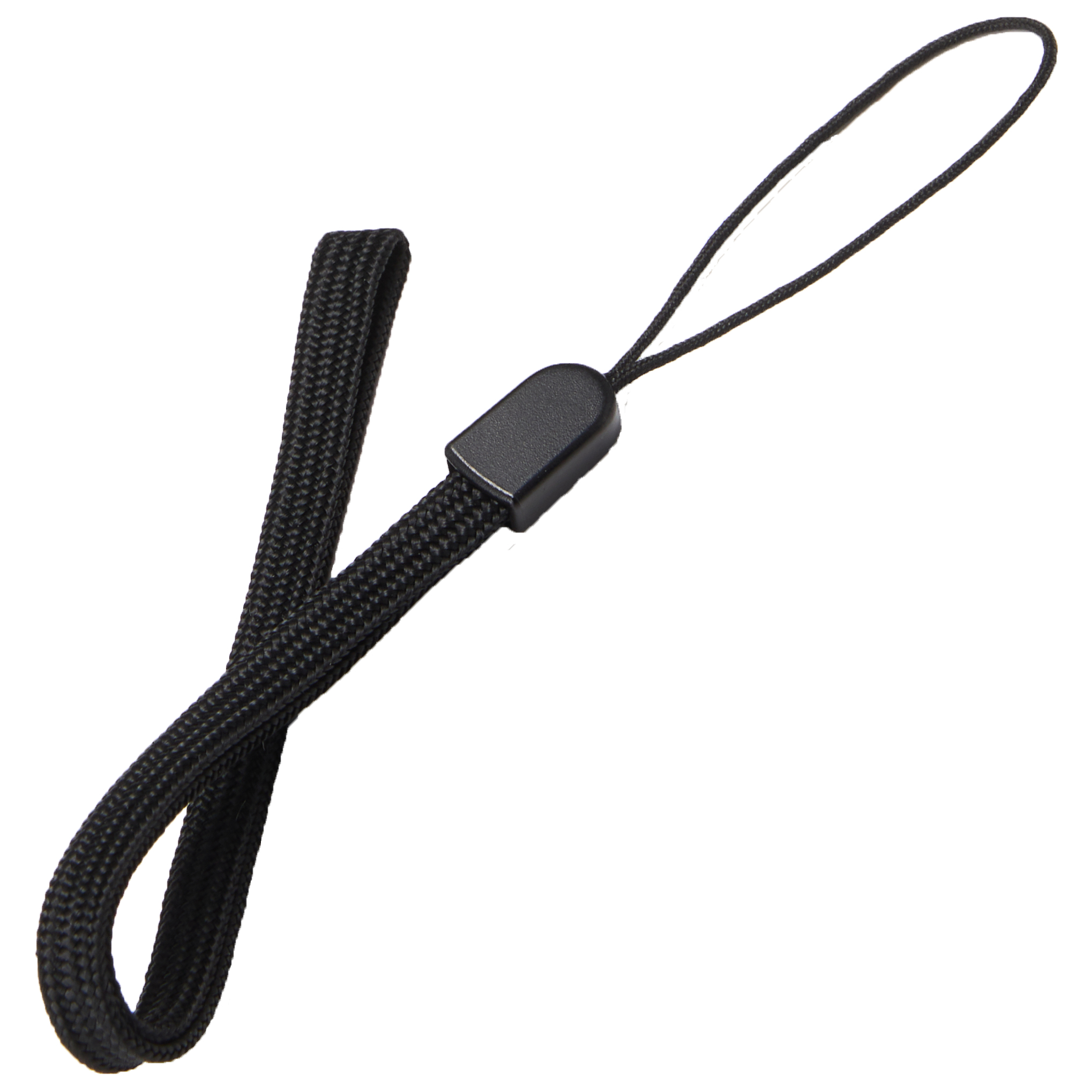

  • Wrist Strap

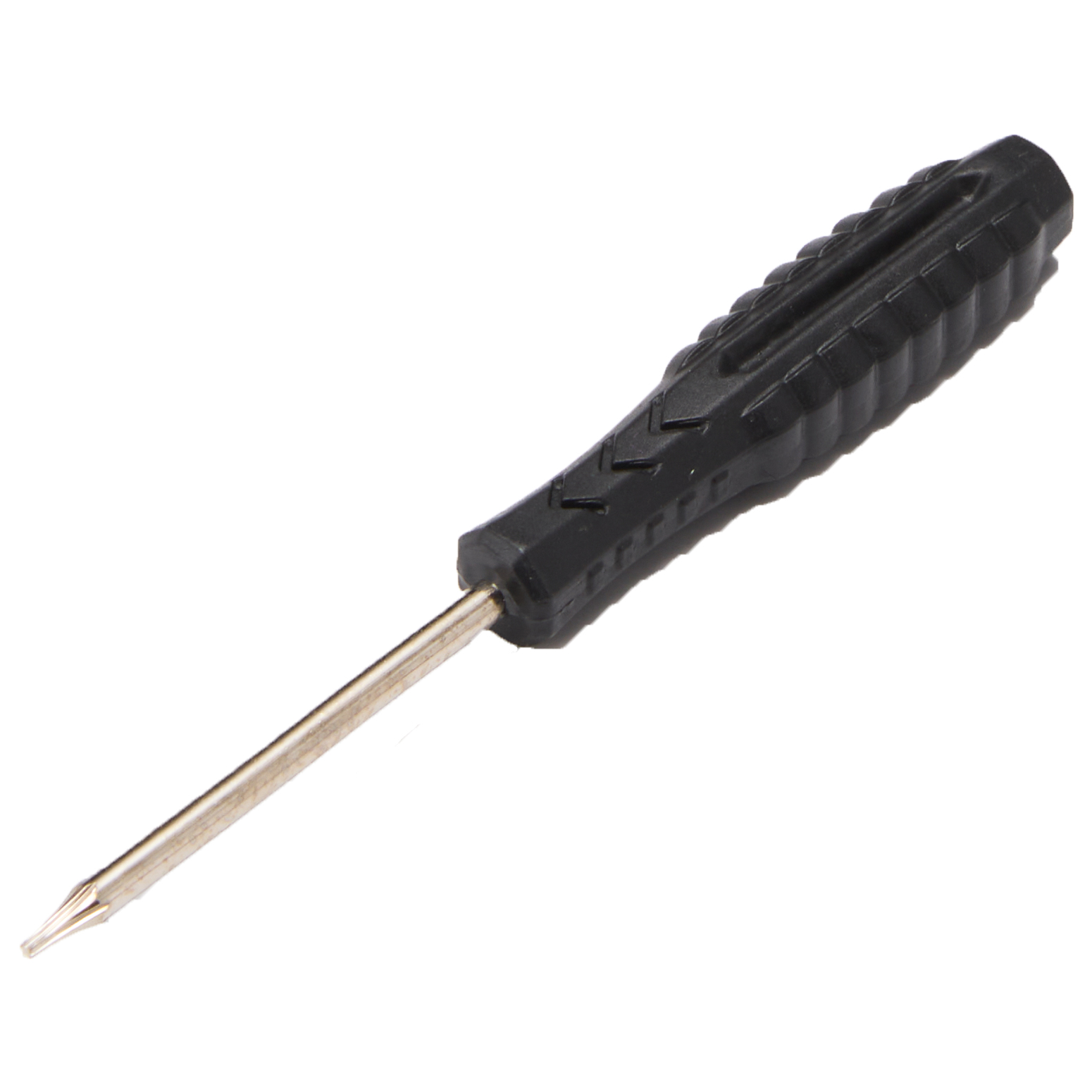

  • Screwdriver
  • Documents

Optional Accessories

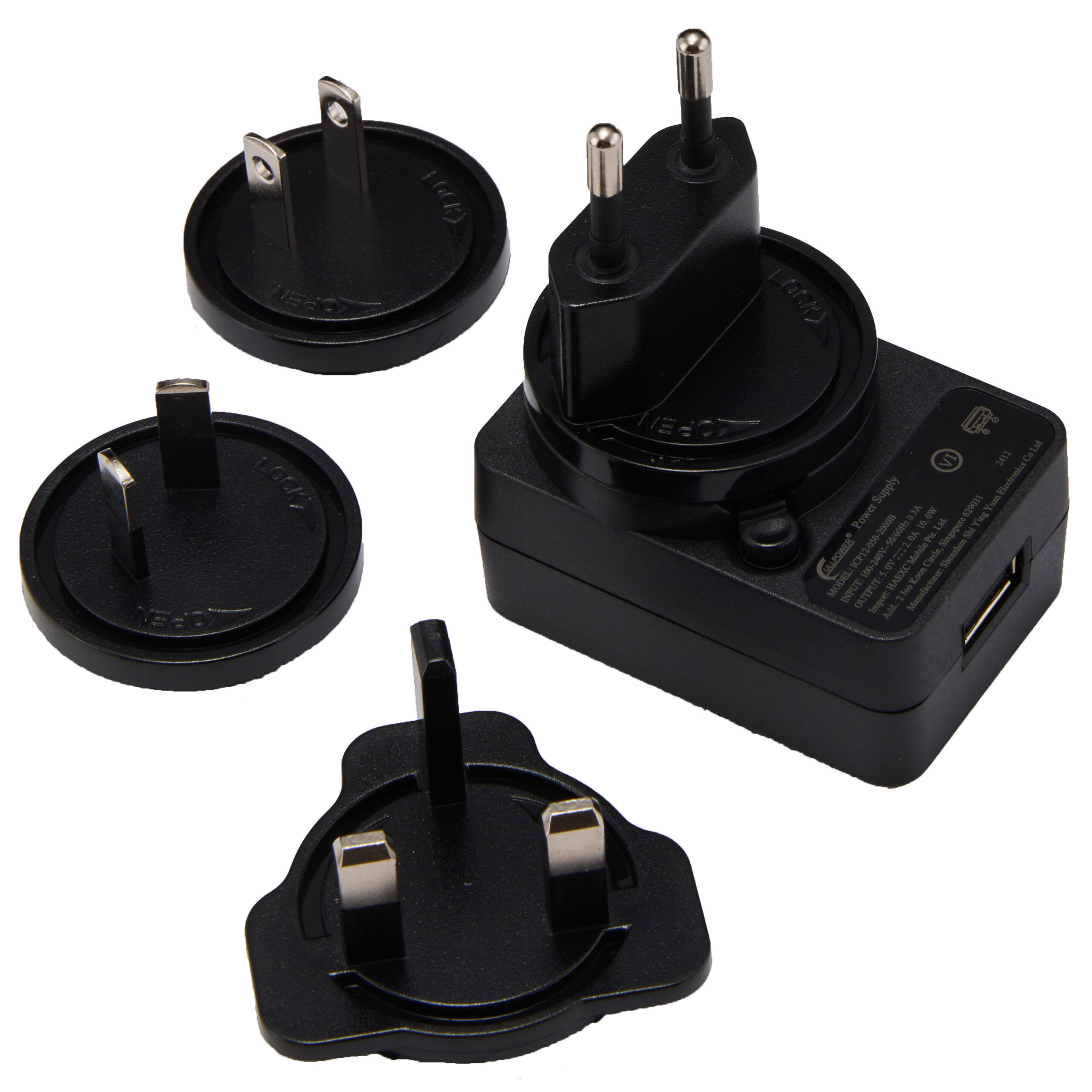

  • Travel Charger (With Multi-Adaptors)
  • Battery

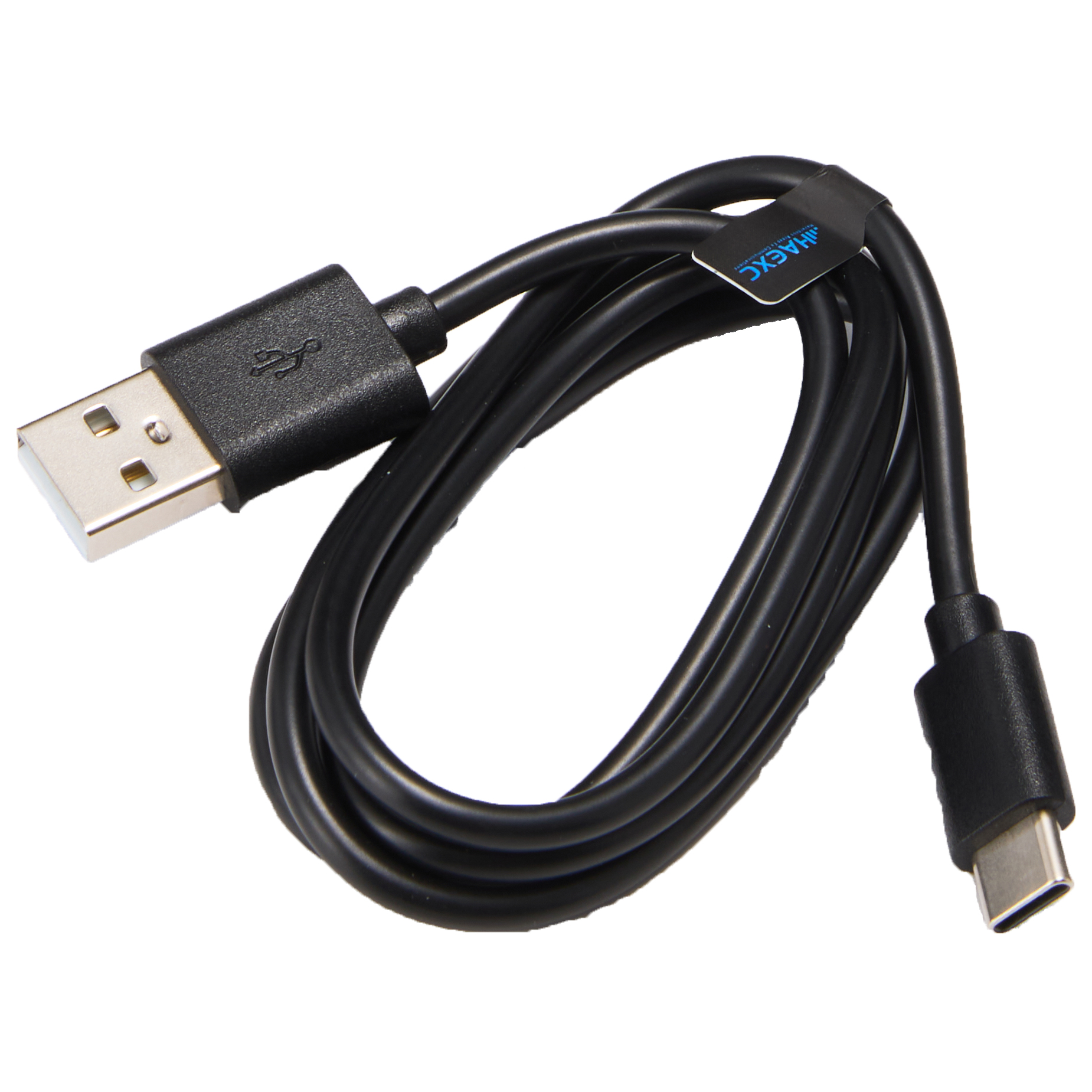

  • Type-C USB Cable
  • Magnetic Charging Cable

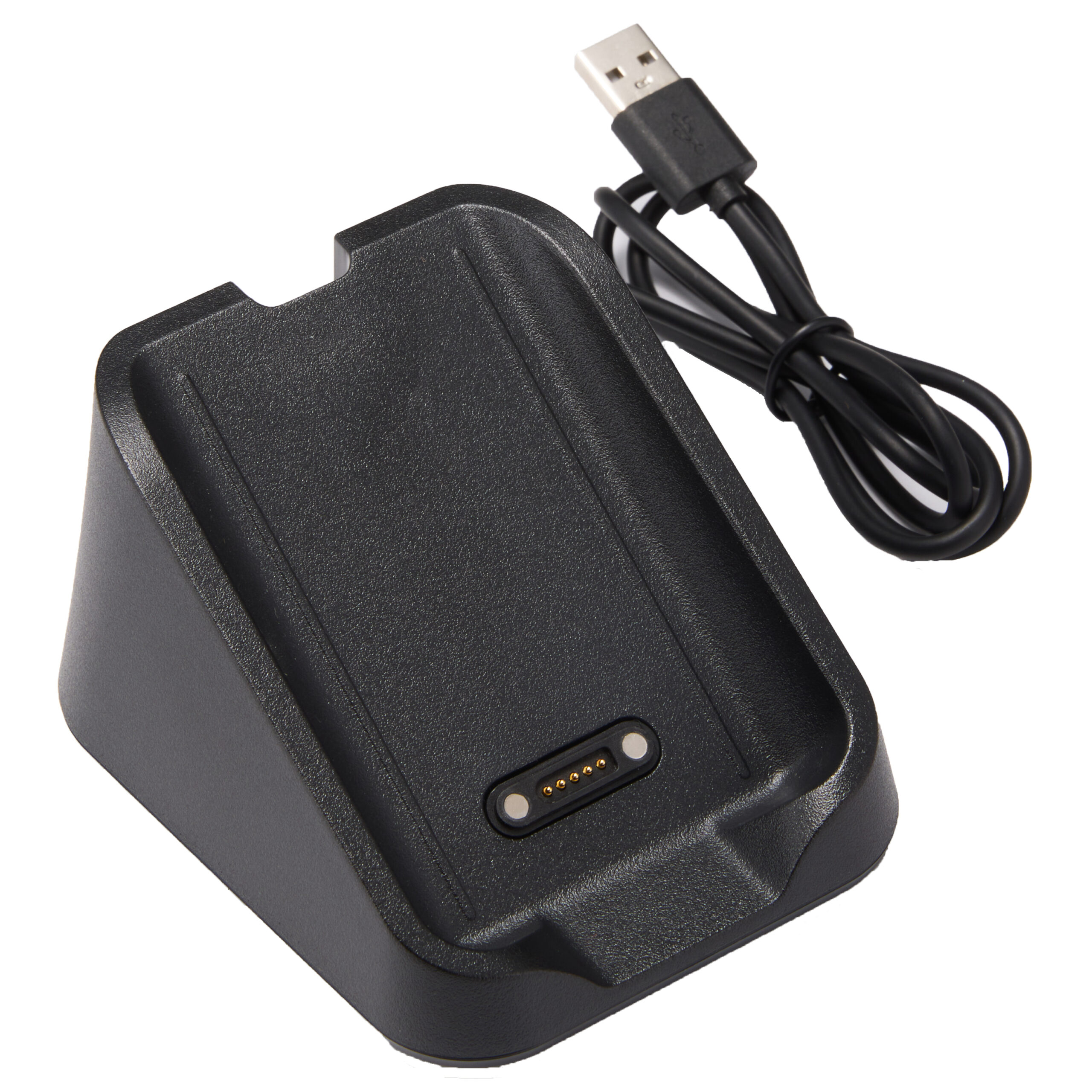

  • Docking Station
  • Screwdriver
  • Wrist Strap

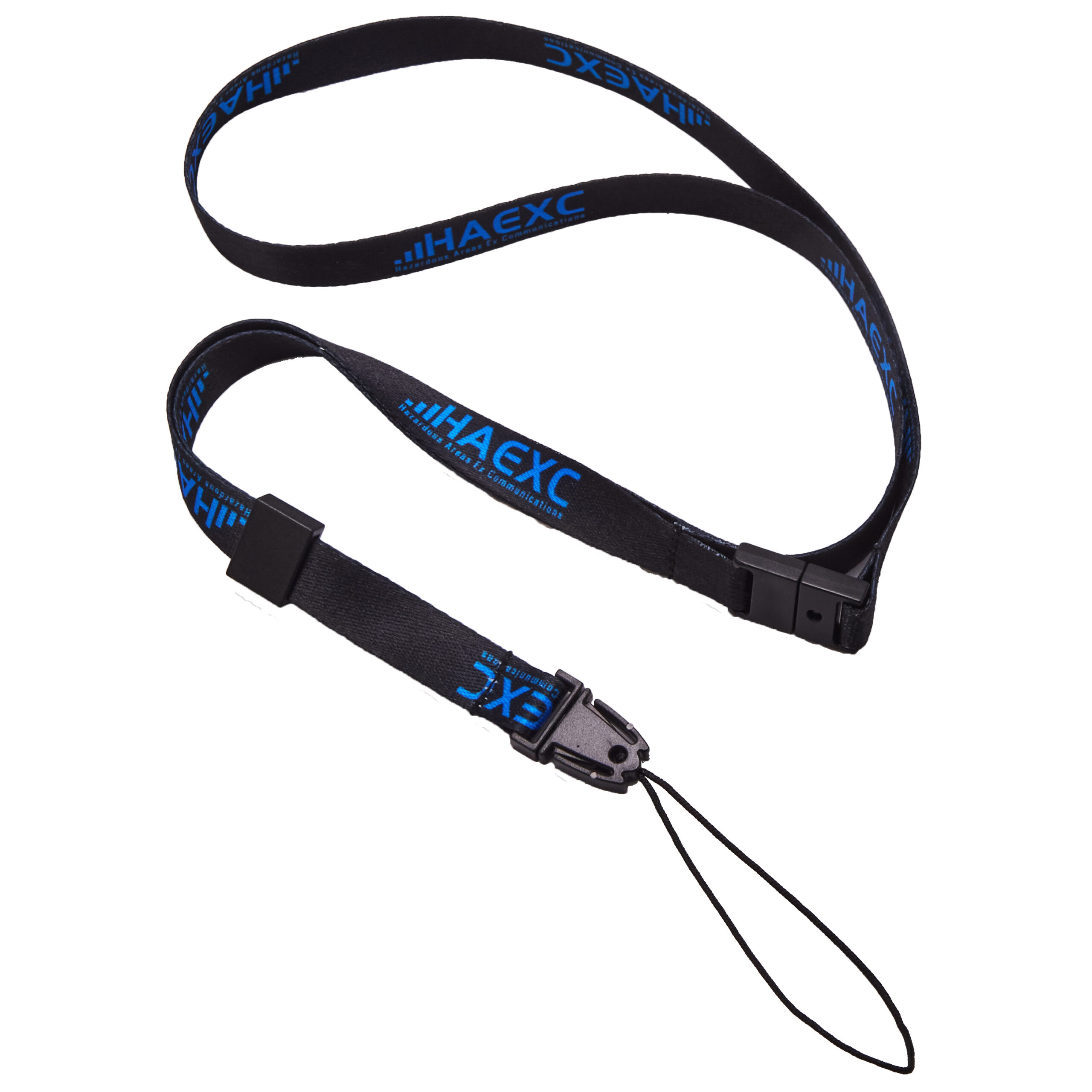

  • Landyard

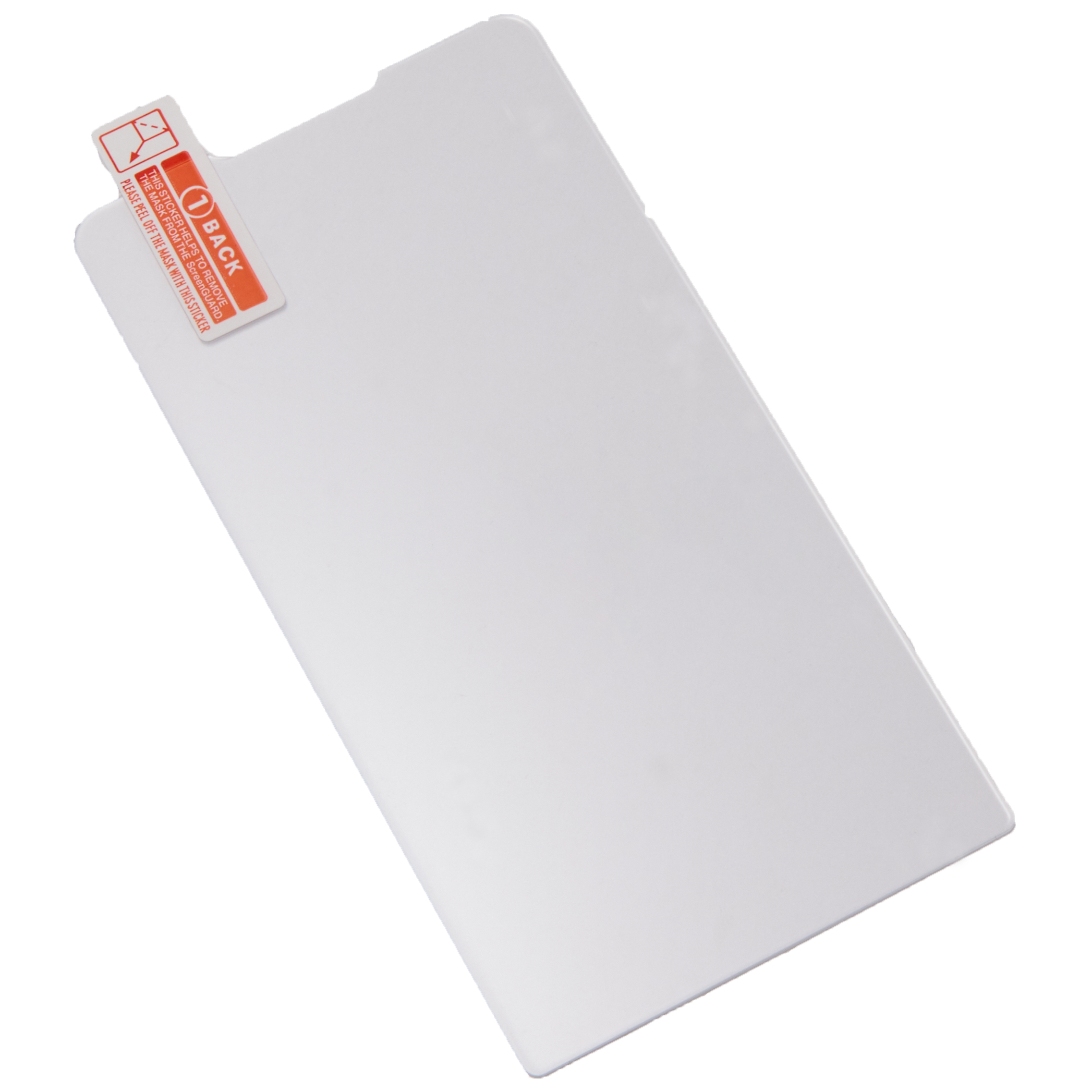

  • Tempered Glass Screen Protector

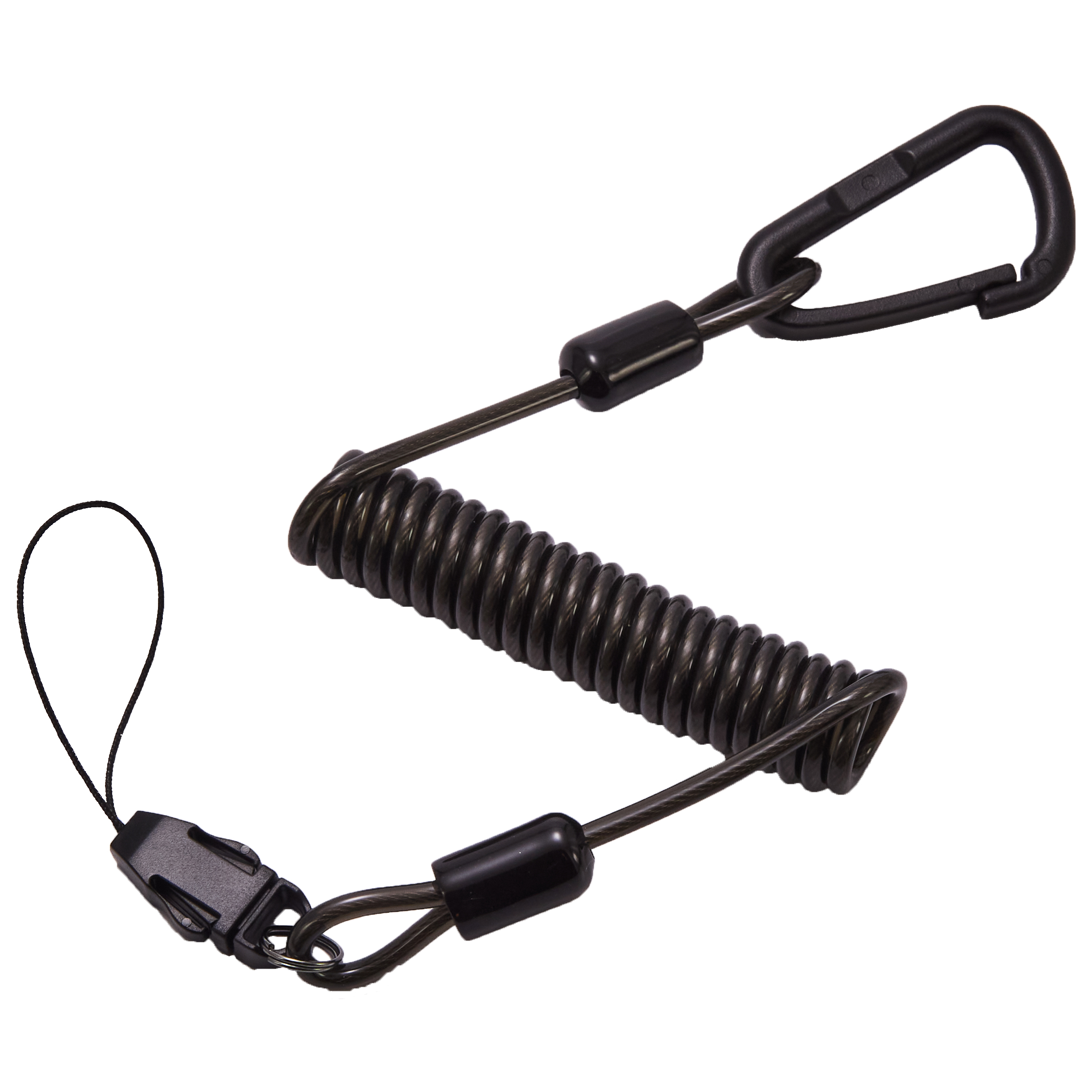

  • Tether Coil

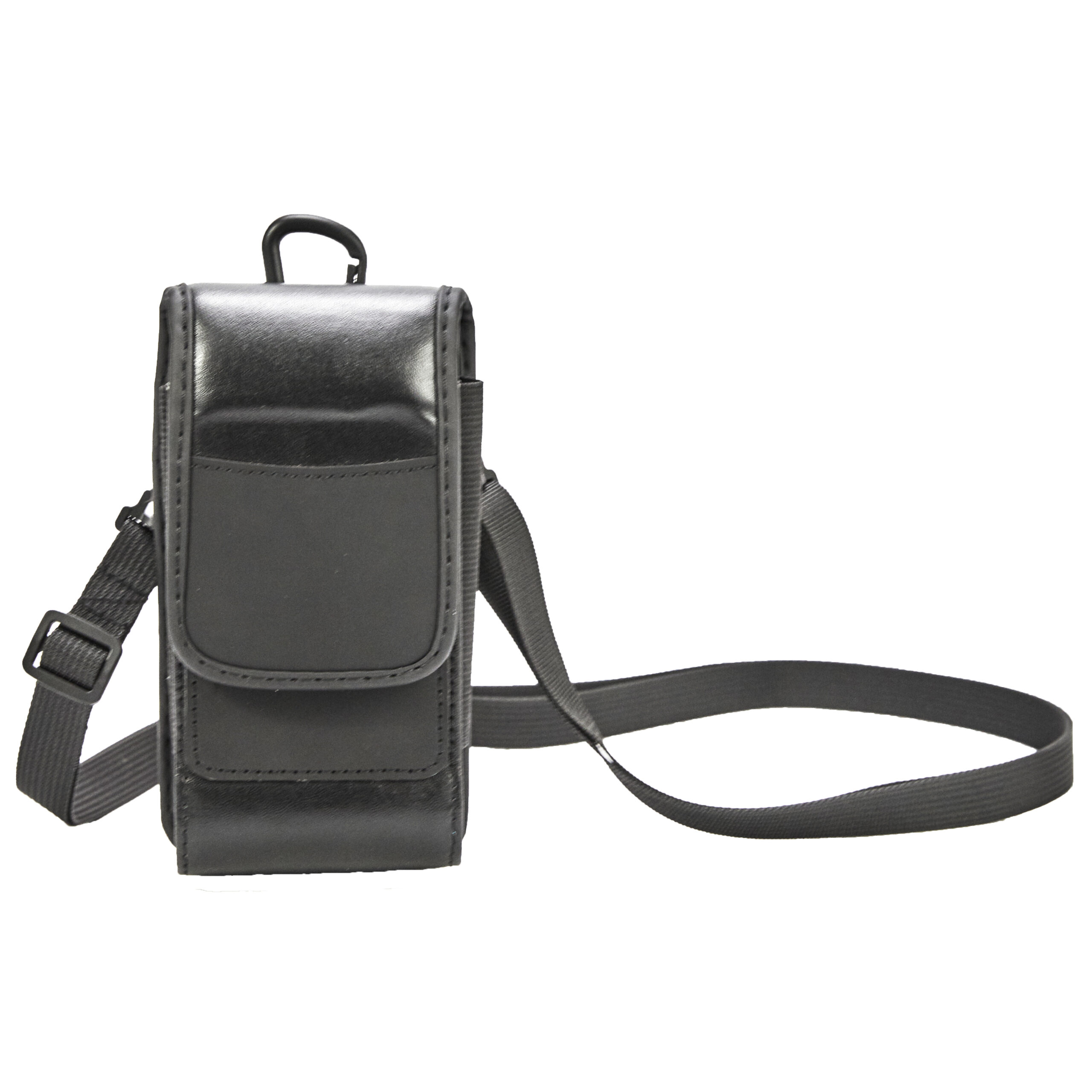

  • Carry Pouch
