Description
Product Features
Product Features
- Changeable Dual-SIM (eSIM + nano-SIM)
- Global Certification – Single platform
- Android 13
- 13 MP AF rear camera with LED flash + 5 MP front
- USB-C connector
- GPS / Glonass / Beidou / Galileo / QZSS / NFC technologies
- Replaceable 4400 mAh battery
- IP68
Tech Specifications
Technical
Specifications
- Android 13
- Qualcomm® Snapdragon QCM6490 and SDR753 platform
- 6.0” capacitive multi-touchscreen
- RAM: 8GB
- ROM: Internal 128GB
- 5G / LTE standards (SIM-UNLOCKED)
- Bluetooth 5.2 with Low Energy support
- 802.11 a/b/g/n/ac/ax/e/k/r/v
- Battery @ 4400 mAh
Tech Specs
PROCESSOR
Qualcomm® Snapdragon QCM6490 and SDR753 platform
- Full 3GPP Rel 15 support
RAM
8 GByte
CAMERA
Front camera – 5 MP
Main camera – 13 MP with LED flash and phase detection autofocus
optimized for ECOM scanning solutionsVideo recording resolution – 1080p, 720p, 480p (main camera)
INTERNAL DATA MEMORY
128 GB
SENSORS
Biometric, Accelerometer, Gyrometer, Magnetometer, Barometer, Proximity, Ambient light
DISPLAY
Can be operated while wearing gloves
Extreme shock and scratch resistant Gorilla® glass
Touchscreen technology – Capacitive multitouch
Screen diagonal – 15.24 cm / 6 inch
Resolution – 1080 x 2160 pixels
KEY
Programmable push-to-talk, alarm and multifunction button
Power button with fingerprint sensor
Volume up/down
BATTERY TYPE
Li-Ion battery , 4400 mAh
I/O PORTS
Charging via USB Type C + robust charging pads for charging in docking station (accessory)
3.5 mm audio interface, supporting legacy and standard 3.5mm audio accessories and updated PTT accessories through new, specific audio interface
MOBILE STANDARD
2G – GSM: 800 / 850 / 900 / 1800 / 1900 MHz
3G – WCDMA: B1, B2, B4, B5, B8 (850 / 900 / 1700 / 1900 / 2100 MHz)
4G – LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B34, B38, B39, B40, B41, B42, B43, B48, B53, B66, B71
5G – NR: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
WLAN
6E ready, 802.11a/b/g/n/ac/ax/e/k/r/v, support for Enterprise deployments
BLUETOOTH
5.2 with Low Energy support
GPS SENSOR
GPS, GLONASS, Galileo, QZSS, BeiDou
NFC
Yes
SIM CARD
Dual SIM (eSIM + nano-SIM)
OPERATING SYSTEM
Android™ 13 (upgradable to Android™ 15)
Android™ Enterprise Recommended verified device
APPLICATIONS
Google ARCore ready
SMS/MMS
Yes
AMBIENT TEMPERATURE
-20 … 60 °C (-4 … 140 °F)
DEGREE OF PROTECTION
IP68 according to EN/IEC 60529 , MIL-STD-810H
MASS
400 g
DIMENSIONS
(W) 84 mm x (H) 172 mm x (H) 18 mm / 25 mm
Ex Certificates
NEC / CEC [MET]
- Class I, Division 1, Groups A,B,C,D T4
- Class II, Division 1, Groups E,F,G T4
- Class III, Division 1
- Class I, Zone 1, AEx ia IIC T4 Gb
- Zone 21, AEx ia IIIC T135°C Db
- Ex ia IIC T4 Gb
- Ex ia IIIC T135°C Db
What's In the box?
Delivery Includes

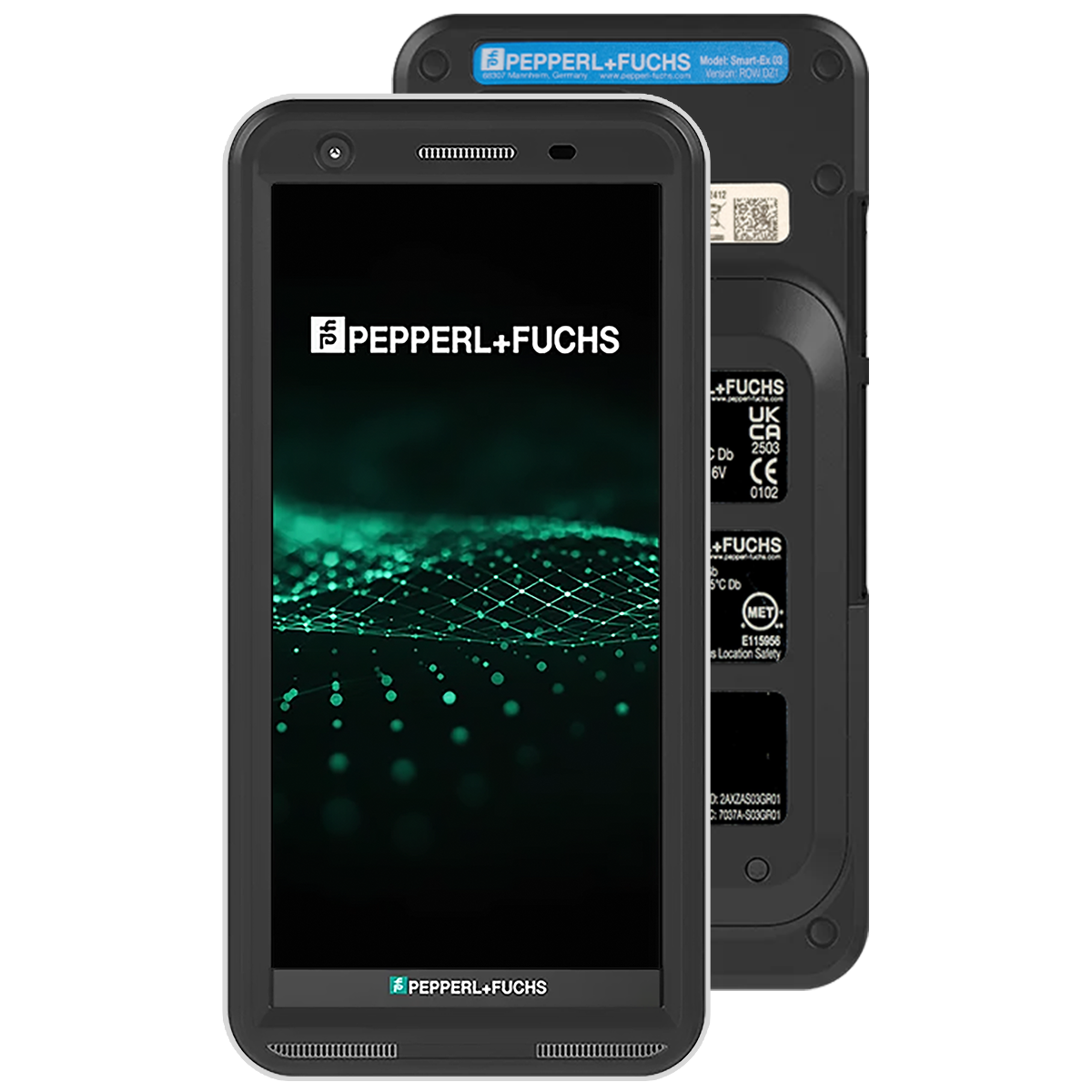

- Smart-Ex 03
- Li-Ion battery
- Charger
- USB cable
- Screwdriver
- Documentation
Optional Accessories
- RL ID01
- EXT-C2LCOIL
- Mini QD Loop
- LH-Ex S03
- LC-Ex S03 BC

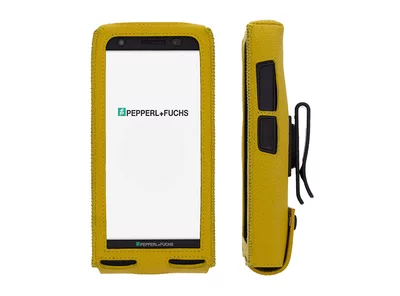

- LC-Ex S03 SC
- Ex-BP S03 AI
- TC S03
- PC S03
- DS S03

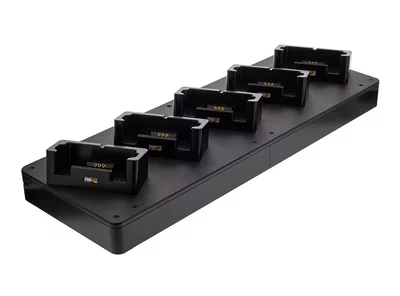

- DS-M S03

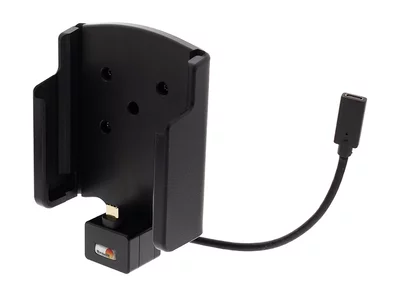

- VH-C S03
- CC S01-R
- PC TPRO

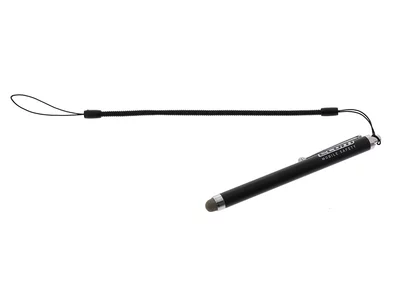

- ST 02
- Stylus Tether ST01
- Torx T8
