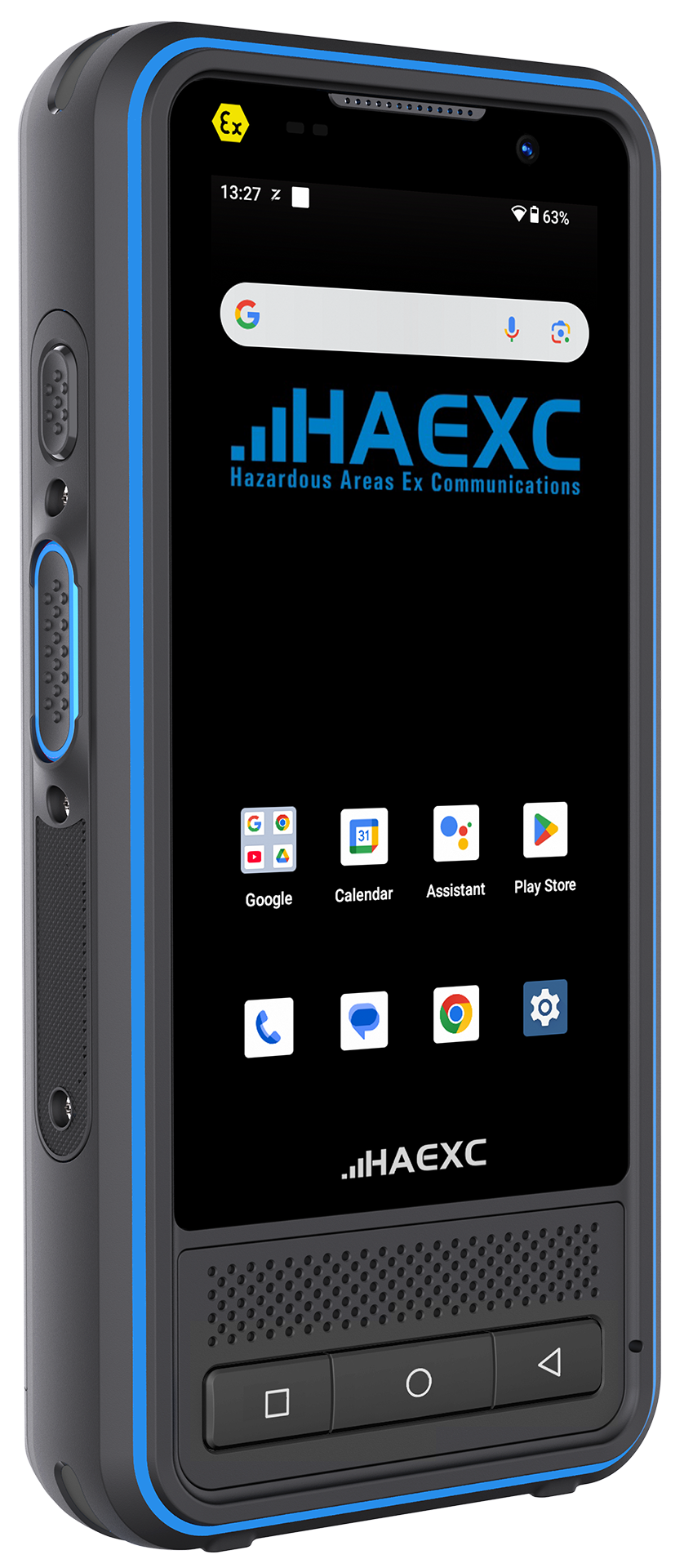

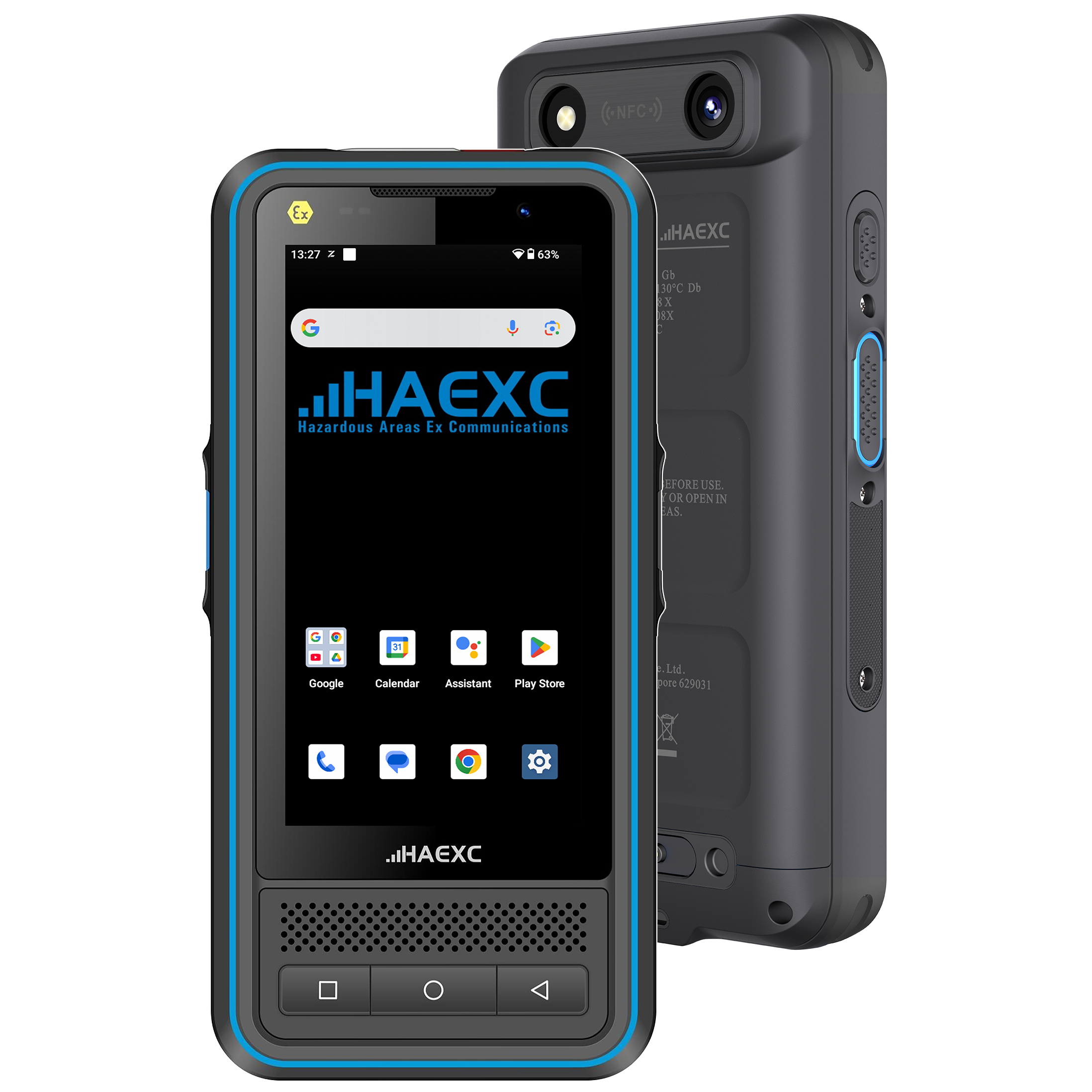

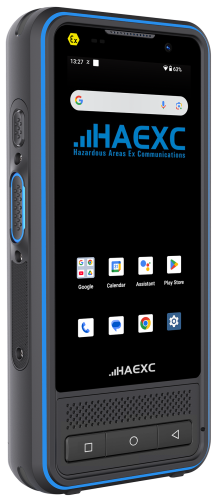

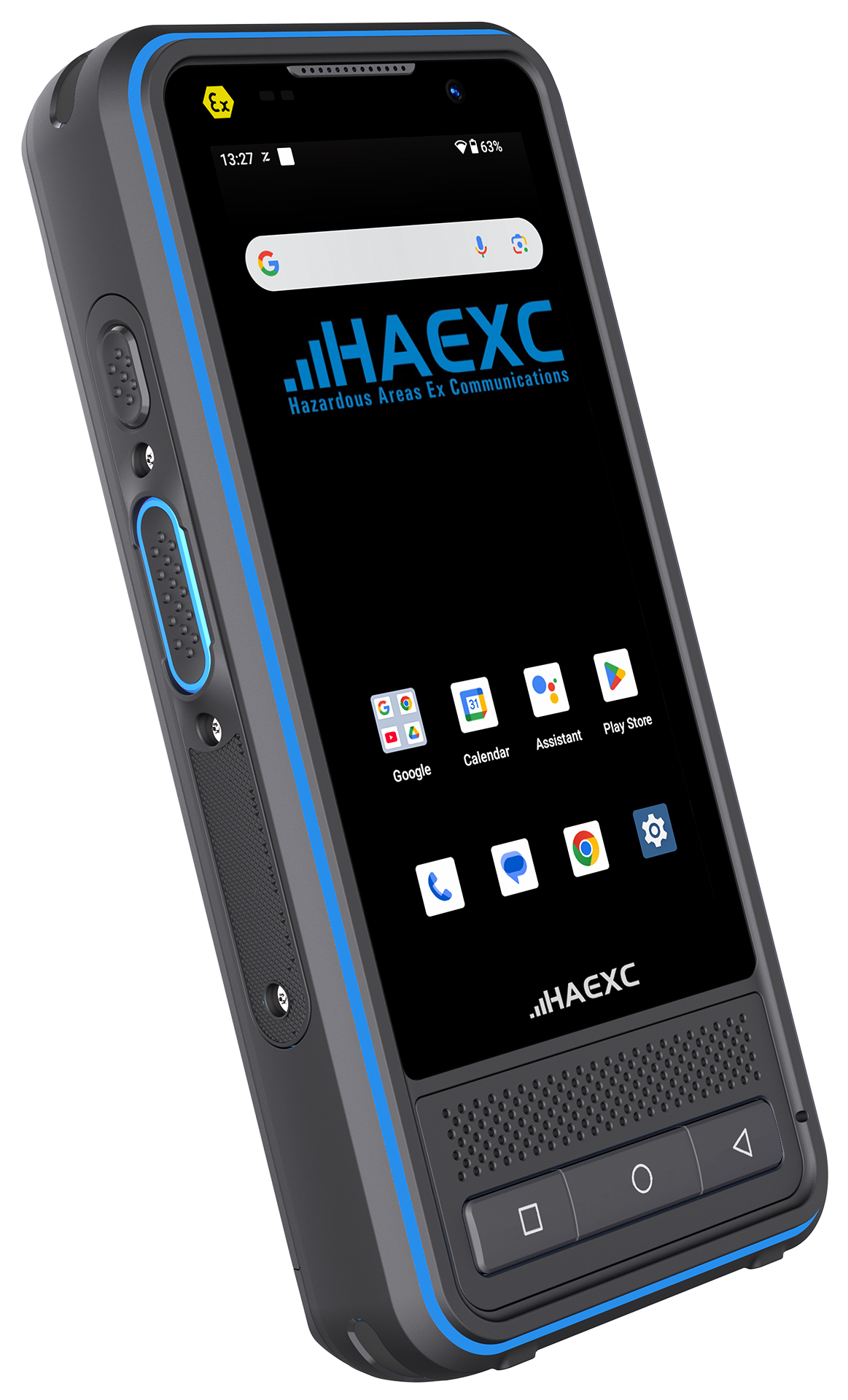

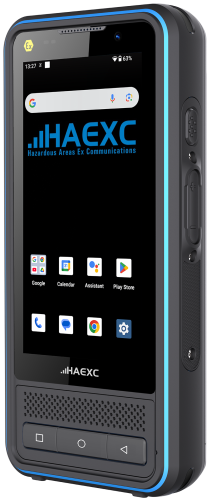

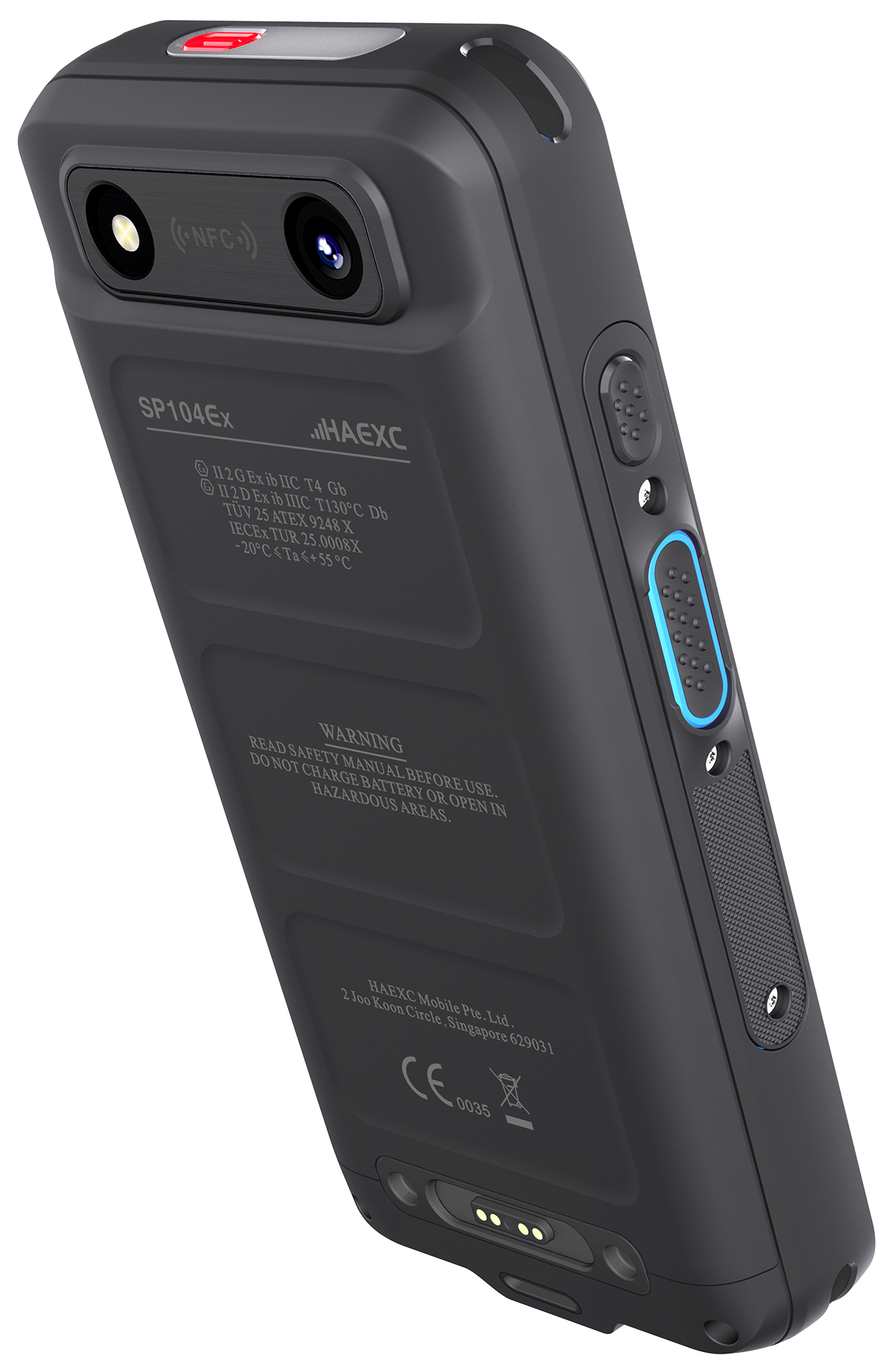

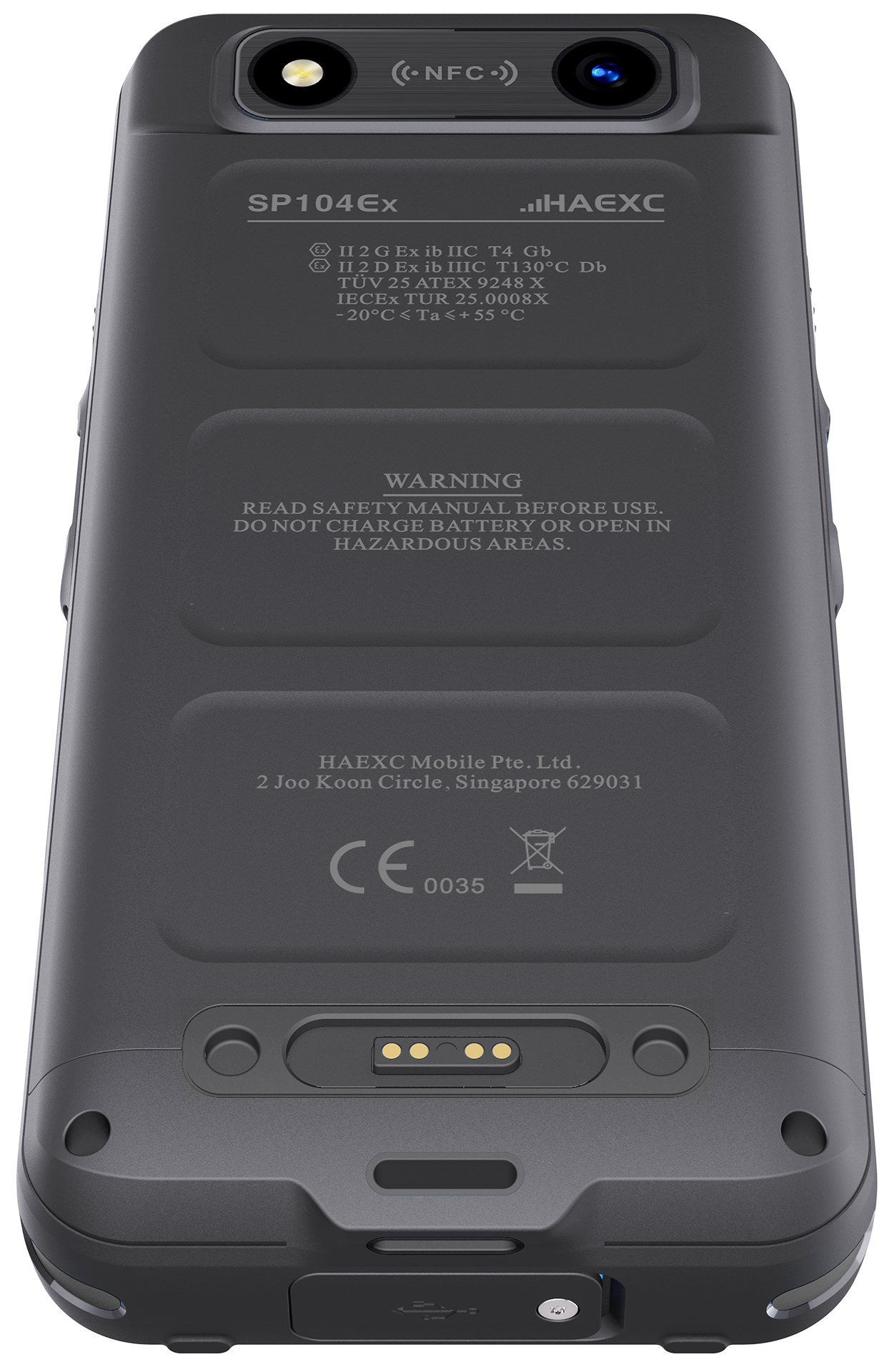

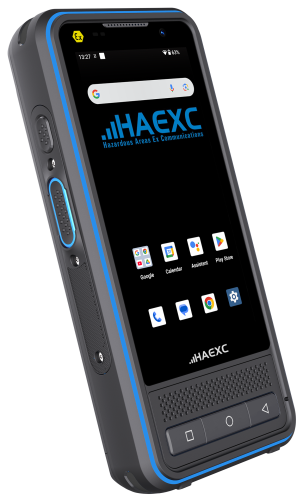

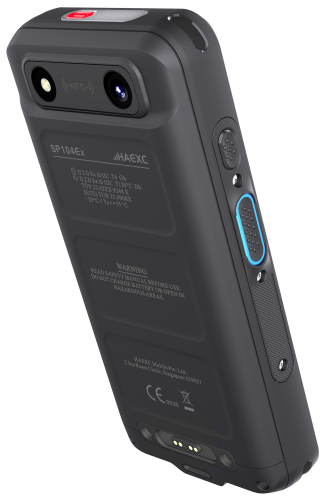

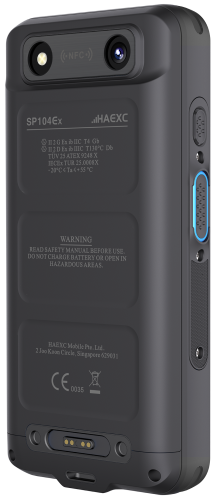

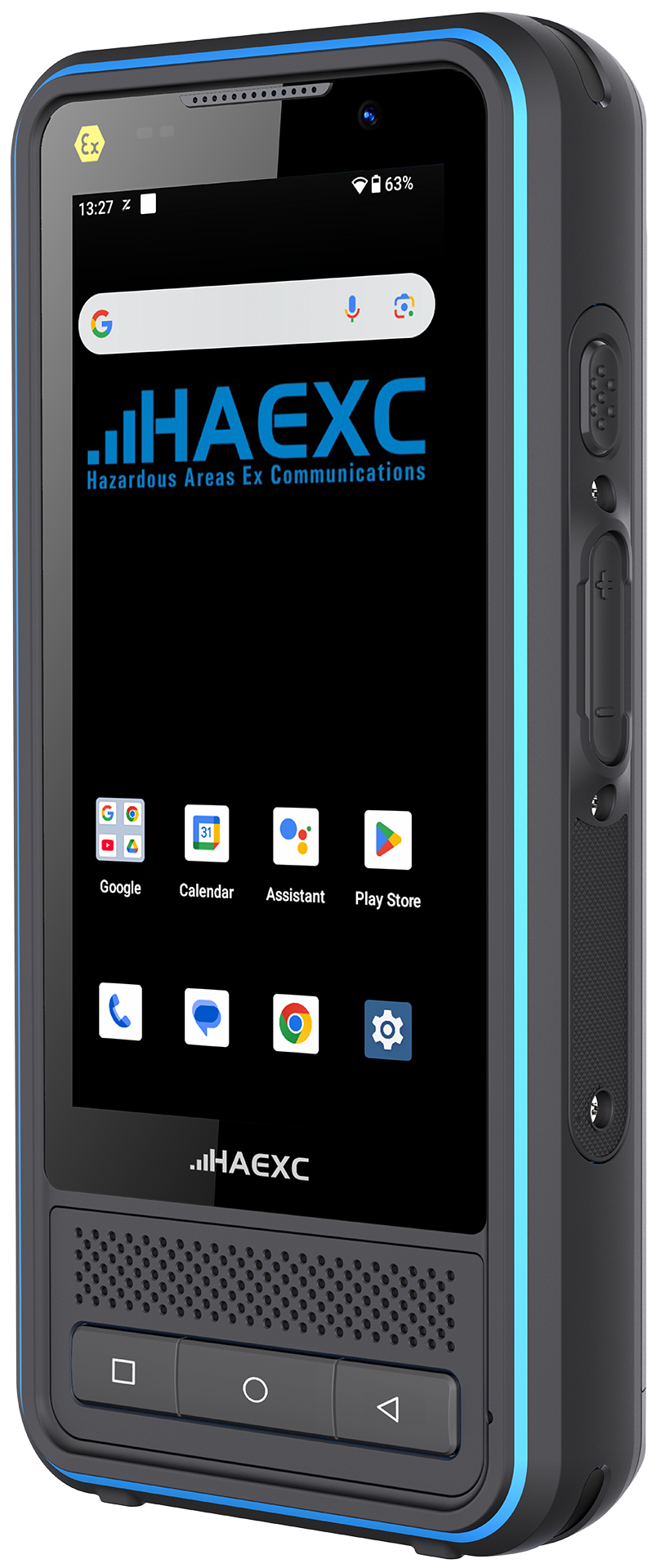

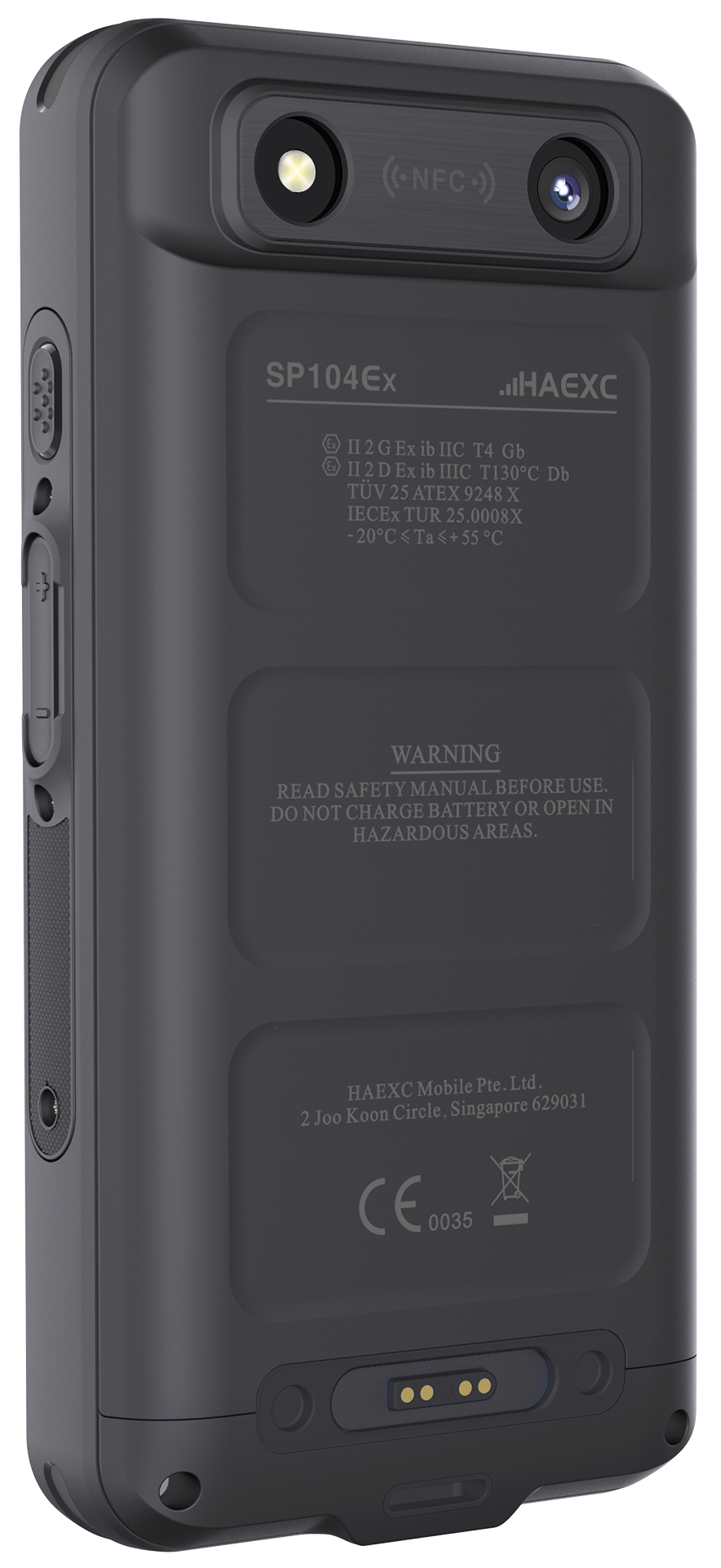

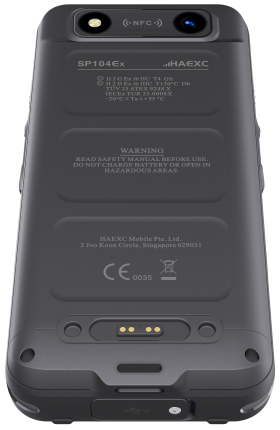

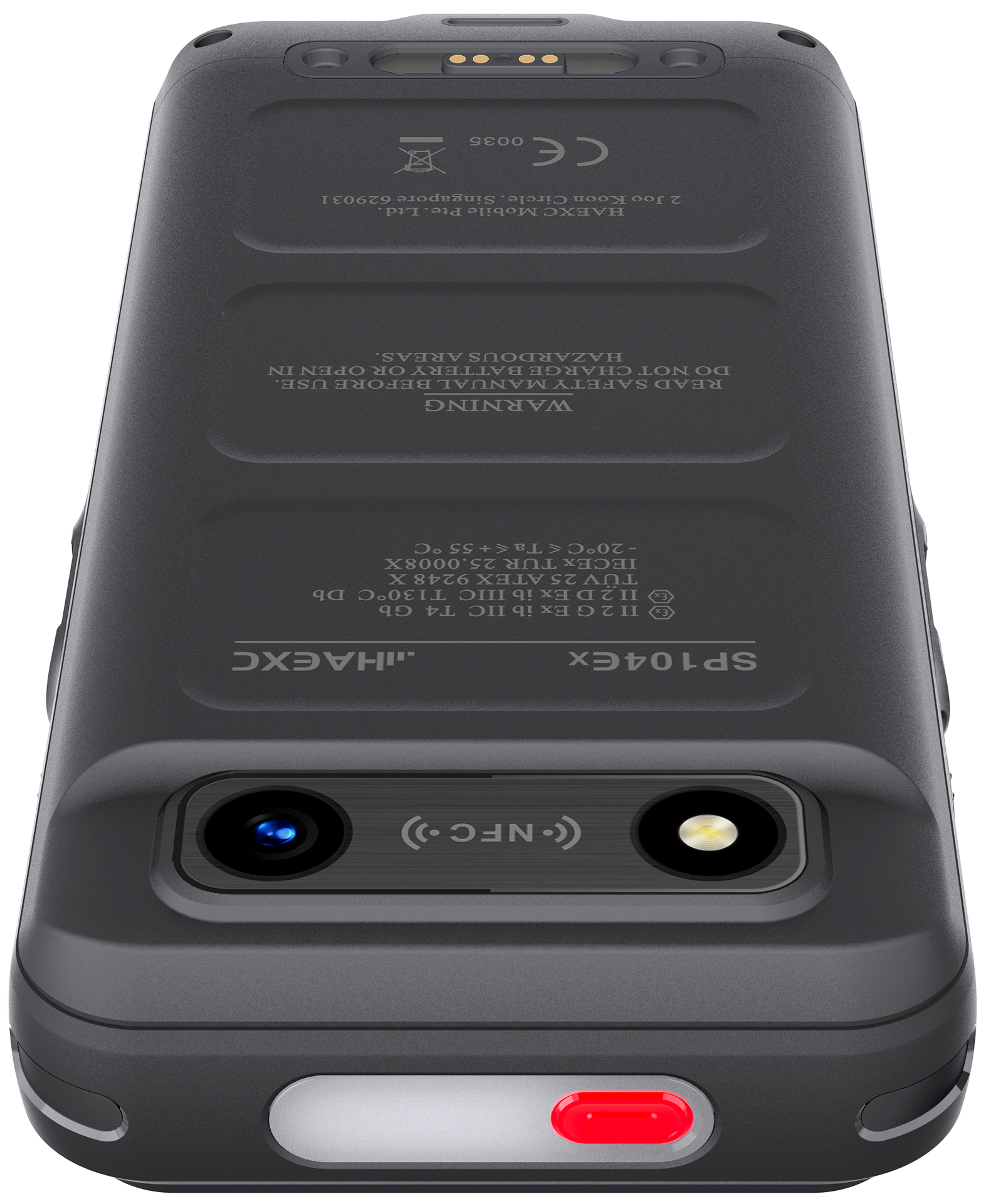

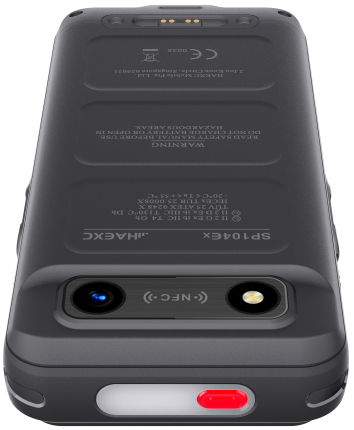

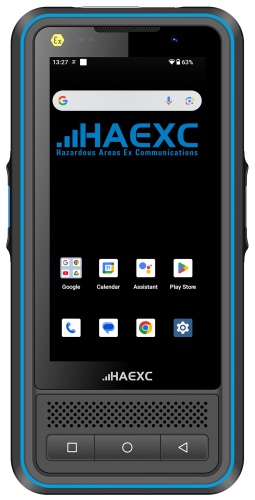

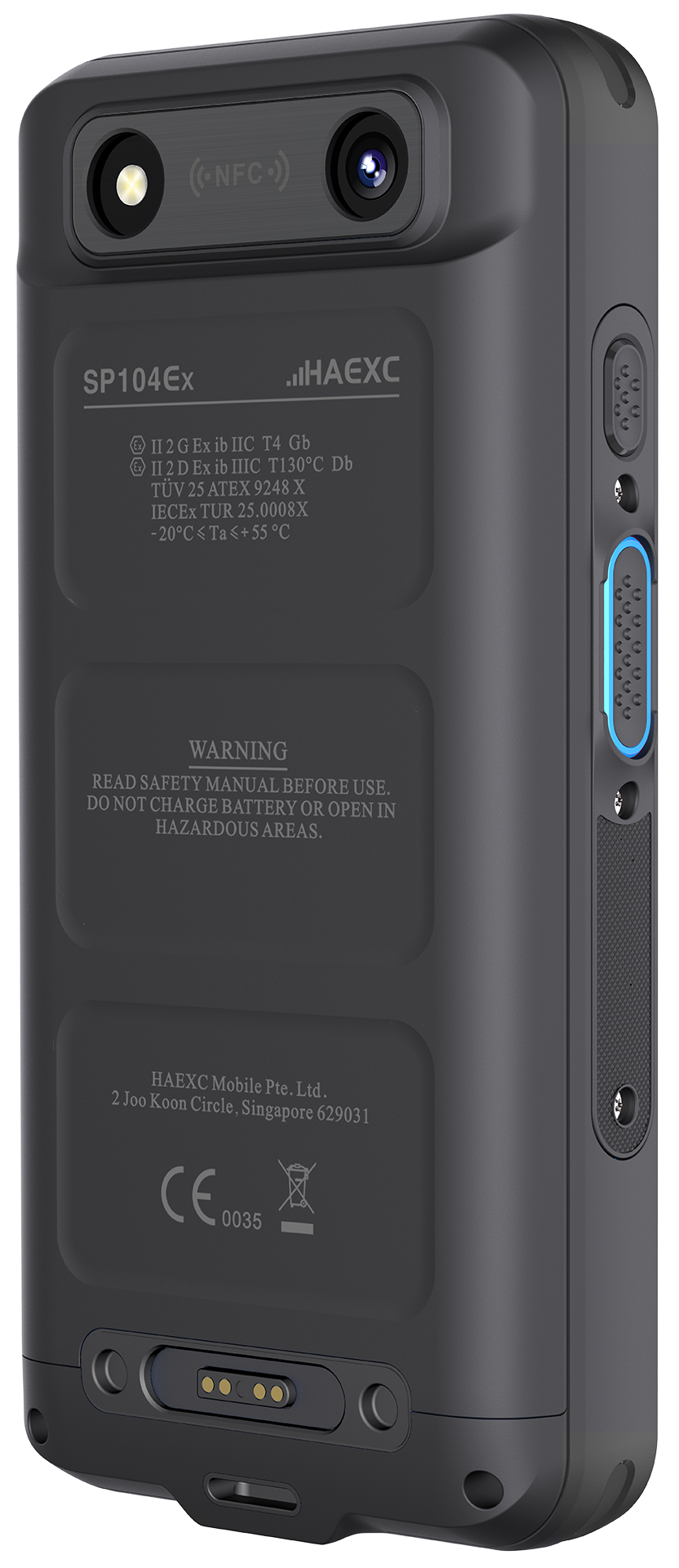

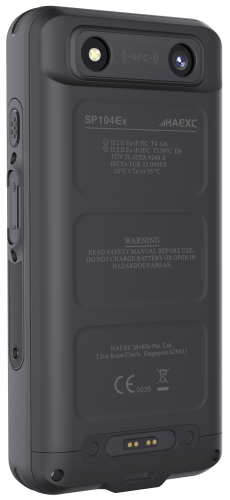

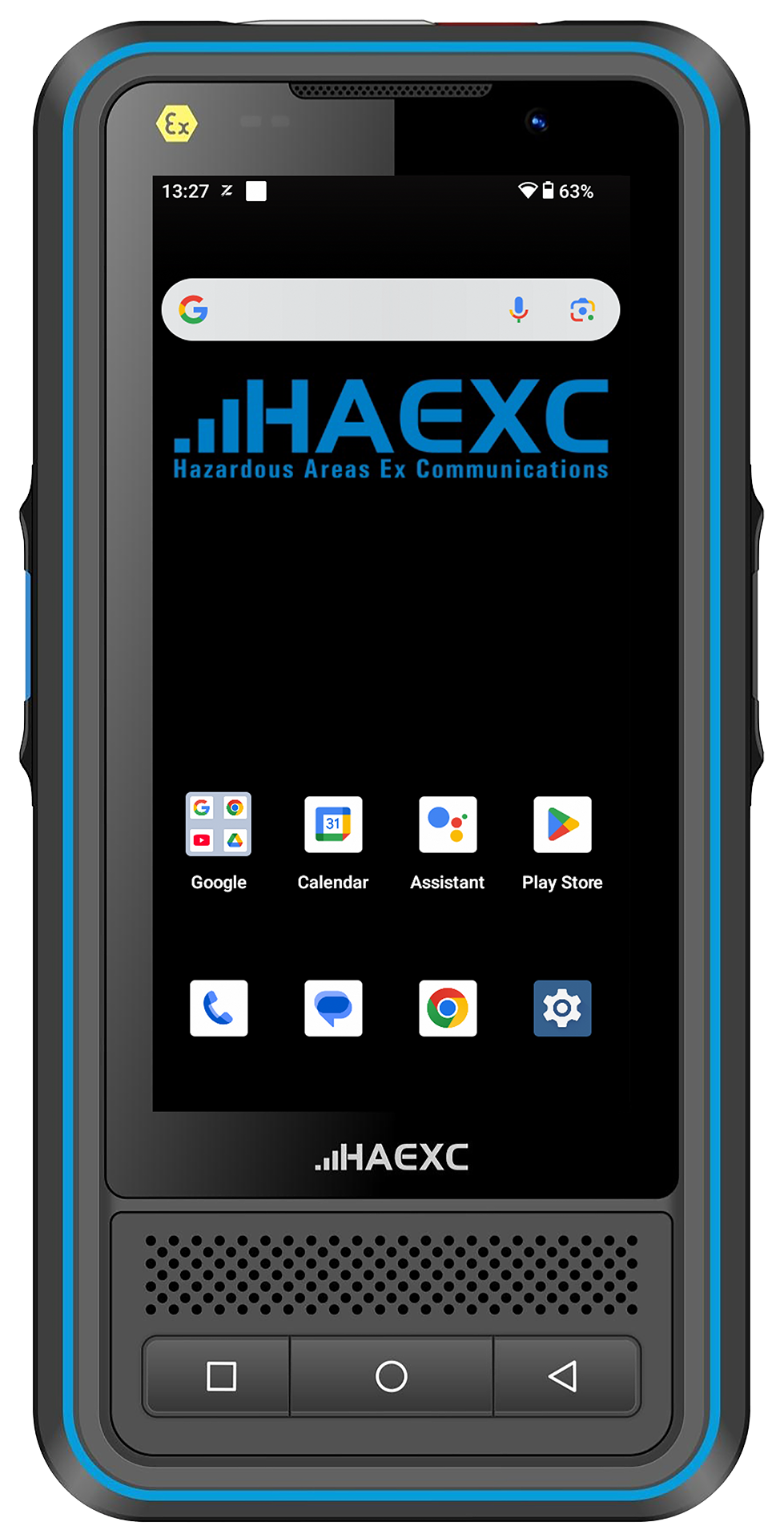

HAEXC SP104Ex – Designed for Hazardous Environments
Certified for Zone 1/21, the SP104Ex delivers rugged durability, intrinsic safety, and reliable 4G connectivity in a compact and robust form factor. Powered by Android 14 and equipped with dedicated PTT and SOS buttons plus IP68 protection, it ensures dependable communication for mission-critical industrial operations.

Description

Product Features

  • Dual-SIM (nano-SIM)
  • Global Certification – Single platform
  • Android 14
  • 50 MP rear (Auto Focus) + 8 MP front
  • USB-C connector
  • GPS / A-GPS / BeiDou / GLONASS / Galileo / NFC technologies
  • Replaceable 4000 mAh battery
  • IP68

Technical
Specifications

  • Android 14
  • MediaTek 6765 Octa Core 2.2 GHz
  • 4.0” LCD, Multi-Point Capacitive
  • RAM: 6GB
  • ROM: Internal 128GB
  • 4G / LTE standards
  • Bluetooth 5.1 (BLE)
  • WiFi 802.11 ac/a/b/g/n
  • Battery Li-Ion , 4000 mAh

Rugged Specs

Tech Specs

  • MediaTek 6765 Octa Core 2.2 GHz

  • 6 GByte

  • Front camera – 8 MP

  • Main camera – 50 MP

  • 128 GB

  • Biometric, Accelerometer, Gyrometer, Magnetometer, Barometer, Proximity, Ambient light

  • 4.0” LCD

  • 540×1080 (VGA)

  • Multi-Point Capacitive

  • Gorilla Glass (Impact & Scratch Resistance)

  • Support Glove Mode

  • PTT push-to-talk

  • Power button

  • Volume up/down

  • SOS

  • Li-Ion battery , 4000 mAh , Removeable

  • Charging via USB Type C.

  • Magnetic Pogo Pin Charging Port (common to Docking Station).

  • 2G – GSM: 850 / 900 / 1800 / 1900 MHz

  • 3G – WCDMA: B1, B5, B8 (850 / 1900 / 2100 MHz)

  • 4G – LTE: B1, B2, B3, B4, B5, B7, B8, B18, B19, B20, B26, B28a&b, B29, B34, B38, B39, B40, B41

  • 802.11 ac/a/b/g/n

  • 5.1 (Bluetooth Low Energy)

  • GPS, A-GPS, BeiDou, GLONASS, Galileo

  • Yes

  • Dual SIM (nano-SIM)

  • Android™ 14

  • Yes
  • 20 °C to +55 °C
  • IP68 (Water & Dust) , Drop Test 1.2 M
  • 325 g

  • 148 mm x 70.5 mm x 25 mm

Ex Certificates

ATEX Logo

ATEX (Europe)

  • II 2G Ex ib IIC T4 Gb
  • II 2D Ex ib IIIC T130°C Db

IECEx (International)

  • Ex ib IIC T4 Gb
  • Ex ib IIIC T130°C Db

Certificates and Manuals

Delivery Includes

  • Handset

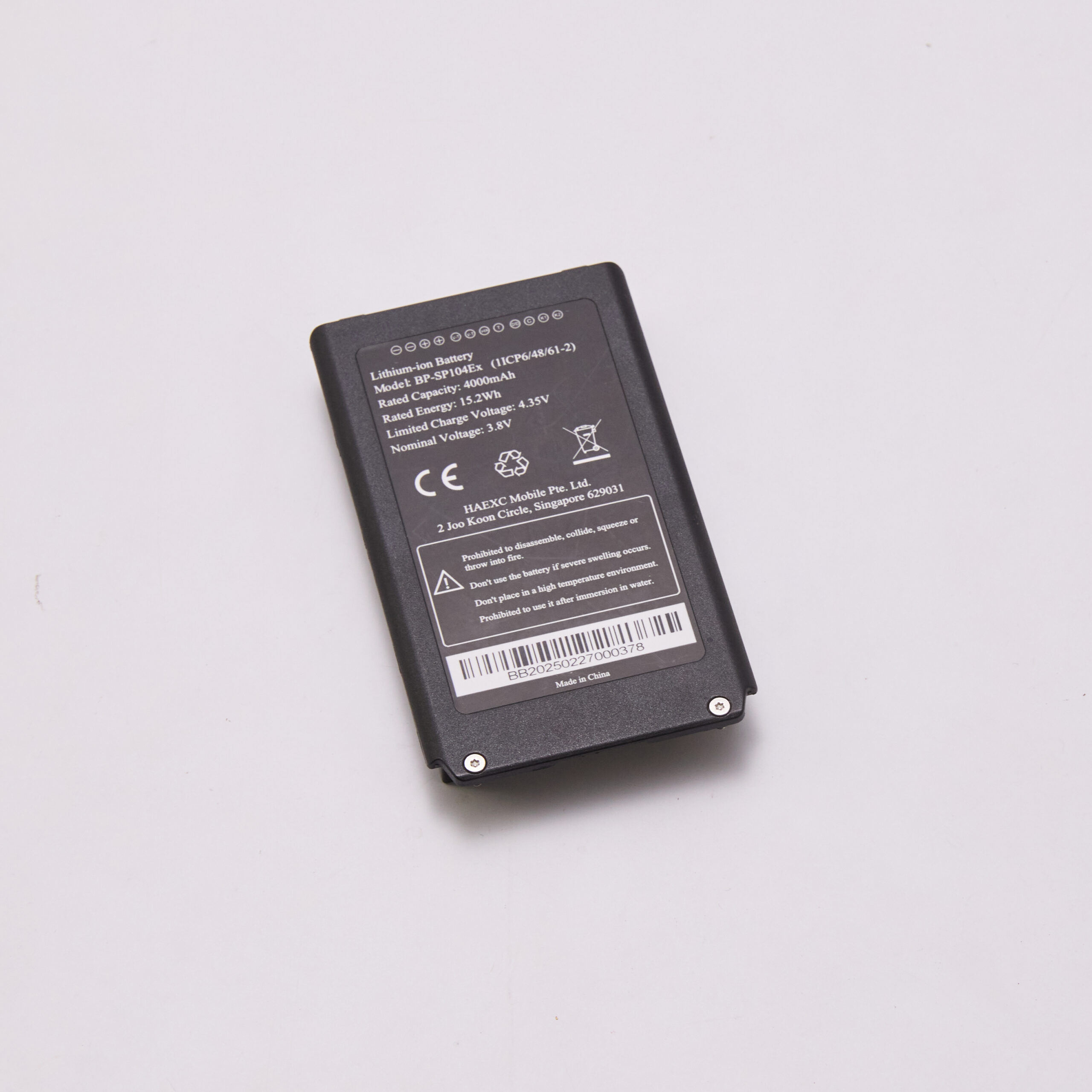

  • Battery

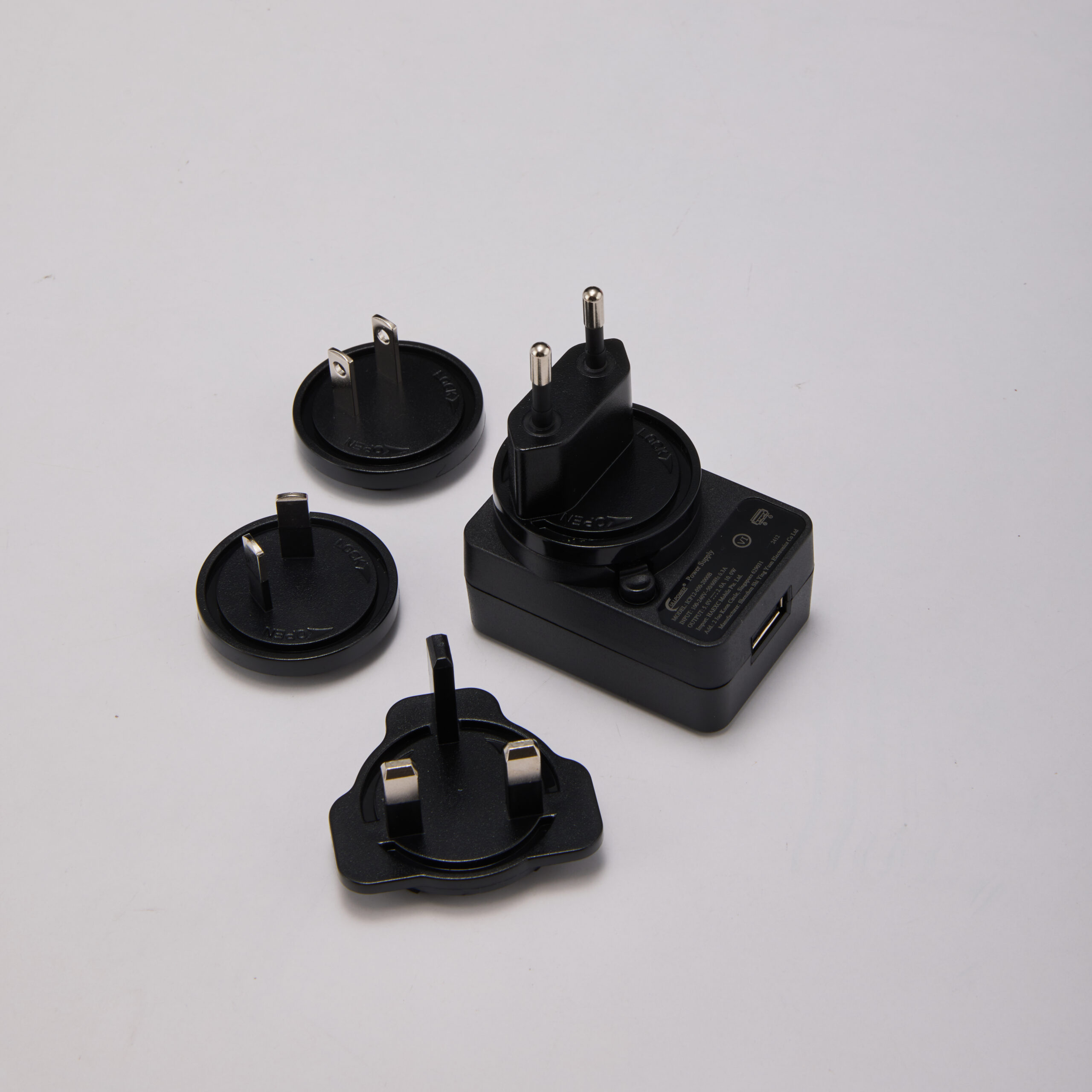

  • Travel Charger (With Multi-Adaptors)

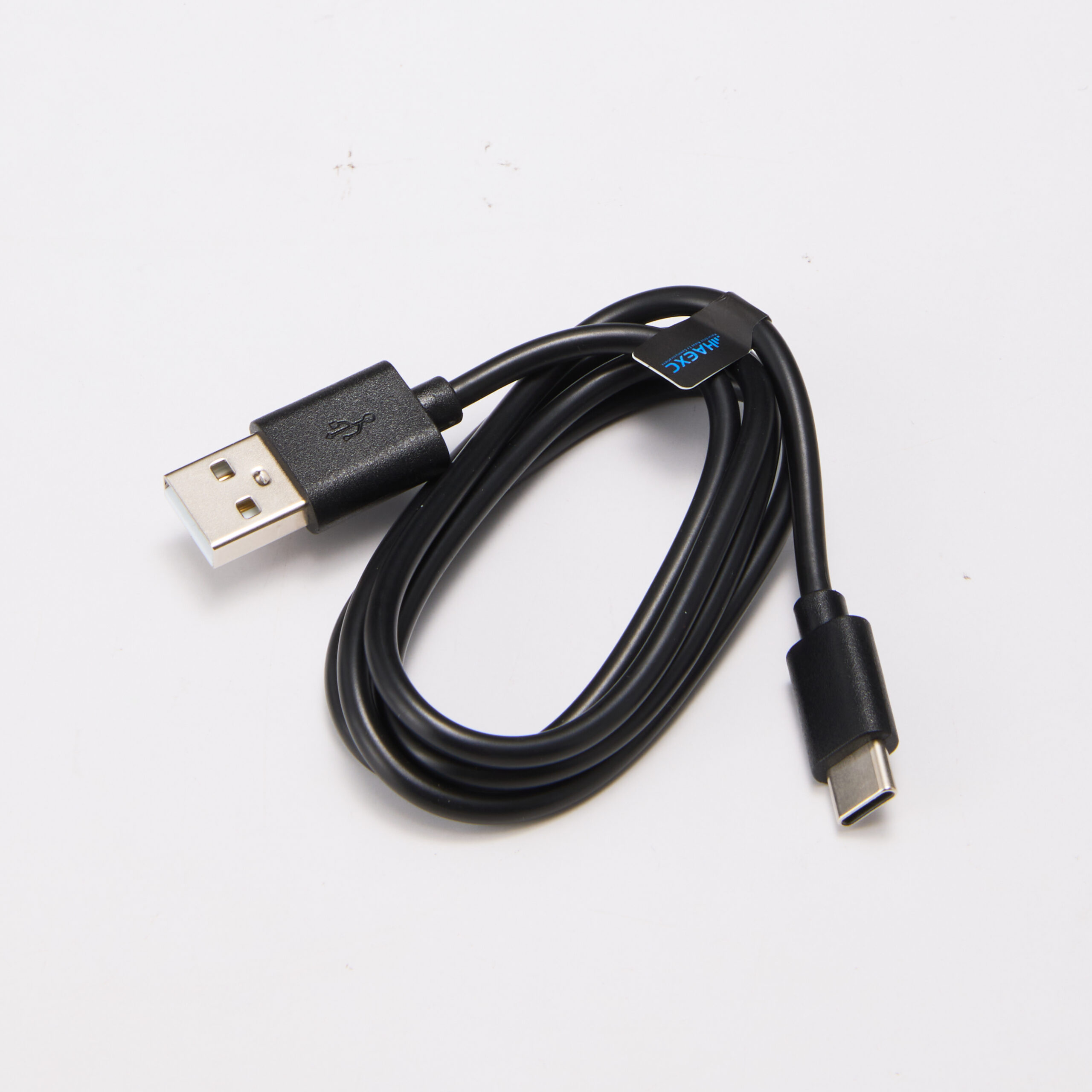

  • Type-C USB Cable

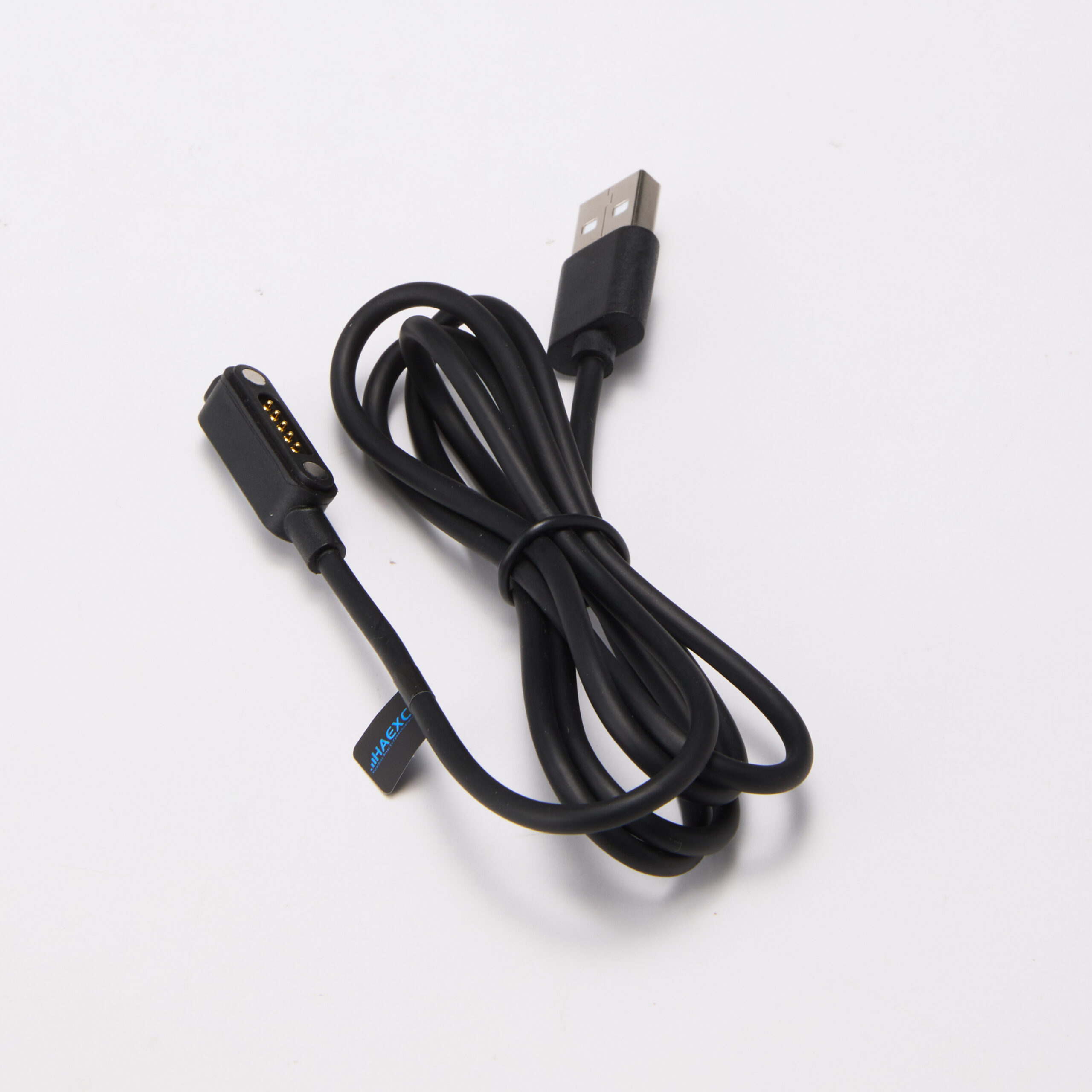

  • Magnetic USB Cable

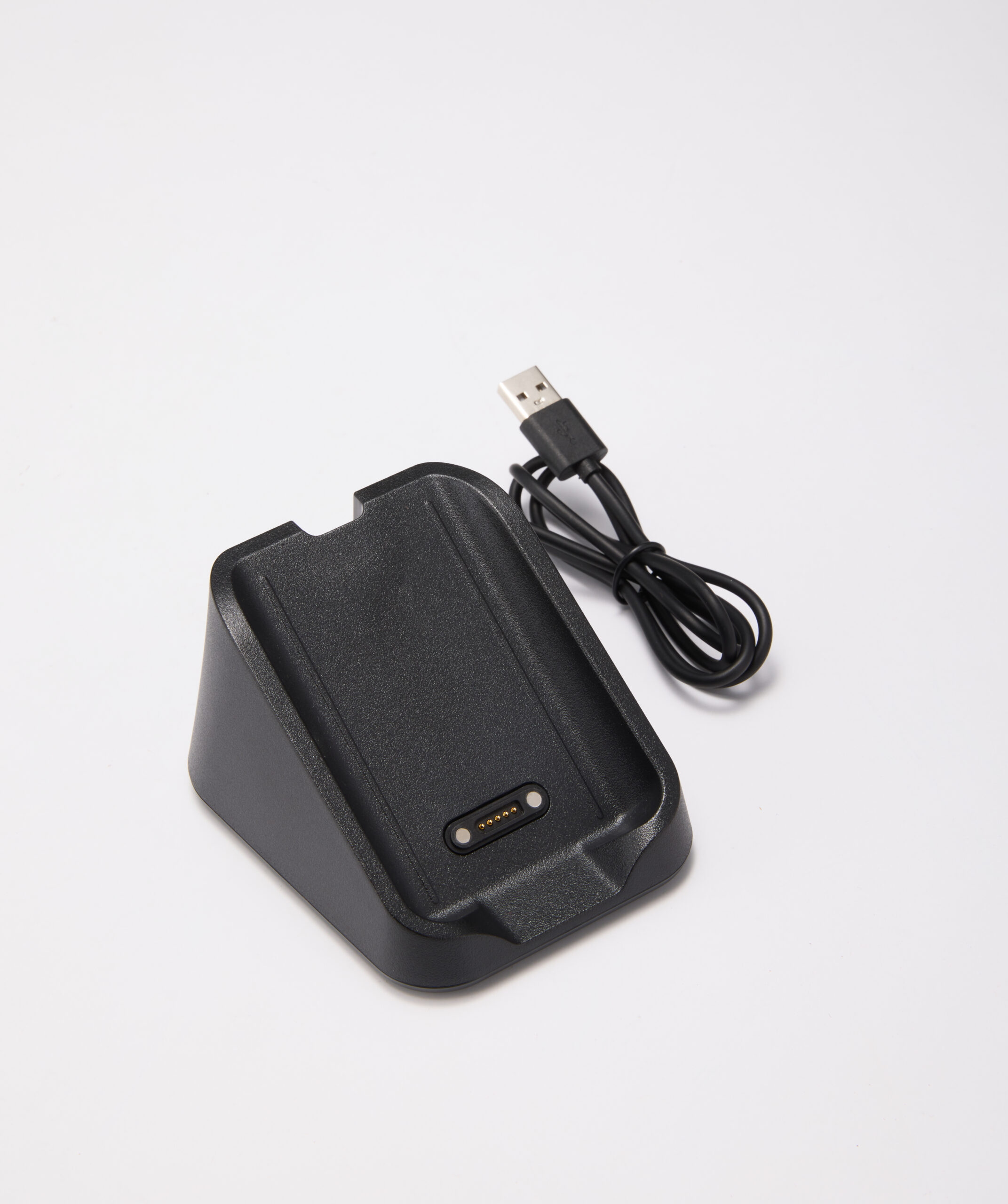

  • Docking Station

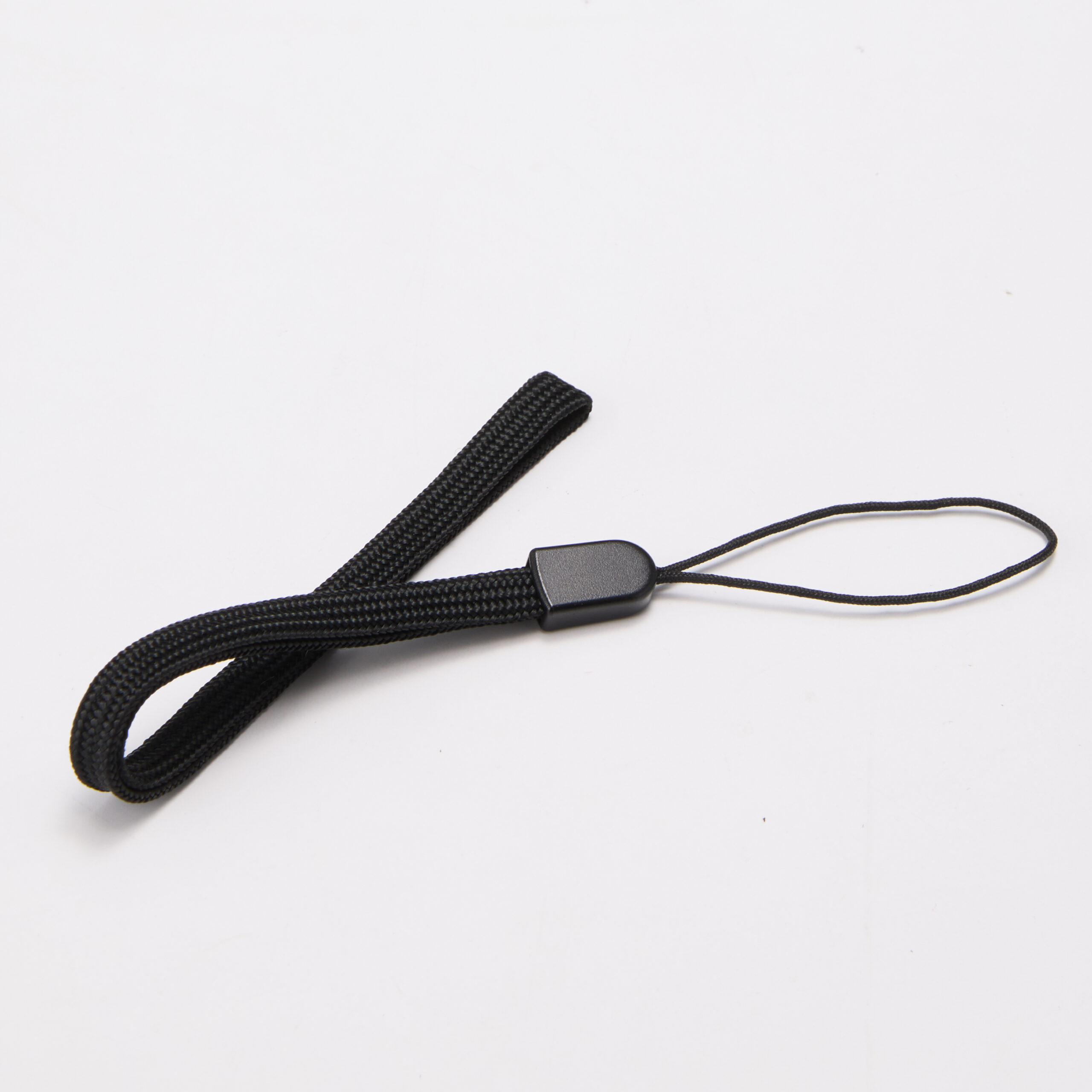

  • Wrist Strap

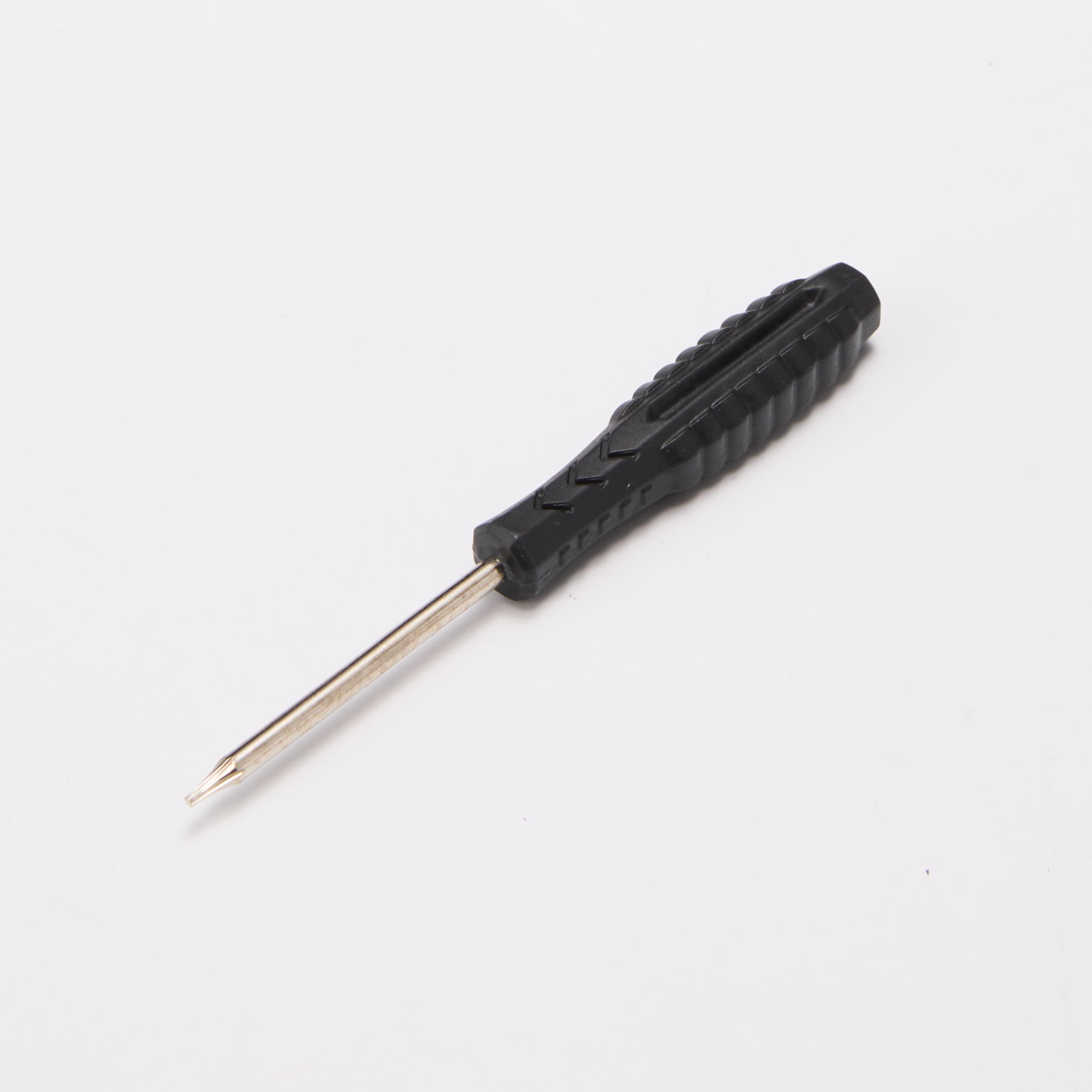

  • Screwdriver
  • Documents

Optional Accessories

  • Travel Charger (With Multi-Adaptors)
  • Battery
  • Type-C USB Cable
  • Magnetic Charging Cable
  • Docking Station
  • Screwdriver
  • Wrist Strap

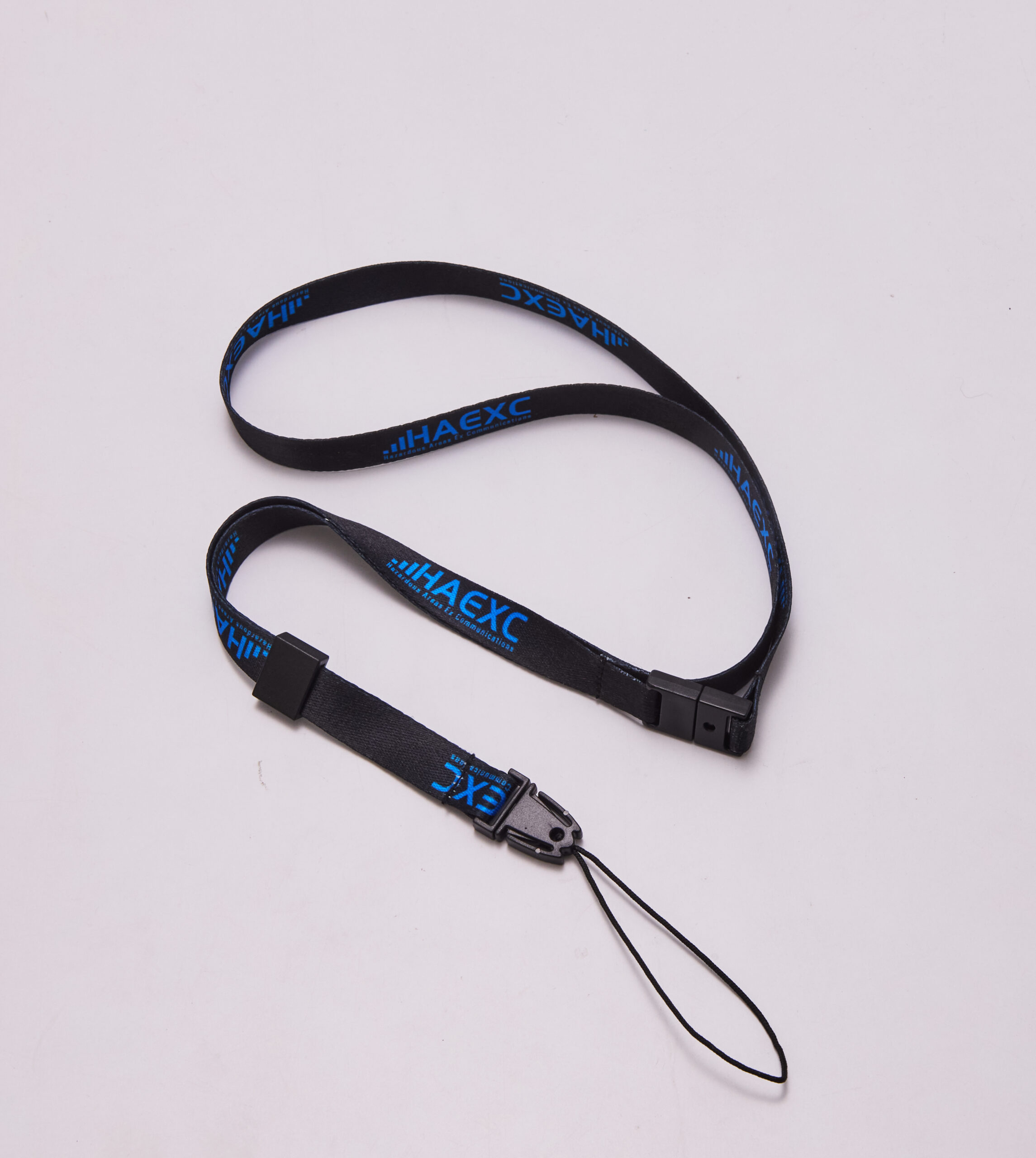

  • Landyard

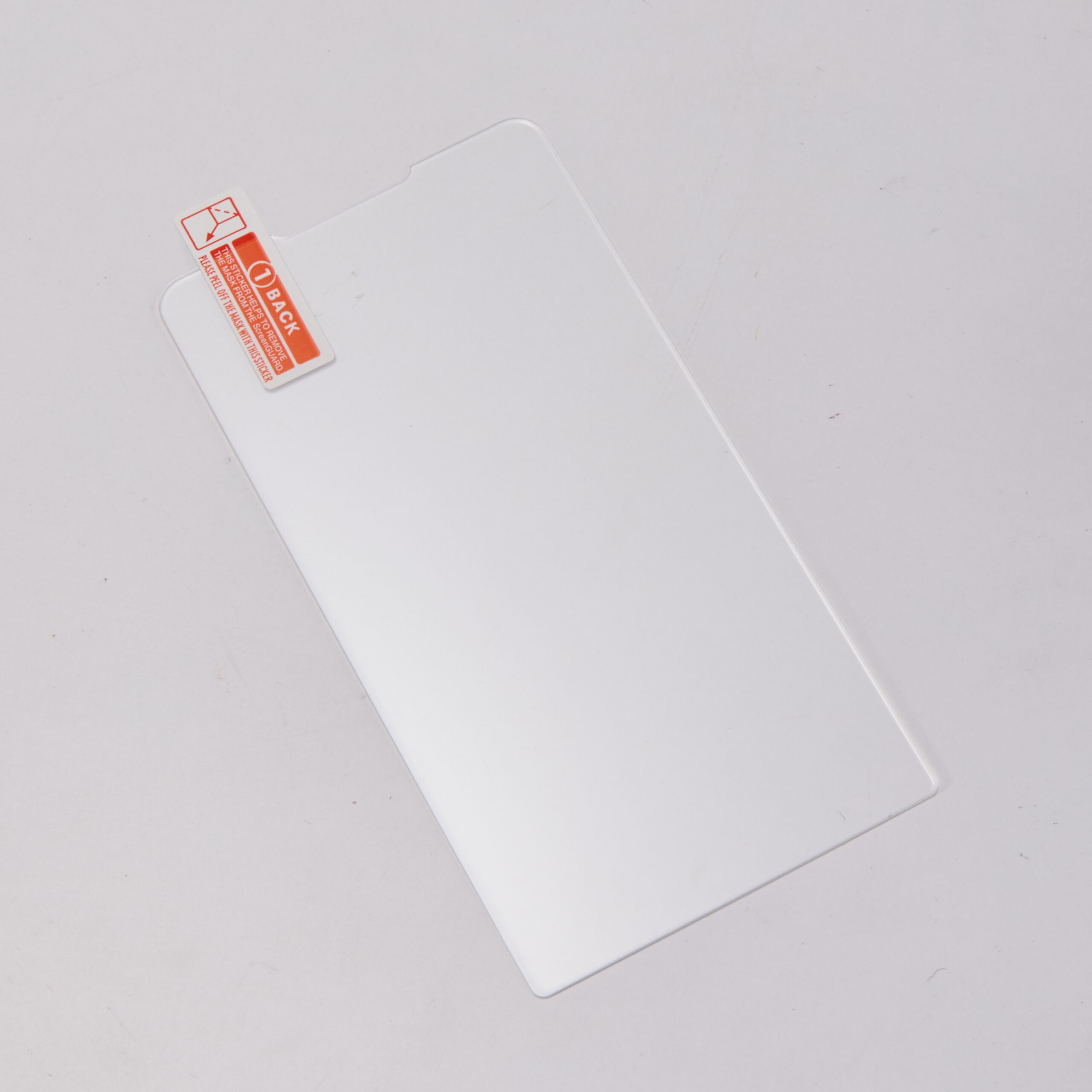

  • Tempered Glass Screen Protector

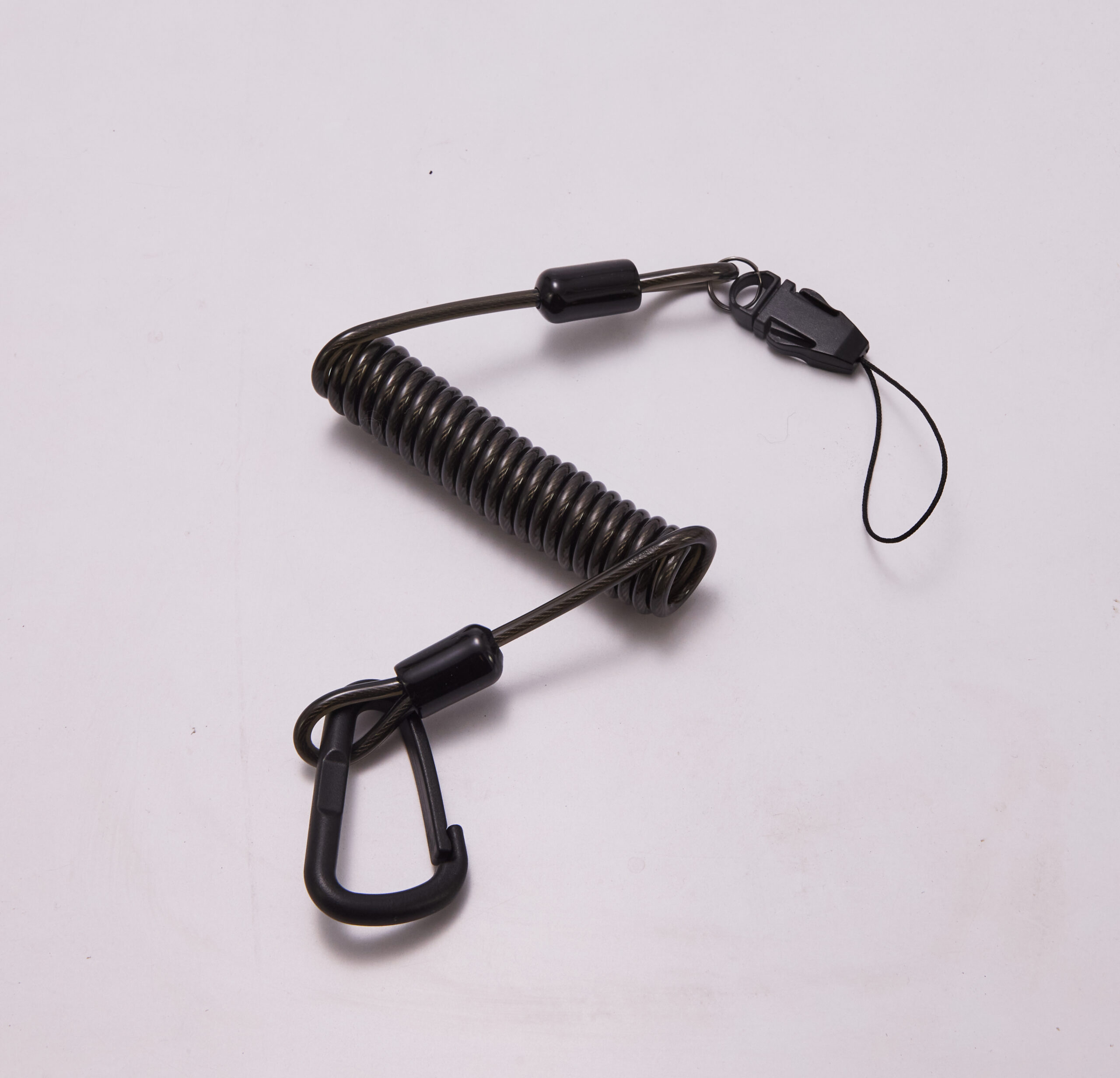

  • Tether Coil

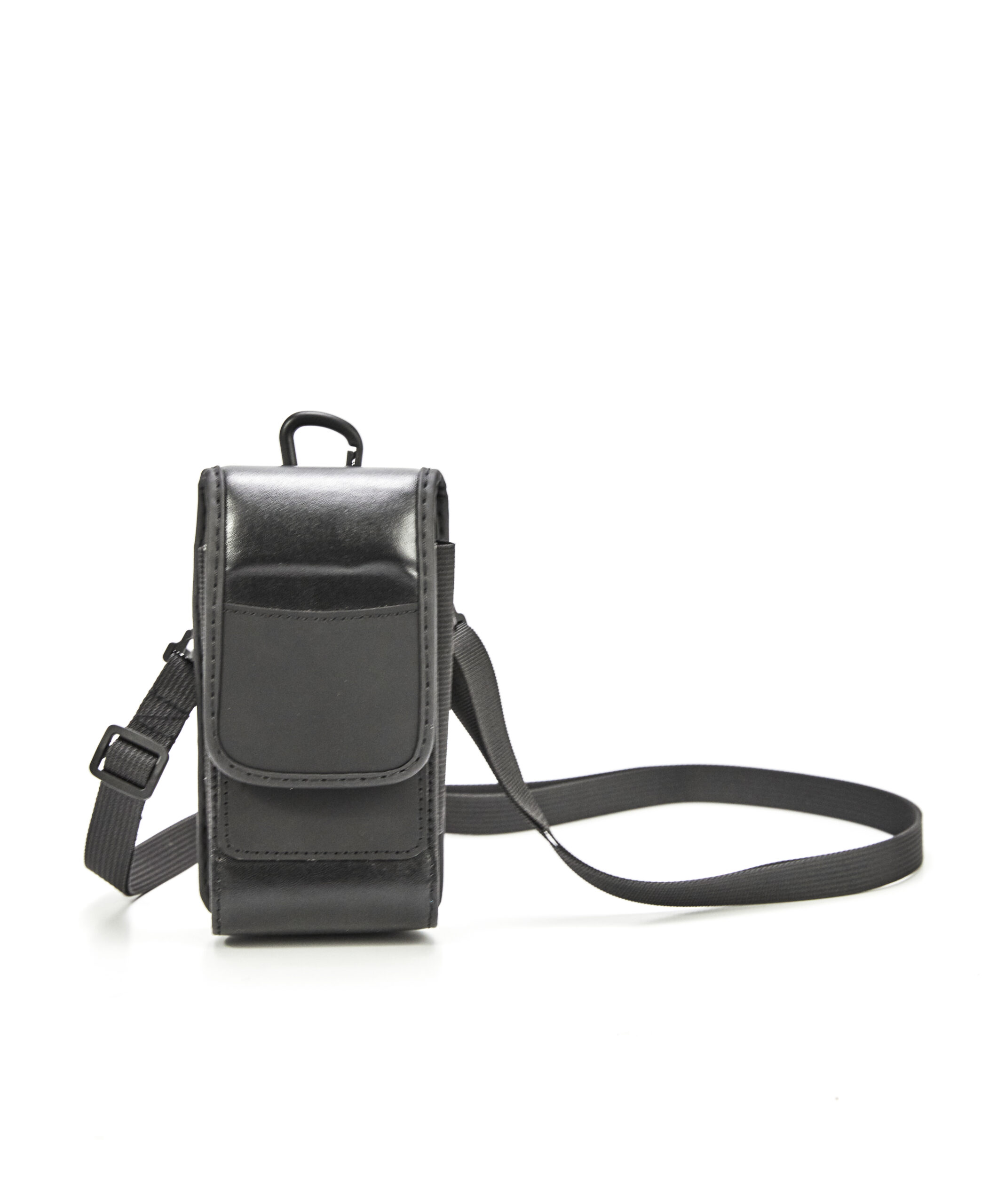

  • Carry Pouch
